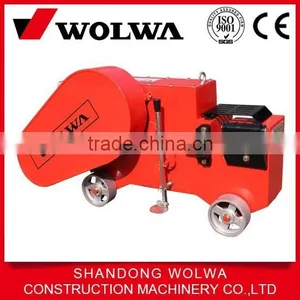

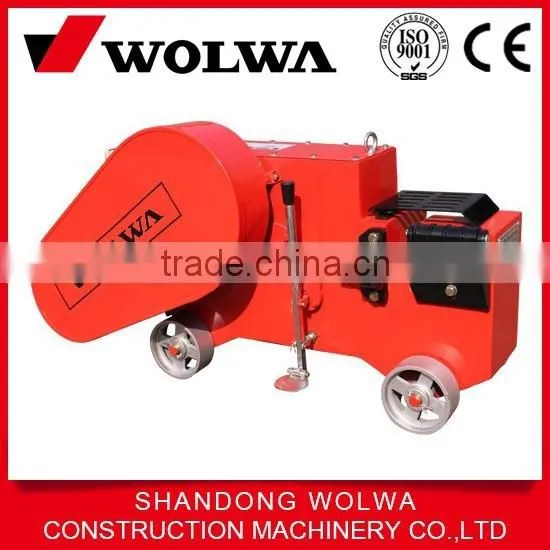

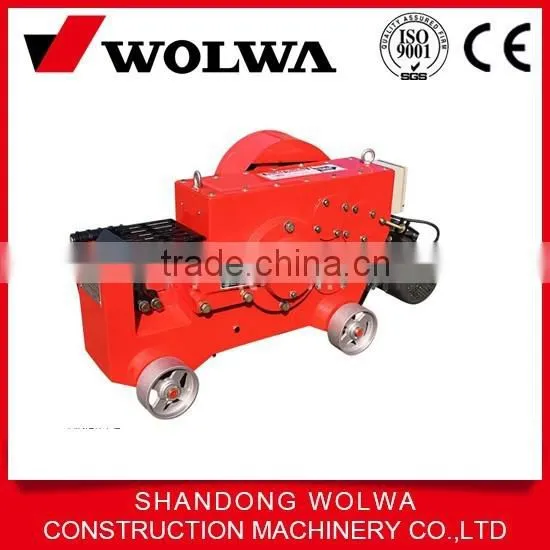

New Construction Machinery GQ40 steel bar cutting machine
- 1000 Set / Sets per Month
- qingdao
- 1600 ton Heavy Duty Hydraulic Used Car Body Cutting Gantry Shear Machine OEM Accecpted
- 1600 Ton Heavy Duty Hydraulic Used Car Shell Gantry Type Shear Machine OEM Available
- 4axis 5axis Large size and thickness(0-40mm) cnc plasma cutting machine
- Automatic cnc plasma cutting machine gate cnc router 120a/200a
- Fully automatic 20mm plasma cutting machine custom size high quality
- 200mm pipe table axe for plasma metal cutting machine spare parts in weifang
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | WOLWA |
Model Number: | GQ50 | Voltage: | 50hz/380v/3phase | Rated Power: | 4 kw |
Dimension(L*W*H): | 1420*530*850 mm | Weight: | 550kg | Certification: | iso ce |
Warranty: | half year | After-sales Service Provided: | Overseas third-party support available |
Product Description
Our products range include portable rebar cutting machine: GQ40, GQ50, GQ60
GQ50 reinforced steel bar cutter, rebar cutter, manual steel bar cutter
Main Technical Parameters for steel bar cutter

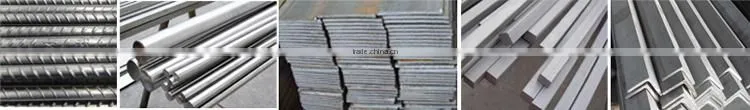

This machine is efficient for cutting off steel bar products on building construction ,such as ordinary carbon steel , cold and hot round steel , screw thread steel ,flat steel,angle steel and square steel . ( need to make knife) it’s made of high steel knife seat and connecting shaft ,high speed international standard motor and firm reinforcing covering. It can cut machine automaticly .It’s with advanced design ,operation easy, safe reliable, saving labor.
Main technical parameters:
Diameter of cut steel bar Plain Carbon steel: ≤diameter 50mm
II-grade deformed steel bar: ≤diameter42mm
Frequency of shock cutting: 28times/min
Motor power: 4kw
Voltage: 380V
Rotation speed of motor: 2880r/min
Total weight: 530kg
Dimension: 1420×460×840(mm)
Warm Note
In order to prolong service life of the equipment and reduce the cost, please read the instruction manual carefully before operation and maintain the equipment according to signs. Change the OEM gear oil after the first use of 500 hours, then add the same grade gear oil.
