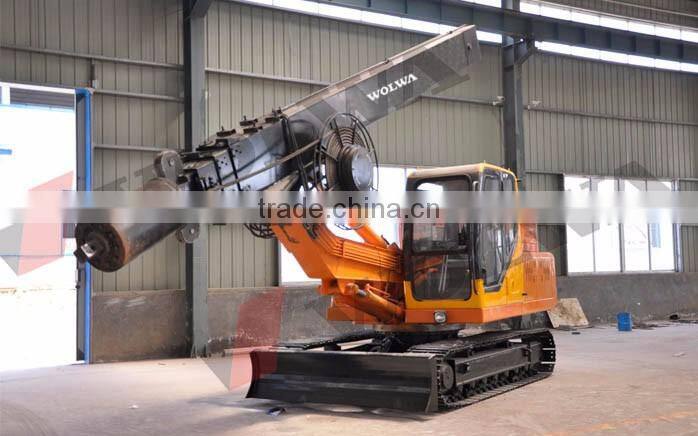

Help Center1400mm Diameter and 20 Meter Depth Bore Pile Machine for Sale
Related Products
-
Hot Sale GNXW525 Crawler Rotary Drilling RigUS$ 10,000 - 68,000MOQ: 1 Piece -
13 Meter Drill Depth Crawler Drill Rig Machine With Cheap Price for SaleUS$ 20,000 - 25,000MOQ: 1 Set
-
Wheel Type Drill Rig Machine With Drill Depth 13 MeterUS$ 20,000 - 25,000MOQ: 1 Set
-
360 Degree Wheel Type Soil Drill Rig Machine on SaleUS$ 20,000 - 25,000MOQ: 1 Set
-
High Quality Wheel Drilling Machine for Drill Soil HoleUS$ 20,000 - 25,000MOQ: 1 Set
GNDZ360 crawler long screw pile driver is a power head to drive the drill bit to drill into underground hole pile driving equipment. Come hole operation is mainly suitable for building foundation engineering construction, the cast-in-situ piles, continuous wall, foundation reinforcement is widely used in many kinds of foundation construction.
Product performance
1. The folding mast structure, simple structure, good durability, the machine has good stability, save cost and make the maintenance more convenient.
2. Use the guide frame structure, guarantee the verticality of drill pipe and the ground, more convenient construction, improve the efficiency of the construction, increased security.
3. The power head original patent structure design is reasonable, lubrication, reliable and powerful, cost savings, and not easy to damage, easy to maintenance.
4. The main winding: adopt imported hydraulic motor, responsive, can use free down, speed can reach 82 m/min, greatly improve the efficiency of construction. The primary winding is placed in operator right, make the operator can observe to the working condition of main winding, avoid disorderly rope phenomena caused by other factors.
Name | (Unit) | (Date) |
(GNXW 135 rotary drilling rig) | ||
(Working mode) | / | / |
(Max.Drilling Diameter ) | mm | 1200 |
(Max.Drilling Depth) | m | 13 |
(Dimension) | m | 8.5×2.3×3.1 |
(Overall Drilling Weight) | t | 12.6 |
(Rotary Drive Max.output torque) | kn.m | 26000 |
(Rotary Drive Rotary speed) | r/min | 20-40 |
(Rotary table slewing angle) |
| 360 degree |
(Max.traveling speed) | km/h | 2.6
|
(Max.grade ability) | % | 25 |
(Engine Model) | / | TURBO ENGINE 6105 |
(Engine power) | kw | 145 |
(Track width) | mm | 400 |
GNDZ360 crawler rotary drilling rig | |||
model | GNDZ360-6 | GNDZ360-8 | GNDZ360-10 |
Rotary angle(°) | 360 | 360 | 360 |
Max hole diameter(mm) | 300-800 | 300-800 | 300-800 |
Max hole depth(m) | 11.5 | 15.5 | 19 |
Stud height(m) | 8.45 | 10.45 | 12.45 |
The rod length(mm) | 6950 | 8950 | 10950 |
wheelbase(mm) | 2450 | 4200 | 4200 |
Wheel distance(mm) | 1700 | 1840 | 1840 |
Engine power(kw) | 59 | 83 | 83 |
Weight (t) | 6.5 | ||
Aux power(t/kw) | 2/7.5 | 3/11 | 3/11 |
Pump motor power(kw) | 7.5 | 11 | 11 |
climbing(°) | 25 | 25 | 25 |
Speed (km/h) | 30 | 40 | 40 |
Drive model | Hydraulic turning oil brake | Hydraulic turning,air brake | Hydraulic turning,air brake |
WOLWA GROUP was established in 2005,which is a advanced technology equipment manufacturer.Its products include construction machinery,rotary drilling rig,wheel excavator,truck crane,road compactor,forklift,dumper truck,loader,concrete mixer,ect.
We have 5 subsidiaries , include Wolwa construction machinery company,Dorson hydraulic component company, Guoneng structure part company,Wolwa pipe company,Jinsheng coal company.
The capital of WOLWA GROUP exceeds RMB 2.5 billion.More than 800000 square meters international advanced workshopand more than 8000 square meters technology research center, produce more than 10000 complete machines and 20000 hydraulic components per year.
Our machine pass trough ISO,CE,SGS certification, advanced production technical,imported production machine,
guarantee quality,customer is satisfied with our quality and service.
