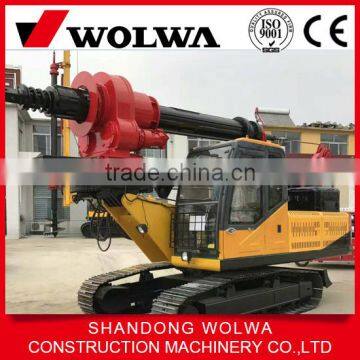

Help CenterWheel and Crawler Type Deep Hole Drilling Machine
Related Products
-
Wheel Type Soil Auger Machine Soil Drilling Rig MachineUS$ 20,000 - 25,000MOQ: 1 Set -
Hot Sale Crawler Long Spiral Piling Machine GNDZ360 11TUS$ 10,000 - 68,000MOQ: 1 Piece
-
Hot Sale GNLW180 Wheel Rotary Drilling RigUS$ 10,000 - 68,000MOQ: 1 Piece
-
Hot Sale GNLW360 Friction Rod Rotary Drilling RigUS$ 10,000 - 68,000MOQ: 1 Piece
-
Hot Sale GNLW360 Wheel Rotary Drilling RigUS$ 10,000 - 68,000MOQ: 1 Piece
PECIFICATION
HOLE DIAMETER :600-1600mm
HOLE DEPTH :20-28m
OVERALL SIZE:10.5*2.6*3.5m
MACHINE WEIGHT:32000kg
ENGINE MODEL :YUNNIE6105/CUMMINS
POWER FORCE:60KN.m
TURENING TYPE : CYLINDER PRESS
ROTATION ANGLE:360°
FUNCTIO1. The folding mast structure, simple structure, good durability, the machine has good stability, save cost and make the maintenance more convenient.
2. Use the guide frame structure, guarantee the verticality of drill pipe and the ground, more convenient construction, improve the efficiency of the construction, increased security.
3. The power head original patent structure design is reasonable, lubrication, reliable and powerful, cost savings, and not easy to damage, easy to maintenance.
4. The main winding: adopt imported hydraulic motor, responsive, can use free down, speed can reach 82 m/min, greatly improve the efficiency of construction. The primary winding is placed in operator right, make the operator can observe to the working condition of main winding, avoid disorderly rope phenomena caused by other factor
Specification | |||
Hole diameter |
Mm |
600-1600 |
|
Max hole depth |
M |
28 |
|
Size |
Working |
mm |
13200*3200*3325 |
Transport |
mm |
8200*3200*3325 |
|
Weight |
kg |
36000 |
|
Engine |
Model |
6105 |
|
Power |
kw/rpm |
110/2100 |
|
Type |
Turbo |
||
Power head |
Max force |
kn-m |
80 |
Speed |
r/min |
1-22 |
|
Cylinder |
Max push power |
kn |
150 |
Max lifting force |
kn |
100 |
|
max route |
m |
3 |
|
Main winch |
Max winch force |
kn |
120 |
Max winch speed |
m/min |
70 |
|
Steel wire Rope diameter |
mm |
24 |
|
Assistant winch |
Force |
kn |
60 |
Speed |
m/min |
50 |
|
Steel wire Rope diameter |
mm |
18 |
|
Angle of the mast |
Left right |
° |
±3 |
Front back |
° |
0-93 |
|
Chassis |
Max walking speed |
km/h |
3 |
Min clearance |
Mm |
460 |
|
Width crawler |
mm |
800 |
|
