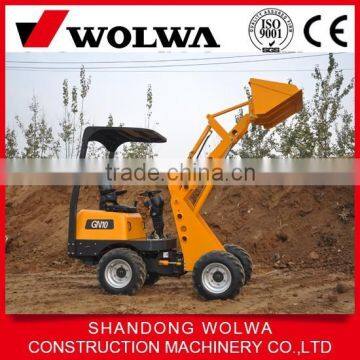

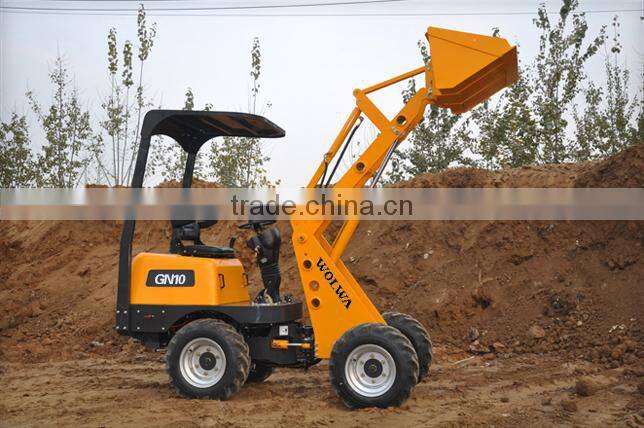

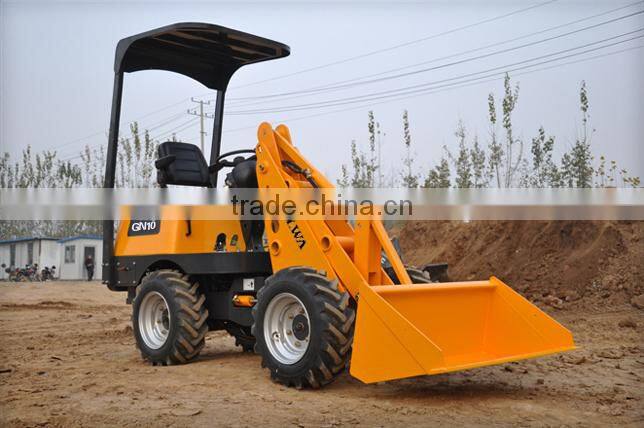

high quality 1T mini skid steer loader with
best price
feature:
1.Easy to operate with only one control running and one handler control working.
2.Four-wheel drive enables walk in a variety of terrain. Such as mud,sand,snow,etc.
3.Hydraulic control gets your job done efficiently and productively.
4.Easy and comfortable control, due to the one control running and handler control working.
5.High performance movement and excellent traction. Four-wheel drive
Enables walk in a variety of terrain.such as mud,sand,snow,steep slopes,ect
6.World-classes Diesel engine,bigger power,more performance.
7.It is not only a mini loader with multi-function,but also a high quality dumper.Higher ground clearance,2100mm,highest dumping height.
| GN10L main parameter | ||
| No. | Item | Parameter |
| 1 | Operating load | 1000KG |
| 2 | Total weight | 1100KG |
| 3 | Engine | 3M78 China |
| 4 | Rotating speed | 3000r/min |
| 5 | Engine type | Water cooled three cylinder |
| 6 | Power | 16KW |
| 7 | Speed | 1-10 Km/h |
| 8 | Dumping angle | 45° |
| 9 | Turning angle | ±30 |
| 10 | Climbing angle | 45° |
| 11 | Drive mode | 4WD |
| 12 | Brake | Rear wheel hub brake |
| 13 | Tire | 10.00/75-15.3 |
| 14 | Hydraulic pump flow | 60L/min |
| 15 | Pressure | 16MP |
| 16 | Fuel tank volume | 15.3L |
| 17 | Hydraulic oil tank volume | 30L |
| 18 | Battery | 36AH |
| 19 | Electric current | 36A |
| 20 | Pressure | 12V |
| 21 | Noise | <=107dB(A) |

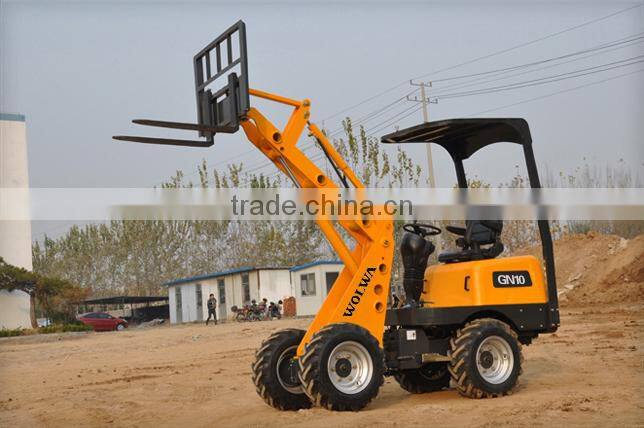

with attachment
our Guarantee:
Service:
1. Excellent after-sale service teams
2. One year guarantee for the whole machine
3. 24hours service by calling or email
4. General inspection on fixing before packing
5. Oversea service center acceptable
Quality control:
1. All products must go through checks before manufacturing process
2. Every production line is equipped in an individual QC to ensure well-done production.
contact:
skype:wolwahannah
QQ:2745940132
TEL:86-15205378664
