Wheeled Skid Steer Loader GN850

Wheeled Skid Steer Loader GN850 photo-1
US$ 5,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
WOLWA
Model Number:
GN850
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name WOLWA
Model Number GN850
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 3300*1678*3660
Rated Load 2840kg
Certification ce iso
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas



wheeled skid steer loader GN850





skip steer loader GN850(push sand in shipyard)introduction

GN850 skip steer loader with high speed , save operation time.place sliding steering,small steering radius.Easy to operate,Very suitable for port clearance, clear sand, clear powder,civicism , highway maintenance and so on.The loader is multiple use,you can loading,digging, furrowing, milling planer, push the snow, bulldozing, fork, cleaning, hole, broken, wood and other functions with different tools.Mainly used in narrow space,Job content change frequent occasions,At the same time for large engineering machinery construction machinery ancillary equipment used.Especially suitable for such as urban infrastructure, roads or construction sites, workshop, warehouse, dock, the ship deck cabin even narrow space in the homework.And for large engineering machinery logistics, land clearing and the project finish Such as homework.



skip steer loader GN850(push sand in shipyard)characteristic

(1)Tiny body. Height is only 1.48 meters, can enter various low environment
(2)Powerful, 45 kw engine, can meet various requirements
(3)Multi-function. Can replace a variety of professional job attachment, realize shovel, forklift, cleaning, and in addition to the snow and ice, and other operations
(4)High efficiency and in situ 360 ° steering. Artificial 20-30 people per hour deoxidization efficiency 4 hours work
(5)Good cost performance and quick return of investment. Every day, save the labor cost is about 2000 yuan
(6)Three years service after sale  , regular tracking service, lifelong maintenance, service guaranteed





skip steer loader GN850(push sand in shipyard)technical parameters

Item GN850
Max working height 3660mm
Max pin height 2840mm
Max dumping height 2220mm
Max dumping distance 300mm
Wheel base 1044mm
Total height 1482mm
Ground clearance 135mm
Overall length without bucket 2600mm
Total length 3300mm
Bucket width 1720mm
Total width 1678mm
Departure angle 16°
Dumping Angel at max height 51°
Rollback of bucket on ground 29°
Turn radius 2090mm
Engine
model Euro||engine
rated power 45
rotating speed 2500r/min
Noise
inside of cab <=92
outside of cab 106
Hydraulic system
pressure 14.2MPa
operating load 850kg
bucket capacity 0.39m^3
travel speed 0-9.6km/h
operating weight 2840kg
tyre model 10.0-16.5

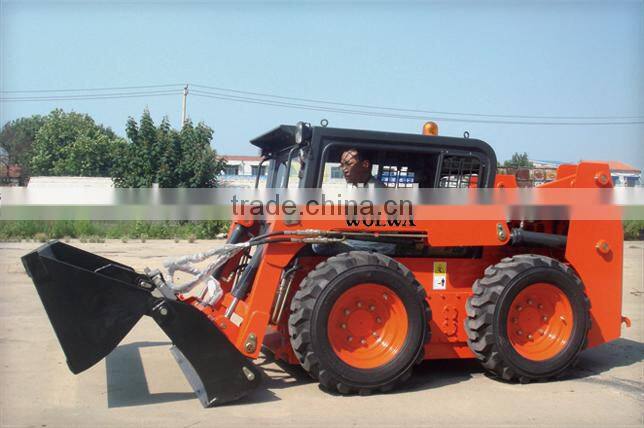

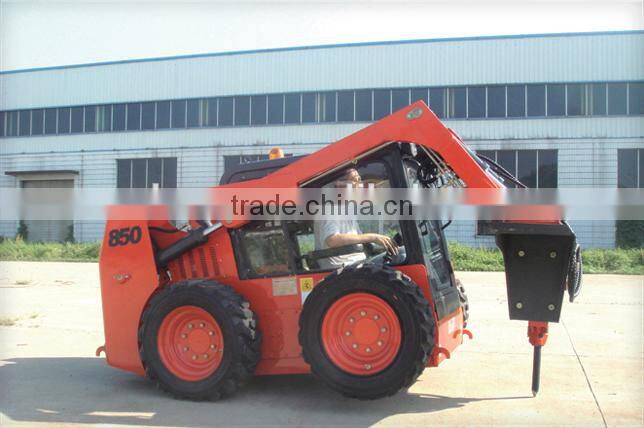

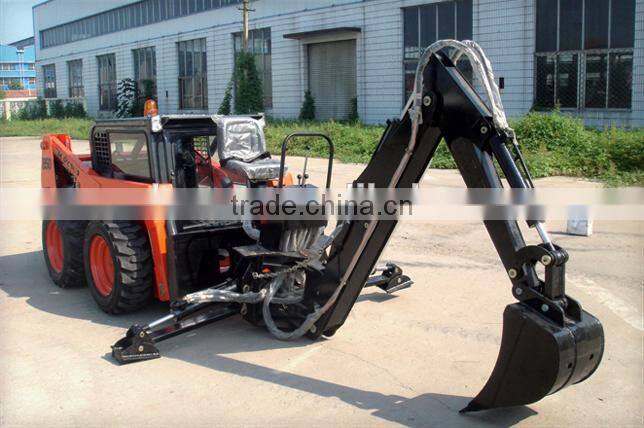

skip steer loader GN850(push sand in shipyard)photos

wheeled skid steer loader GN850wheeled skid steer loader GN850wheeled skid steer loader GN850





  wheeled skid steer loader GN850



wheeled skid steer loader GN850



wheeled skid steer loader GN850



wheeled skid steer loader GN850



wheeled skid steer loader GN850
