China Made GN380 Mini Skid Steer Loader, Multifunctional Crawler and Wheel Loader

China Made GN380 Mini Skid Steer Loader, Multifunctional Crawler and Wheel Loader thumbnail-1
China Made GN380 Mini Skid Steer Loader, Multifunctional Crawler and Wheel Loader thumbnail-2
China Made GN380 Mini Skid Steer Loader, Multifunctional Crawler and Wheel Loader thumbnail-3
China Made GN380 Mini Skid Steer Loader, Multifunctional Crawler and Wheel Loader thumbnail-4
China Made GN380 Mini Skid Steer Loader, Multifunctional Crawler and Wheel Loader thumbnail-5
China Made GN380 Mini Skid Steer Loader, Multifunctional Crawler and Wheel Loader thumbnail-6
China Made GN380 Mini Skid Steer Loader, Multifunctional Crawler and Wheel Loader photo-1
China Made GN380 Mini Skid Steer Loader, Multifunctional Crawler and Wheel Loader photo-2
China Made GN380 Mini Skid Steer Loader, Multifunctional Crawler and Wheel Loader photo-3
China Made GN380 Mini Skid Steer Loader, Multifunctional Crawler and Wheel Loader photo-4

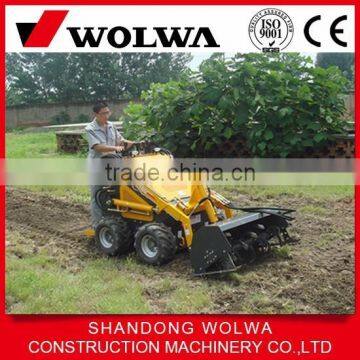

China Made GN380 Mini Skid Steer Loader, Multifunctional Crawler and Wheel Loader photo-5
China Made GN380 Mini Skid Steer Loader, Multifunctional Crawler and Wheel Loader photo-6
US$ 500 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
Wolwa
Model Number:
GN380
Contact Supplier Request Quote Chat Now
Shandong Wolwa Construction Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name Wolwa
Model Number GN380
Place of Origin Shandong, China
Type Skid Steer Loader
Moving Type Crawler Loader
Dimension(Long * Breadth * High) 2206*1060*1218mm
Rated Load 200kg
Certification CE & ISO9001:2008
Warranty 1year
After-sales Service Provided Overseas third-party support available

Product Description

China Made GN380 Mini Skid Steer Loader, Multifunctional Crawler and Wheel Loader

Small loader GN380 is a mechanical equipment with many uses. The fuselage is narrow, easy

handling,can easily and quickly hook up a variety of different functions to realize all kinds of work

widely used in

park, courtyard, lawn, garden or any other place in the environment.

Product feature:

1, Small skid loader GN380 easy to operate

Double handle finish walking, lift and skip movements

Piston motor smoothly

Four-wheel drive adapt to various environment

Many forms of pedals, let the operation safer and more convenient

Both servo and standard operation mode

2, Small skid loader GN380 easy maintenance

Oil mouth in car in vitro, convenient to replace air filter, oil, filter, spark plug

The guard plate is convenient, the cover can be opened

3, Small skid loader GN380 can be configurated with variety of affix, and is interchangeable

between each model.

4, International famous brand engine, stable and reliable.

5, small  skid loader GN380 many kinds of tires and the track model chosen, more resilient.

6, GN380 mini loader is more narrow, only 800 mm wide. Can through narrow places, and have

big fuel tank and the lifting force.

7, Small skid loader can do much simplified manual labor, improve efficiency

8, Compared with similar products, have a higher lifting height

China Made GN380 Mini Skid Steer Loader, Multifunctional Crawler and Wheel Loader  Parameters

China Made GN380 Mini Skid Steer Loader, Multifunctional Crawler and Wheel Loader

Item

GN380

Crawler

Solid Tire

Ordinary Tire

Widen Tire

Herringbone Tire

Max.Working Height(A)

2128 mm

2115 mm

2155 mm

2155 mm

2143 mm

Max.Pin Height(B)

1869 mm

1856 mm

1896 mm

1896 mm

1884 mm

Max.Dumping Height(C)

1473 mm

1460 mm

1500 mm

1500 mm

1488 mm

Max. Dumping Distance(D)

399 mm

388 mm

348 mm

348 mm

348 mm

Bucket Angle(β)

55°

55°

55°

55°

55°

Bucket Discharge Angle(γ)

30°

30°

30°

30°

30°

Collecting Bucket Angle(θ)

25°

25°

25°

25°

25°

Departure Angle(α)

10°

8°

12°

12°

11°

Total Height(H)

1218 mm

1205 mm

1245 mm

1245 mm

1233 mm

Ground Clearance(F)

105mm

90 mm

130 mm

130 mm

118 mm

Wheelbase(G)

612mm

636 mm

636 mm

636 mm

636 mm

Length Without Bucket(J)

1752 mm

1752 mm

1752 mm

1752 mm

1752 mm

Total Width(W)

1060 mm

1033 mm

1033 mm

1183 mm

1160 mm

Bucket Width(K)

980 mm

980 mm

980 mm

980 mm

980 mm

Total Length(with bucket)(L)

2206 mm

2206 mm

2206 mm

2206 mm

2206 mm

Front Turning Radius (R)

1317 mm

1307 mm

1307 mm

1307 mm

1307 mm

Item

GN380

Engine

Rated Power(KW)

15.435KW(21HP)

Turning Speed(rpm)

3600

Noise(Db)

≤95

Hydraulic System

System Pressure(Mpa)

17

Working Hour(s)

Lift

Turn

Down

4.27

1.34

3.31

Parameter



metric



Loading Weight

200 Kg



Bucket Volume

0.15 m3



Max.Pulling Force

375 Kg



Speed

0-5.5 Km/h



Operating Weight

Solid Tire

940 Kg



Ordinary Tire

886 Kg



Widen Tire

850 Kg



Crawler

1068kg



Herringbone Tire

890kg



Tire Model

Solid Tire

16×6-8

Ordinary Tire

5.00-8

Widen Tire

KT-302  18*9.5-8  6P/TL

People Shape Tire

18*6.5-8

Tire

Solid Tire

4.33R-8

Ordinary Tire

3.50D

Widen Tire

8*6.5



Packaging & Shipping

China Made GN380 Mini Skid Steer Loader, Multifunctional Crawler and Wheel Loader

Company Information

Shandong Wolwa Construction Machinery Co., Ltd, a corporate enterprise of Wolwa Group, is

a professional hydraulic excavator manufacturer integrating scientific research, production

and sales. Wolwa Group Co., Ltd has the total assets of 2.5 billion RMB. It has over 80,000

square meters of production workshop with international advanced level and 8,000 square

meters of R & D center. It has the production capacity with an annual output of 10,000

sets of construction machinery and 20,000 sets of hydraulic parts. The company has the

honors of National High-tech Enterprise, he Leader of Local SMES and Shandong Top 100

Enterprise.

Our main leading products are DLS865-9A  DLS880-9A  DLS890-9A  DLS100-9A Wheeled

Hydraulic Excavator, DLS880-9A  DLS890-9A Wheeled Sugarcane Wood Loader,  DLS118-9A

Wheeled Hydraulic Stacker, DLS865-9B  DLS865-10B  DLS880-9B DLS100-9B  DLS130-9  DLS160-9 Crawler Hydraulic Excavator etc.

We also specializes in the sales of other construction machinery and agricultural equipment

such as desiccated underground crusher, welding workstation, truck cranes,wheel loaders,

skid steer loaders, concrete mixer trucks, forklifts, road rollers, harvesters, tractors, steel bar

processing machinery and so on.

Our company has passed the ISO9001:2008 authentication, and got European UnionCE

certificate.Our products are exported to many countries such as Russia, Belarus, Iran,

Vietnam, Five Central Asian Countries, Africa and other countries all over the world.
