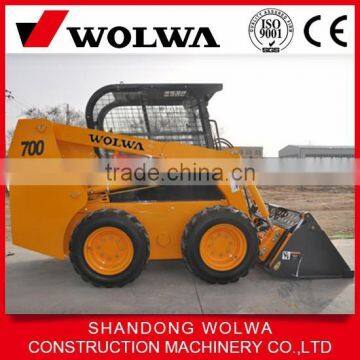

Wolwa GN700 Mini Backhoe Skid Steer Loader With Many Function

Wolwa GN700 Mini Backhoe Skid Steer Loader With Many Function thumbnail-1
Wolwa GN700 Mini Backhoe Skid Steer Loader With Many Function thumbnail-2
Wolwa GN700 Mini Backhoe Skid Steer Loader With Many Function thumbnail-3
Wolwa GN700 Mini Backhoe Skid Steer Loader With Many Function thumbnail-4
Wolwa GN700 Mini Backhoe Skid Steer Loader With Many Function thumbnail-5
Wolwa GN700 Mini Backhoe Skid Steer Loader With Many Function photo-1
Wolwa GN700 Mini Backhoe Skid Steer Loader With Many Function photo-2
Wolwa GN700 Mini Backhoe Skid Steer Loader With Many Function photo-3
Wolwa GN700 Mini Backhoe Skid Steer Loader With Many Function photo-4
Wolwa GN700 Mini Backhoe Skid Steer Loader With Many Function photo-5
US$ 500 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
Wolwa
Model Number:
GN700
Contact Supplier Request Quote Chat Now
Shandong Wolwa Construction Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name Wolwa
Model Number GN700
Place of Origin Shandong, China
Type Skid Steer Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 3400*1665*1979mm
Rated Load 700kg
Certification CE & ISO9001:2008
Warranty 1year
After-sales Service Provided Overseas third-party support available

Product Description

Wolwa GN700 Mini Backhoe Skid Steer Loader with Many Function

1,Advanced and efficient transmission output type, duplex pump connect motor  directly

2,integral structure frame, more strength higher stable , rear radiator, paratactic type cooling

     effect is batter.

3,With domestic famous brand engine, powerful drive energy conservation and environmental

     protection

4,Adopt American Danfoss hydraulic system, the hole hydraulic system is stable and reliable

5,Work system adopts pedal operation,drive system USES double hands according with

     international operation habit

6,Cab with large angle tip-back design ,more maintenance space,back cover ,upper canopy could

     open up.  Maintenance more convenient,A person easily done

7,high strength cab meet ROPS/FOPS international safety standard , driving space bigger and

     more comfortable

8,Adopting integrated control panel design, the overall performance parameters of the be clear at

     a glance, make sure that you can comprehensive mastery the machine when operating

9,Hydraulic operating system, the use of electronic self-locking interlock design, reduce the mistake

     and  operation more safer

10,Dual accelerator  control, convenient manual accelerator , feet  accelerator is more suitable for

       your daily operation habit

11,Adopt the internationally  quick change device can be quick and convenient replacement of all

       sorts of affix, hydraulic quick change connectors can matching with most manufacturers  affix or

       body

12,Configurable  multiple appendage use

13,Using radial lifting work arm,  higher efficiency

Wolwa GN700 Mini Backhoe Skid Steer Loader with Many Function  technical parameters

Wolwa GN700 Mini Backhoe Skid Steer Loader with Many Function



GN700 Outline Dimension



GN700 Parameters

Item

Size



Item



Max. Working Height(A)

3490mm



Rate load

700kg

Max. Pin Height(B)

3028mm



Total weight

2860kg

Max. Level Bucket Height(C)

2814mm



Engine

498BPG

Max. Dumping Height(D)

2266mm



Rotating Speed

2500r/min

Max. Dumping Distance(F)

437mm



Engine Type

4 cylinder,water cool,4ahead reach

Wheelbase(G)

1044mm



Power

45kw

Total Height(H)

1979mm



Standard Fuel Consumption

≤240g/kw·h

Ground Clearance(J)

196mm



Maximum Torque Fuel Consumption

≤238g/kw·h

Length Without Bucket(K)

2621mm



Noise

≤ 117db(A)

Total Length(L)

3400mm



Generator Power



500w

Bucket Width(M)

1720mm



Voltage

12v

Total Width(W)

1665mm



Battery

105ah

Wheel-span(P)

1425mm



Speed

0-10 km/h

Tire Thickness(N)

240mm



Drive type

Static pressure four-wheel drive

Departure Angle(α)

19°



Tire

10-16.5

Dumping Angle(β)

41°



Hydraulic Pump Flow

110L/min

Rollback of Bucket on Ground(θ)

18°



Hydraulic pump flow



50L/min

Mini Turning Radius(R)

2056mm



Pressure

15mp









Fuel Tank Capacity

103L









Lube Tank Capacity

63L









Double Piston Pump

SAUER



Packaging & Shipping

Wolwa GN700 Mini Backhoe Skid Steer Loader with Many Function

Company Information

Shandong Wolwa Construction Machinery Co., Ltd, a corporate enterprise of Wolwa Group, is

a professional hydraulic excavator manufacturer integrating scientific research, production

and sales. Wolwa Group Co., Ltd has the total assets of 2.5 billion RMB. It has over 80,000

square meters of production workshop with international advanced level and 8,000 square

meters of R & D center. It has the production capacity with an annual output of 10,000

sets of construction machinery and 20,000 sets of hydraulic parts. The company has the

honors of National High-tech Enterprise, he Leader of Local SMES and Shandong Top 100

Enterprise.

Our main leading products are DLS865-9A  DLS880-9A  DLS890-9A  DLS100-9A Wheeled

Hydraulic Excavator, DLS880-9A  DLS890-9A Wheeled Sugarcane Wood Loader,  DLS118-9A

Wheeled Hydraulic Stacker, DLS865-9B  DLS865-10B  DLS880-9B DLS100-9B  DLS130-9  DLS160-9 Crawler Hydraulic Excavator etc.

We also specializes in the sales of other construction machinery and agricultural equipment

such as desiccated underground crusher, welding workstation, truck cranes,wheel loaders,

skid steer loaders, concrete mixer trucks, forklifts, road rollers, harvesters, tractors, steel bar

processing machinery and so on.

Our company has passed the ISO9001:2008 authentication, and got European UnionCE

certificate.Our products are exported to many countries such as Russia, Belarus, Iran,

Vietnam, Five Central Asian Countries, Africa and other countries all over the world.
