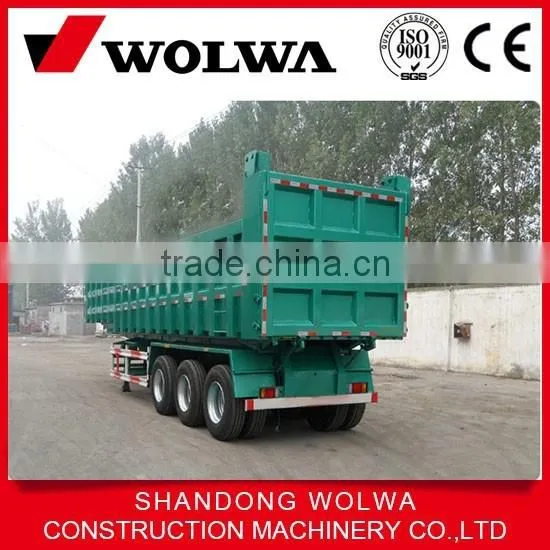

Cheap Rear Dump Semi Trailer for Sale

Name: Cheap Rear Dump Semi Trailer for Sale
Brand: wolwa
SKU: 140741054
Availability: InStock

US$ 10,000 - 20,000 MOQ: 1 Set

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Shandong Wolwa Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification CE

Size 11280*2495*3970mm

Max Payload 80ton

Place of Origin Shandong, China

Brand Name wolwa

Model Number rear semi trailer

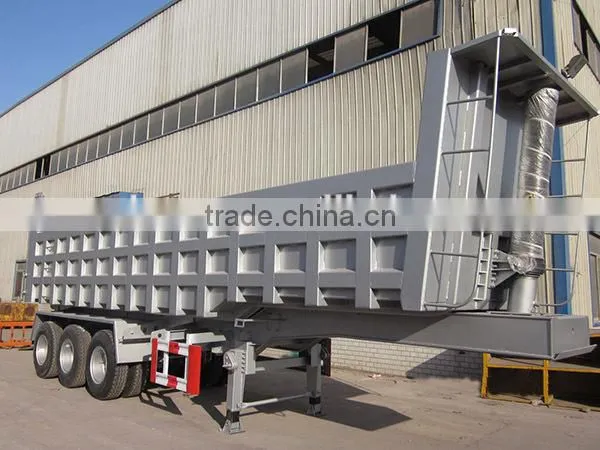

cheap rear dump semi trailer for sale

Product Description

Introduction

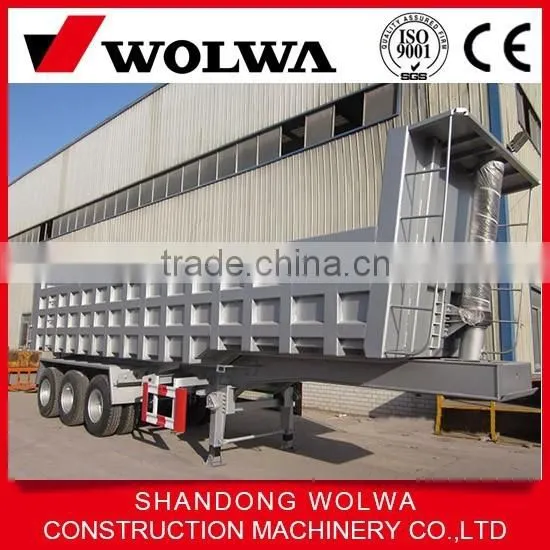

The rear dumping semi trailer is very efficient at transporting and unloading coals, limestone, sands,

and other loose materials in bulk. CAD software is used to optimize the structure of the whole trailer.

FEA method is adopted in design and development of the trailer chassis.

This scientific semi trailer design allows the trailer to have reduced weight while carrying the same load

as an ordinary rear dumping unit. The dumping box is made of high-strength, cold rolled corrugated plates. I

t features a frameless construction, and offers choices of heights

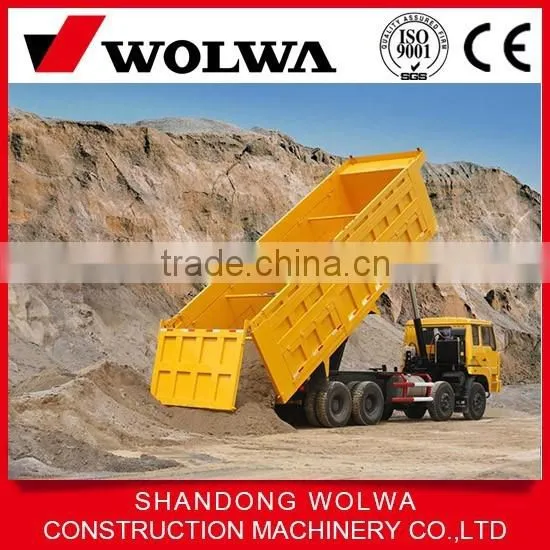

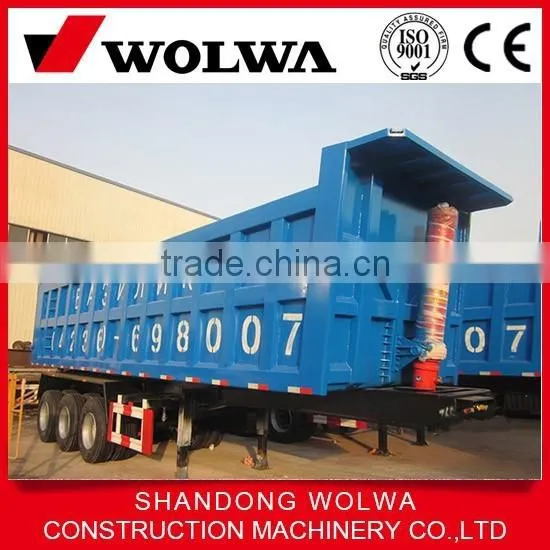

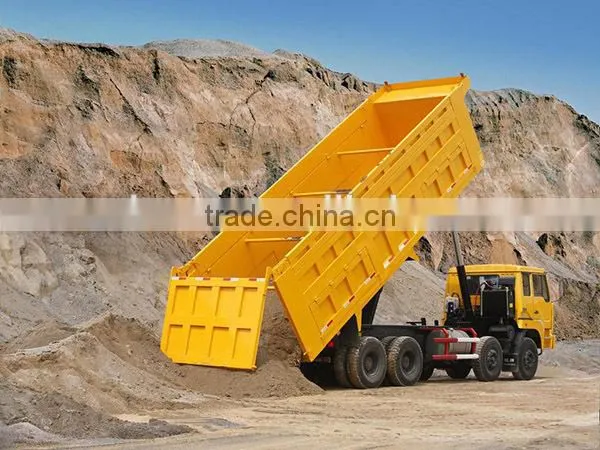

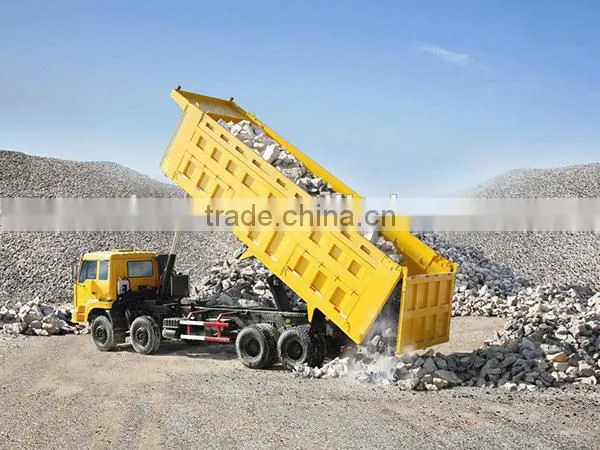

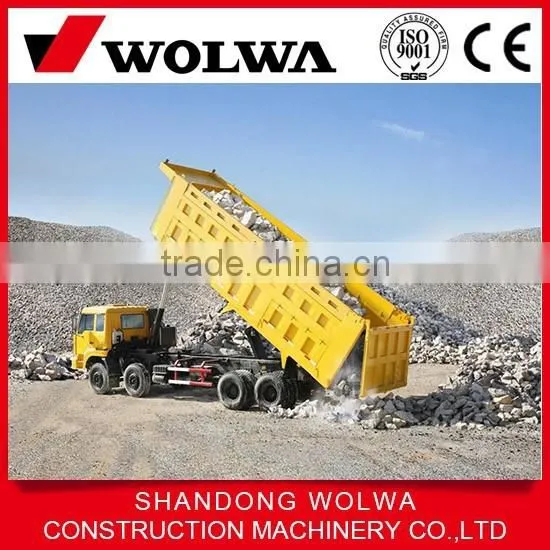

and loading space size. Multiple hydraulic cylinders are used to jack up the box so that it would tilt backwards

to dump the materials being carried.

Additionally, side dump cylinders are available to allow the trailer to carry more loads. Customers also can choose

either left- or right-side dumping configuration.

Our rear dumper trailer can be custom designed according to customer specific requirements. Please tell us the kind

of materials to be transported and we can then design a suitable model to meet your need.

Semi Trailer Dimension	11280×2495×3970mm (Outside Dimension)10500×2300×1700mm (Inside Dimension)
Tare Weight	About 15600kg
Total Volume (m3)	37 m³ or less than 80tons
Side wall thickness (mm )	6mm Q235 steel
Bottom plate thickness(mm)	8mm /Q235 steel

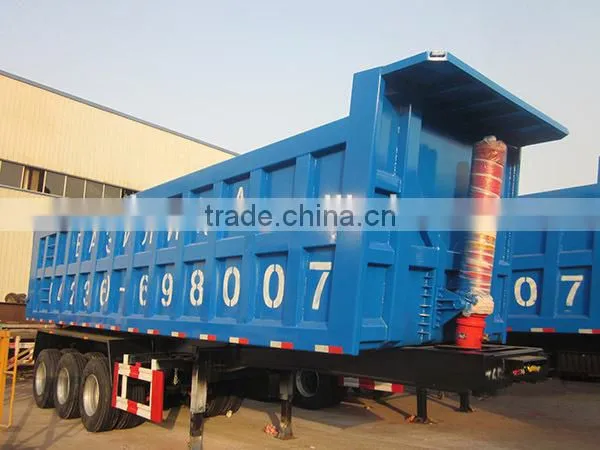

Lifting system	Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder
Chassis
Main Beams	Height:500mm Upper plate: 16mm Middle plate: 8mm (2-in-1 or 3-in-1 plate) Lower plate: 18mm Material :Q345B steel
Axle	3 axles, FUWA/HUAJING brand 16tons per axle
Landing Gear	JOST (D200T) or Chinese brand 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/ America type /
Leaf Spring	90(W)mm×13(Thickness)mm×10 layers
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber; 45L air tank
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Various tire brands are available.
ABS	Optional
Painting	Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
Accessories	One standard tool box

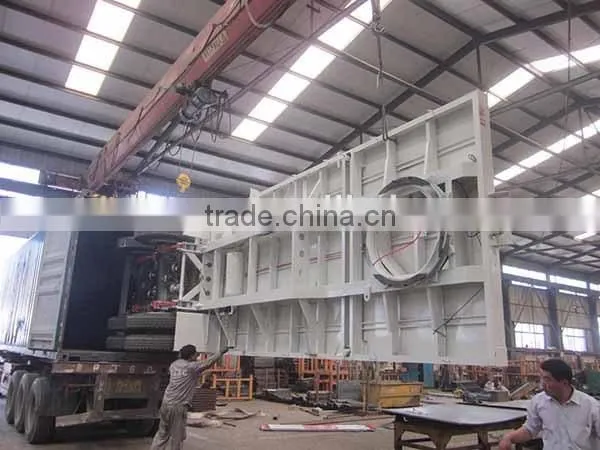

Shipping Terms	By Bulk Cargo or RORO The trailer size can be designed according to your special requirements. You can choose a 6×4 model truck for use with your rear dump semi
