Home > Transportation > Trailer > Truck Trailer > Cheap Drop Side Semi Trailer for Sale

Cheap Drop Side Semi Trailer for Sale

Name: Cheap Drop Side Semi Trailer for Sale
Brand: wolwa
SKU: 140741044
Availability: InStock

Cheap Drop Side Semi Trailer for Sale thumbnail-1

Cheap Drop Side Semi Trailer for Sale thumbnail-2

Cheap Drop Side Semi Trailer for Sale thumbnail-3

Cheap Drop Side Semi Trailer for Sale thumbnail-4

Cheap Drop Side Semi Trailer for Sale thumbnail-5

Cheap Drop Side Semi Trailer for Sale photo-1

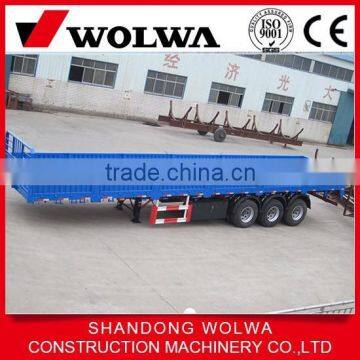

Cheap Drop Side Semi Trailer for Sale photo-2

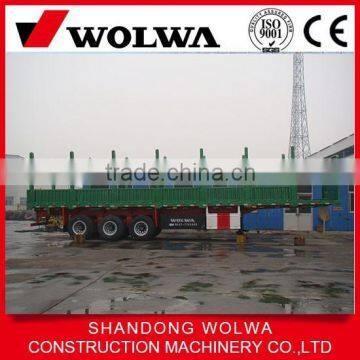

Cheap Drop Side Semi Trailer for Sale photo-3

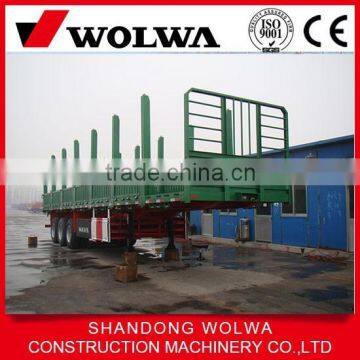

Cheap Drop Side Semi Trailer for Sale photo-4

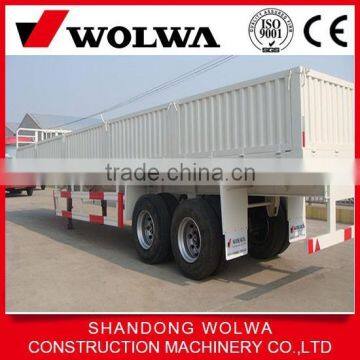

Cheap Drop Side Semi Trailer for Sale photo-5

US$ 10,000 - 20,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Type:

Semi-Trailer

Material:

Steel

Certification:

Contact Supplier Request Quote Chat Now

Shandong Wolwa Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Semi-Trailer

Material Steel

Certification CE

Size 13000mm*2490mm*2860mm

Max Payload 60ton

Place of Origin Shandong, China

Brand Name wolwa

Model Number drop side semi trailer

cheap drop side semi trailer for sale

Introduction

The drop side semi trailer has fence-like steel walls surrounding it on all four sides. The primary use of our drop sider is in the medium- and long-distance

on-road transportation of heavy bulk materials. Upon your request, we can add more twist locks to containers as well as removable posts to the trailer.

You can use our semi trailer to carry timbers, 40inch or 20 inch containers.

Process
Main parts of our drop side trailer are machined by advanced equipment. The vertical beam is a welded structure produced by using a US automatic- tracking

welder through submerged arc welding process. Axles are installed to the semi trailer accurately with a loader. Precise axle track can be achieved thanks to the

distance measuring tool.

All the parts are put through sandblasting process. The trailer body has been subject to pickling andbonderzing to improve the adhesion of paint to the trailer surface.

The assembly parts are first spray painted prior to being assembled.

Transportation
The removable fence-like sides have a height below 80cm. The trailer can put in a 40inch container or, a large break bulk cargo for shipping.

Tare Weight	About 7.6T
Dimension	13000mm×2490mm×2860mm
Loading Capacity (T)	≤ 60 T
Axle	13 T/16T, FUWA /BPW /Huajing Brand
Rim	9.00-22.5 9.75-22.5 (Specially designed for oversea markets.)
Tire	12.00R22.5/ 315 80R22.5 (Specially designed for oversea markets.)
Suspension	Mechanical suspension (German or American Type) or air suspension (Chinese brand or BPW brand) (Specially designed for oversea markets.)
Spring leaf	90(W)mm×13(Thickness)mm×10 Layers or 10mm×12mm×12 layers (Specially designed for oversea markets.)
King pin	JOST brand 2.0 or 3.5inch (bolted or welded type)
Support leg	JOST brand D200T or Chinese brand 28Tons (Double speed)
Main beam	Height: 500mm Upper plate: 14mm Middle Plate: 8mm Bottom Plate is 16mm; Material: Q345B Steel
Side beam	16mm or 18mm steel channel (Material: Q235steel ).
Bottom Platform	3mm-thick checkered plate
Trailer Sides	600mm -1500mm, or box type sides
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand); 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (lifting type or twist Screw type)
Valve	WABCO valve
Light	LED light (specially intended for oversea market )
Voltage	24V
Receptacle	7-pin Socket (for 7 wire harness)
Tool box	1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.)
Semi Trailer Surface Coating	Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.
