High Quality 45ton Container Skeleton Semi Trailer

US$ 1 - 15,000 MOQ: 1 Set

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Size:

12450x2490x1575

Shandong Wolwa Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Size 12450x2490x1575

Max Payload 45000

Place of Origin Shandong, China

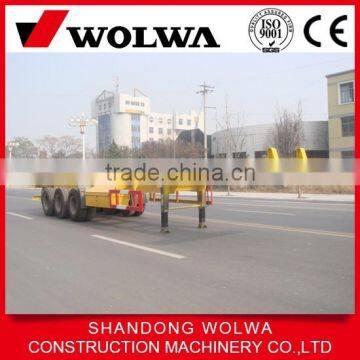

45ton container skeleton semi trailer

Tare Weight	About 7.1T
Dimension	12450mm2490mm1575mm
Loading Capacity (T)	≤ 45 T
Axle	13 T/16T, FUWA /Huajing Brand
Rim	9.00-22.5
Tire	12.00R22.5
Suspension	Mechanical suspension (Germany Type)
Spring leaf	90(W)mm*13(Thickness)mm
King pin	JOST brand 2.0 or 3.5inch bolts type
Support leg	JOST brand D200T
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel .
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 45L air tanks
ABS	Optional
Twist Locks	Twelve pieces (Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.
