High Quality Skeleton Semi Trailer

US$ 1 - 15,000 MOQ: 1 Set

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Size:

12450x2490x1575

Shandong Wolwa Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Size 12450x2490x1575

Max Payload 45000

Place of Origin Shandong, China

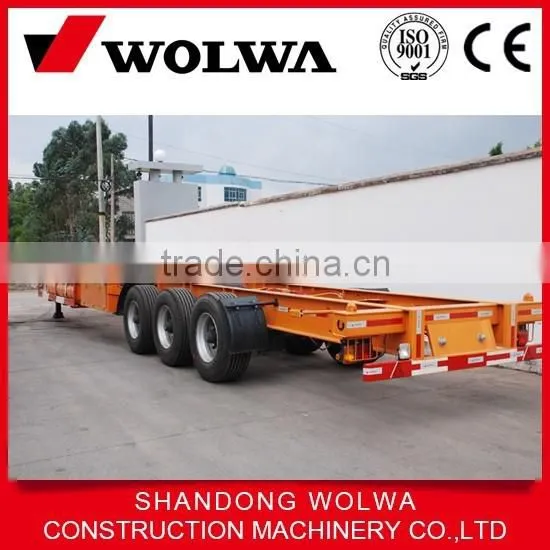

45ton container skeleton semi trailer

specification for container skeleton semi trailer

Tare Weight	About 7.1T
Dimension	12450mm2490mm1575mm
Loading Capacity (T)	≤ 45 T
Axle	13 T/16T, FUWA /Huajing Brand
Rim	9.00-22.5
Tire	12.00R22.5
Suspension	Mechanical suspension (Germany Type)
Spring leaf	90(W)mm*13(Thickness)mm
King pin	JOST brand 2.0 or 3.5inch bolts type
Support leg	JOST brand D200T
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel .
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 45L air tanks
ABS	Optional
Twist Locks	Twelve pieces (Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.
