Cheap Construction Machinery Ride-On Concrete Paver From China
US$ 2,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
concrete paver
Power(W):
20hp
Payment & Shipping
Payment Methods:
Port of Shipment:
Qindao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap Concrete Power Trowel From ChinaUS$ 300 - 5,000MOQ: 1 Set -
China Manufacturer Supply Ride On Concrete Power Trowel With Low PriceUS$ 300 - 5,000MOQ: 1 Set
-
0.3T Ride On Concrete Power Trowel in Hot SaleUS$ 300 - 5,000MOQ: 1 Set
-
13.5HP Concrete Power Trowel Machine From China FactoryUS$ 300 - 5,000MOQ: 1 Set
-
13.5HP Ride On Concrete Power Trowel From China FactoryUS$ 300 - 5,000MOQ: 1 Set
Condition
New
Production Capacity
concrete paver
Power(W)
20hp
Paving Width
2500mm
Place of Origin
Shandong, China
Brand Name
wolwa
Model Number
GNJP12
Dimension(L*W*H)
2554*2500*2360mm
Weight
1080kg
Certification
iso
Warranty
1 year
After-sales Service Provided
Overseas service center available

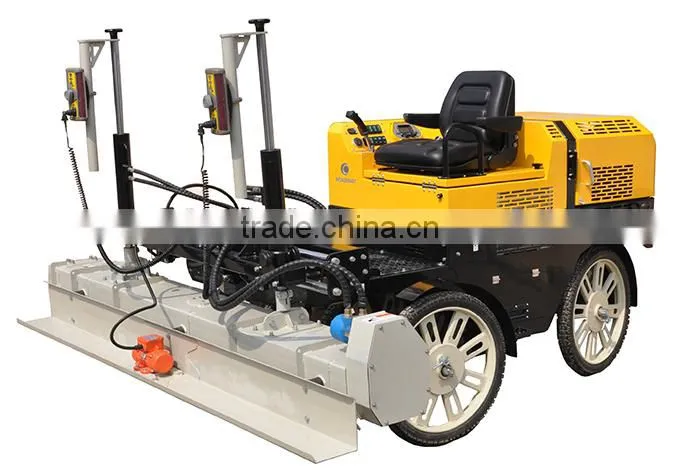

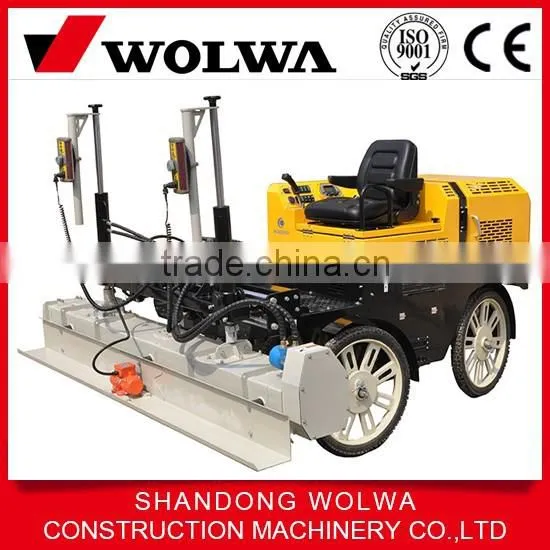

Cheap Construction Machinery Ride-On Concrete Paver From China
Product Description
ride-on concrete paver parameter
| type | GNJP12 | |||
| Engine | ||||
| model | HONDA GX630 electrical starting | |||
| type | gasoline,air cooled 4 stroke,OHV,double cylinder | |||
| power | 20hp/36oorpm | |||
| oil tank volume | 40L | |||
| hydraulic oil volume | 50L | |||
| engine oil volume | 1.5L | |||
| fuel consumption | 318g/kwh | |||
| running device | ||||
| driving | 4 hydraulic drive motor | |||
| wheel | solid puncture-proof tyre | |||
| speed | 0-7-m/min | |||
| screed head | ||||
| type | fixed type | |||
| width | 2500mm | |||
| paving type | with auger | |||
| auger force | hydraulic motor | |||
| exciting force | 500N | |||
| vibration frequency | 50Hz | |||
| screed height | 330mm | |||
| laser control system | ||||
| control type | microcomputer laser scan | |||
| control effect | flat,slope or double slope(3D) | |||
| operation mode | ||||
| chair position | ride-on forward type | |||
| forward and reverse | hand control,stepless walking | |||
| steering | hydraulic control | |||
| cleaning system | ||||
| power | hydraulic motor | |||
| theoretical flow | 20L/min | |||
| rated pressure | 7Mpa | |||
| input port max water pressure | 0.5Mpa | |||
| size and weight | ||||
| outside size | 2554*2500*2360mm | |||
| weight | 1080kg | |||
