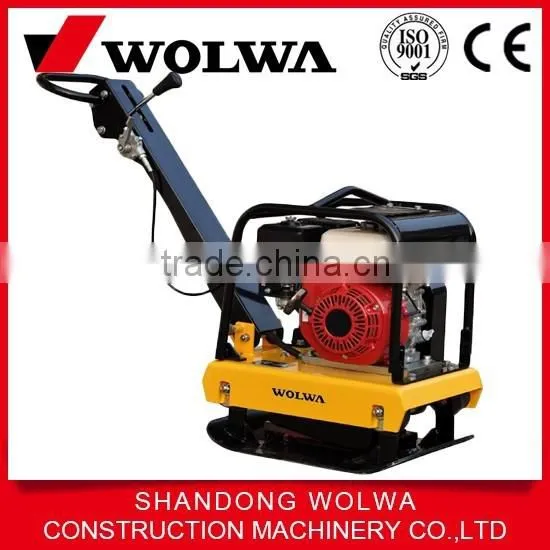

Help CenterConstruction Machinery Single Direction Road Plate Compactor
Related Products
-
Vibrating Frenquency Small Light Road Concrete Plate CompactorUS$ 500 - 700MOQ: 1 Set -
Concrete Ride on Concrete Laser ScreedUS$ 30,000 - 50,000MOQ: 1 Set
-
Ride on Concrete Laser Screed With 500n Micro Computer ControlUS$ 30,000 - 50,000MOQ: 1 Set
-
Concrete Laser Screed With Laser SystemUS$ 30,000 - 50,000MOQ: 1 Set
-
Ride on Concrete Leveling Tools With Micro Computor ControlUS$ 30,000 - 50,000MOQ: 1 Set
|
Compactor (Return direction) It is used to tamper engineering foundation, road margin and asphalt surface on constructing road, street, building, ditch and bridge in the field of road, municipal engineering, construction and water conservancy etc. It is better used tamping of narrow laneway. | |||
| Type | GNBH31 | GNBH32 | GNBH33 |
| Walking | |||
| Speed | 0-2.5km/h | ||
| Climbing Capacity in theory | 25% | ||
| Compaction | |||
| Nominal amplitude | 0.5mm | ||
| Vibrating frequency | 75Hz | 90Hz | |
| Exciting force | 30kN | 30.5kN | |
| Water tank volume | Non | 6L | Non |
| Engine | |||
| Model | HONDA GX160 | ||
| Type | Gasoline engine, air cooled, 4 stroke, OHV, single cylinder | ||
| Power | 5.5hp/3600rpm | ||
| Fuel tank volume | 3.6L | ||
| Dimension | |||
| Plate size | 430x310mm | 480x430mm | |
| Packing size | 950x640x1300mm | ||
| Total length(keep handrail level) | 1240mm | 1100mm | |
| Total width | 430mm | ||
| Total heightkeep handrail upright | 1500mm | 1120mm | |
| Weight | |||
| Working weight | 135kg | 145kg | 160kg |
| ing weight | 137kg | 157kg | 162kg |

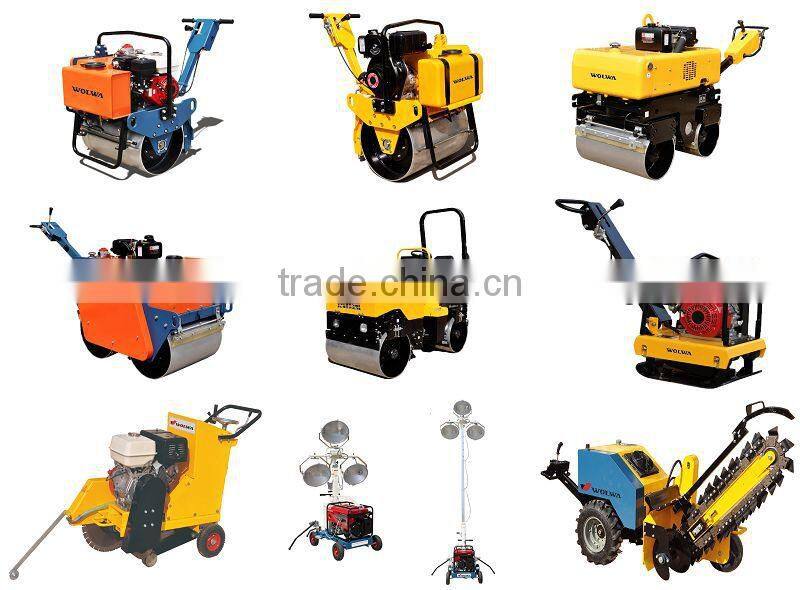

Other road construction products:
Shandong Wolwa Construction Machinery Co., Ltd, a corporate enterprise of Wolwa Group, is a professional
hydraulic excavator manufacturer integrating scientific research, production andsales. Wolwa Group Co., Ltd has
the total assets of 2.5 billion RMB. It has over 80,000 squaremeters of production workshop with international
advanced level and 8,000 squaremeters of R & D center. It has the production capacity with an annual output of
10,000 sets of construction machinery and 20,000 sets of hydraulic parts. The company has the honors of National High-tech Enterprise, he Leader of Local SMES and Shandong Top 100 Enterprise.
Our main leading products are DLS865-9A DLS880-9A DLS890-9A DLS100-9A Wheeled Hydraulic Excavator,
DLS880-9A DLS890-9A Wheeled Sugarcane Wood Loader, DLS118-9A Wheeled Hydraulic Stacker, DLS865-9B DLS865-10B DLS880-9B DLS100-9B DLS130-9 DLS160-9 Crawler Hydraulic Excavator etc.
We also specializes in the sales of other construction machinery and agricultural equipment such asdesiccated
underground crusher, welding workstation, truck cranes,wheel loaders, skid steer loaders, concrete mixer trucks,
forklifts, road rollers, harvesters, tractors, steel bar processing machinery and so on.
Our company has passed the ISO9001:2008 authentication, and got European UnionCE certificate.Our products are
exported to many countries such as Russia, Belarus, Iran, Vietnam, Five Central AsianCountries, Africa and other
countries all over the world.
