Products information:

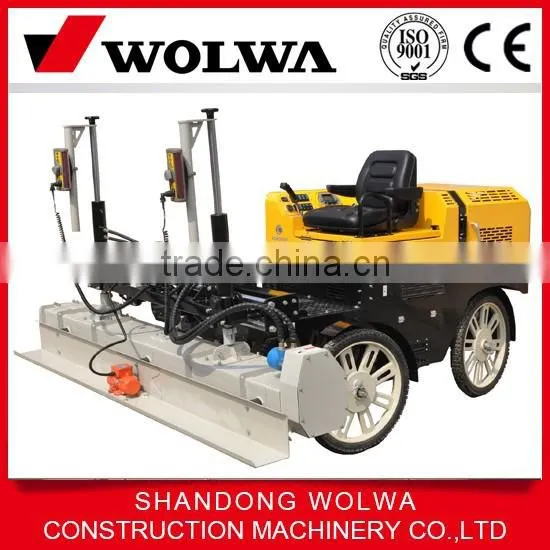

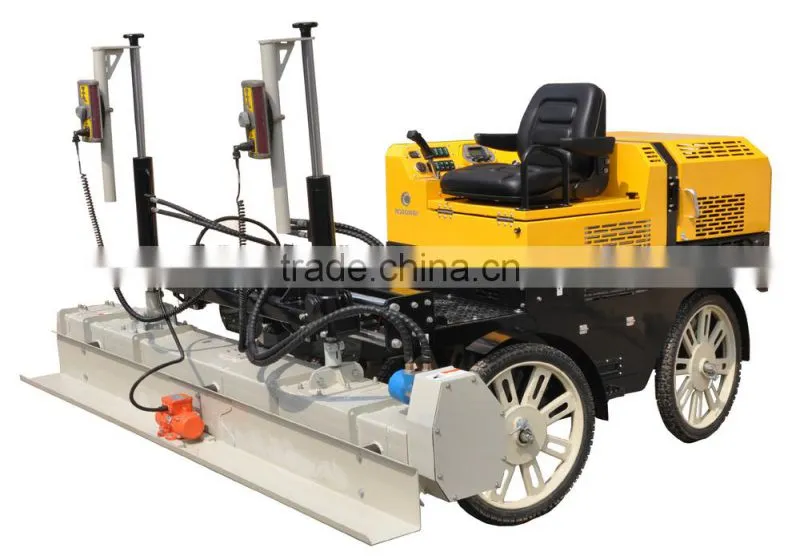

The Laser Screed is used in large area concrete construction, such as the modern industrial workshop, the large market, storage, airport, the plaza, and so on. The Laser Screed can satisfy the construction requirements of large area and high planeness and levelness.

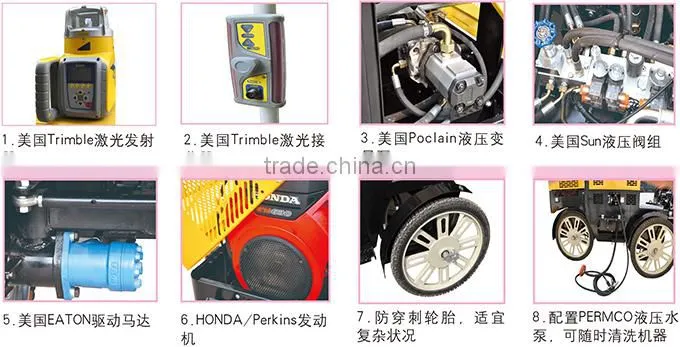

1.USA Trimble transmitter
2.HONDA engine GX630
3.USA Hydro-gear hydraulic pump
4.EATON Motor
5.USA sun hydraulic valve
6.USA EATON drive motor
specification:
Type | GNJP12 | GNJP14 |
Engine |
| |
Model | HONDA GX630 Electrical starting | |
Type | Gasoline, air cooled 4 stroke, OHV, double cylinder | |
Power | 20hp/3600rpm | |
Oil tank volume | 40L | |
Hydraulic oil Volume | 50L | |
Engine oil volume | 1.5L | |
Fuel consumption | 318g/kwh | |
Running device |
| |
Driving | 4 Hydraulic drive motor | |
Wheel | Solid puncture-proof tyre | |
Speed | 0-70m/min | |
Suggest working speed | 5m/min | |
Screed head |
| |
Type | Fixed | Swing type / self-levelling |
Width | 2500mm | |
Paving type | With auger | |
Auger force | Hydraulic motor | |
Exciting force | 500N | |
Vibration frequency | 50Hz | |
Self-leveling control | Proportional control | |
Screed Height | 330mm | 370mm |
Laser control system |
| |
Control type | Microcomputer laser scan | |
Control effect | Flat, slope or double slope(3D) | |
Operation mode |
| |
Chair position | Ride-on forward type | |
Forward and reverse | Hand control, stepless walking | |
Steering | Hydraulic control | |
Cleaning system |
| |
Power | Hydraulic motor | |
Theoretical flow | 20L/min | |
Rated pressure | 7MPa | |
Input port max water pressure | 0.5MPa | |
Size and Weight |
| |
Outside size | 2554×2500×2360mm | 2686x2631x2568mm |
Weight | 1080KG | 1200kg |
