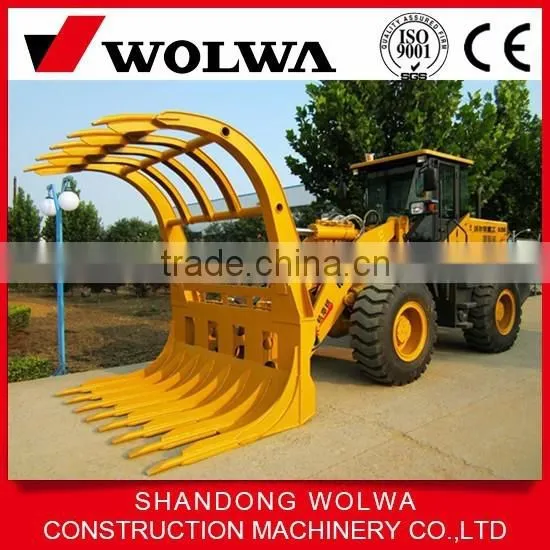

DLZ935 wheel loader with grass grab
1. Adopt Yuchai YC6B125-T20 diesel engine, stronger power and higher reliability.
2. Hydrodynamic transmission, three-element and single stage torque converter, high reliability, easy maintenance.
3. Hangzhou Advance Gearbox Group BS428 power shift transmission, high efficiency and easy maintenance.
4. Gear-shift controlled by flexible shaft makes operation more flexible and reliable.
5. Single lever pilot control system, comfortable and flexible operation.
6. Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;
7. Air over hydraulic disks on four wheel brakes.
8. Working device with automatically leveling ability at high position.
9. Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
10. Integral, luxury instrument board.
11. New, luxury cabin.
DLZ935 wheel loader with grass grab
Item |
Specifications |
Item |
Specifications |
Bucket Capacity |
1.7m3 |
Min. Turning Radius (outside of rear wheels) |
5160mm |
Rated Load |
3000 kg |
Steering Angle |
35º |
Dumping Height |
3050 mm |
Min. Ground Clearance |
410mm |
Dumping Reach |
1105mm |
Wheel Base |
2600mm |
Boom Lifting Time |
5.5 s |
Tread |
1800mm |
Max. Speed |
38km/h |
Rated Power |
92kw/2200rpm |
Max. Breakout Force |
120 kn |
Tyre |
17.5-25 |
Max. Drawing Force |
90 kn |
Overall Dimensions |
7090*2425*2150mm |
Max. Gradeability |
30° |
Operating Weight |
9800kg |
Engine Model |
Yuchai YC6B125-T20 |
||
DLZ935 wheel loader with grass grab
•Direct factory supplier ,Well and High Quality Control
Shandong Wolwa Construction Machinery Co., Ltd, a corporate enterprise of Wolwa Group, is a professional hydraulic excavator manufacturer integrating scientific research, production and sales. Wolwa Group Co., Ltd has the total assets of 2.5 billion RMB. It has over 80,000 square meters of production workshop with international advanced level and 8,000 square meters of R & D center. It has the production capacity with an annual output of 10,000 sets of construction machinery and 20,000 sets of hydraulic parts. The company has the honors of National High-tech Enterprise, he Leader of Local SMES and Shandong Top 100 Enterprise.
Our main leading products are DLS865-9A DLS880-9A DLS890-9A DLS100-9A Wheeled Hydraulic Excavator, DLS880-9A DLS890-9A Wheeled Sugarcane Wood Loader, DLS118-9A Wheeled Hydraulic Stacker, DLS865-9B DLS865-10B DLS880-9B DLS100-9B DLS130-9 DLS160-9 Crawler Hydraulic Excavator etc.
We also specializes in the sales of other construction machinery and agricultural equipment such as desiccated underground crusher, welding workstation, truck cranes, wheel loaders, skid steer loaders, concrete mixer trucks, forklifts, road rollers, harvesters, tractors, steel bar processing machinery and so on.
Our company has passed the ISO9001:2008 authentication, and got European Union CE certificate. Our products are exported to many countries such as Russia, Belarus, Iran, Vietnam, Five Central Asian Countries, Africa and other countries all over the world.
