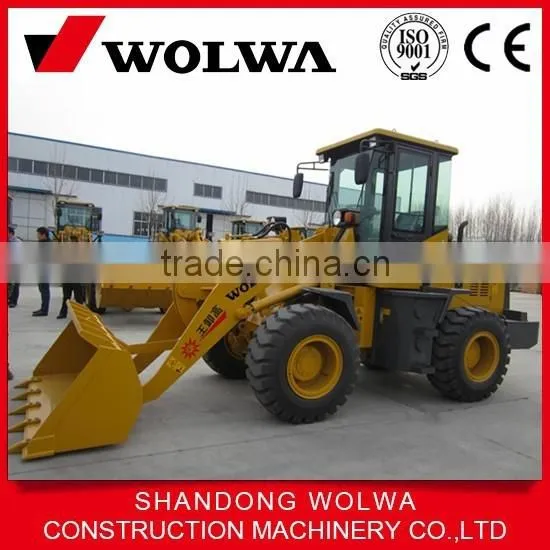

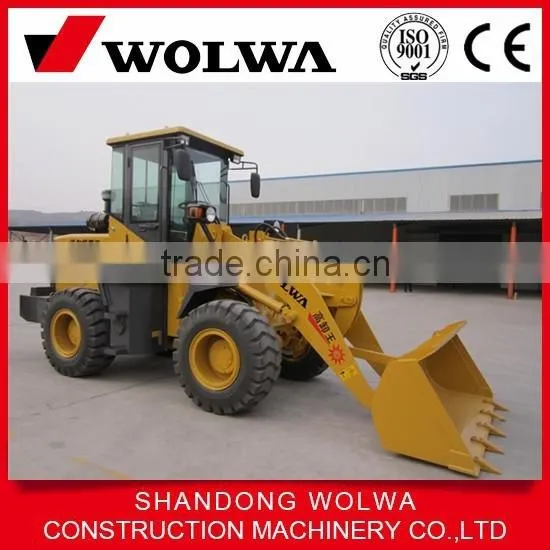

Help CenterWheeled 1.8 Ton Front Loader DLZ920 Made in China
Related Products
-
Wheeled Front Loader DLZ938 Made in China From WolwaUS$ 2,000 - 3,000MOQ: 1 Set -
Wolwa Front Wheeled Loader DLZ926 Made in ChinaUS$ 2,000 - 3,000MOQ: 1 Set
-
Wolwa Front Loader DLZ915 Made in ChinaUS$ 2,000 - 3,000MOQ: 1 Set
-
DLZ935 Timber Grapple Wheel Loader Log Grab LoaderUS$ 500 - 9,000MOQ: 1 Set
-
Wheel Loader DLZ 958 From Wolwa Factory Made in ChinaUS$ 2,000 - 3,000MOQ: 1 Set
Adopt Zhejiang Xin Chai four cylinder diesel engine.
Hydrodynamic transmission technology and separated structure make high reliability and easy maintenance.
Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.
Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
Double sealed hydraulic pipeline joints, avoiding oil leakage.
Load sensing fully hydraulic steering system makes operation easy.
Air over hydraulic brake system; Caliper disc brakes.
Working device with automatically leveling ability at high position.
Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
Integral, luxury instrument board.
New, luxury cabin.
Item |
Specifications |
Item |
Specifications |
Bucket Capacity |
0.9 m3 |
Min. Turning Radius (outside of rear wheel) |
4200mm |
Rated Load |
1800 kg |
Steering Angle |
35º |
Dumping Height |
2750 mm |
Min. Ground Clearance |
330mm |
Dumping Reach |
910 mm |
Wheel Base |
2150mm |
Boom Lifting Time |
4.5 S |
Tread |
1480mm |
Total Cycling Time |
9 S |
Engine Model |
Xin Chai 4105 |
Max. Speed |
25km/h |
Rated Power |
50kw/2400rpm |
Max. Breakout Force |
46 kn |
Tyre |
16/70-20 |
Max. Drawing Force |
35 kn |
Overall Dimensions |
5520*1950*2670mm |
Max. Gradeability |
28° |
Operating Weight |
5300kg |
