Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Excavator > Small Crawler Track Excavator With Japan Engine

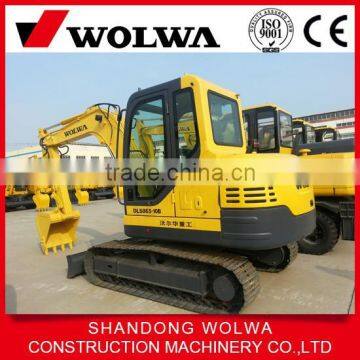

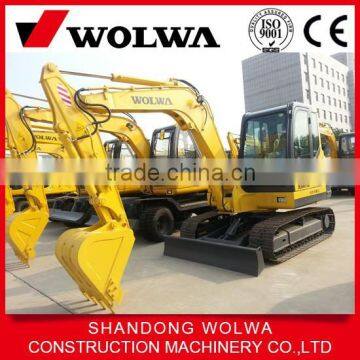

Small Crawler Track Excavator With Japan Engine
US$ 33,000 - 36,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
WOLWA
Model Number:
DLS865-10b
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao or tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Low Price Grab ExcavatorUS$ 40,000 - 80,000MOQ: 1 Set -
360-degree Rotary Hydraulic Grab ExcavatorUS$ 40,000 - 80,000MOQ: 1 Set
-
Chinese Factory Sell 4WD 8ton Hydraulic Wheel ExcavatorNegotiableMOQ: 1 Set
-
8ton Sugarcane Excavator & Sugarcane LoaderNegotiableMOQ: 1 Set
-
21 Ton Hydraulic Big Ton Wheel Excavator for SaleUS$ 65,000 - 200,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
WOLWA
Model Number
DLS865-10b
Condition
New
Moving Type
Crawler Excavator
Operating Weight
5850kg
Bucket capacity
0.22 cbm
Maximum Digging Height
6369mm
Maximum Digging Depth
3331mm
Machine Weight
5800kg
Max Digging Radius
5919mm
Rated Speed
20-30km/h
Certification
iso & ce
After-sales Service Provided
Engineers available to service machinery overseas
PRODUCTS DISPLAY:
|
|
PRODUCTS SPECIFICATION:
| The Parameter of DLS865-9A | |||
| wheel hydraulic excavator | unit | DLS865-9A | |
| motor | model | Xinchai | |
| hydraulic pump | model |
SHIMADZU Japan |
|
| main val | model | Korea imported | |
| Operating weight | kg | 5800 | |
| volume of bucket | m³ | 0.24 | |
| power | kw/rpm | 40 or 48/2300 | |
| Dimensions | overall width | mm | 2000 |
|
machine height (the top of the device) |
mm | 2710 | |
| overall length | mm | 5365 | |
|
machine height (the top of the swing arm) |
mm | 2454 | |
| ground clear ance(bob-weight) | mm | 985 | |
| min.ground clearnce | mm | 280 | |
| tyre gauge | mm | 1560 | |
| wheel shaft diameter | mm | 2310 | |
| mouldboard width | mm | 2024 | |
| mouldboard height | mm | 310 | |
| Operating scope | boom length | mm | 2880 |
| arm length | mm | 1845 | |
| max.digging reach | mm | 5915 | |
| max.digging depth | mm | 3331 | |
| max.digging height | mm | 6369 | |
| max.dumping height | mm | 4615 | |
| min.swing radius | mm | 2020 | |
| rear-end seingradius | mm | 1751 | |
| max.flooring reach | mm | 5747 | |
| Specifications | working pressure | Mpa | 19 |
| rated flow | L/min | 44+50 | |
| swing speed | rpm | 9.2 | |
| travel speed | Km/h | 0~30 | |
| buckte digging force | KN | 30 | |
| arm digging force | KN | 18 | |
| max.hauling force | KN | 34.8 | |
| max.torque | N.m/rpm | 199/1650 | |
| gradeability | . | 20 | |
| fuel tank | L | 125 | |
| hydraulice oil tank | L | 105 | |
| rated acpacity | ml/r | 20+23 | |
