Small Hydraulic Wheel Excavator With 4 Wheel Driving

Name: Small Hydraulic Wheel Excavator With 4 Wheel Driving
Brand: WOLWA
SKU: 140739730
Availability: InStock

US$ 35,000 - 45,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

WOLWA

Model Number:

DLS100-9A

Shandong Wolwa Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao or tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name WOLWA

Model Number DLS100-9A

Condition New

Moving Type Wheel Excavator

Operating Weight 9700kg

Bucket capacity 0.35cbm capacity

Maximum Digging Height 7508mm

Maximum Digging Depth 3926mm

Machine Weight 9700kg

Max Digging Radius 6705mm

Rated Speed 20 to 30 km/h

Certification iso & ce

After-sales Service Provided Engineers available to service machinery overseas

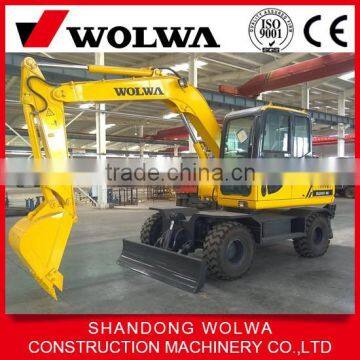

PRODUCTS PHOTO:

PRODUCTS SPECIFICATION:

The Parameter of DLS100-9A
wheel hydraulic excavator		unit	DLS100-9A
motor		model	Cummins
hydraulic pump		model	Japan Kawasaki
main val		model	Korea Parker
Operating weight		kg	9700
volume of bucket		m³	0.35
power		kw/rpm	75/2200
Dimensions	overall width	mm	2238
	machine height (the top of the device)	mm	2900
	overall length	mm	6932
	machine height (the top of the swing arm)	mm	2827
	ground clear ance(bob-weight)	mm	1110
	min.ground clearnce	mm	362
	tyre gauge	mm	2210
	wheel shaft diameter	mm	2400
	mouldboard width	mm	2234
	mouldboard height	mm	460
Operating scope	boom length	mm	3908
	arm length	mm	1748
	max.digging reach	mm	6705
	max.digging depth	mm	3926
	max.digging height	mm	7508
	max.dumping height	mm	5321
	min.swing radius	mm	2140
	rear-end seingradius	mm	2191
	max.hade digging depth	mm	3558
	max.flooring reach	mm	6503
Specifications	working pressure	Mpa	28
	rated flow	L/min	2*79.2
	swing speed	rpm	12
	travel speed	Km/h	0~20
	buckte digging force	KN	57.7
	arm digging force	KN	41.9
	max.hauling force	KN	58.2
	max.torque	N.m/rpm	400/1500
	gradeability	.	20
		L	155
	hydraulice oil tank	L	110
	rated acpacity	ml/r	2*36
