High Lift and Self Load Small Garden Dumper on Sale

High Lift and Self Load Small Garden Dumper on Sale thumbnail-1
High Lift and Self Load Small Garden Dumper on Sale thumbnail-2
High Lift and Self Load Small Garden Dumper on Sale thumbnail-3
High Lift and Self Load Small Garden Dumper on Sale thumbnail-4
High Lift and Self Load Small Garden Dumper on Sale photo-1
High Lift and Self Load Small Garden Dumper on Sale photo-2
High Lift and Self Load Small Garden Dumper on Sale photo-3
High Lift and Self Load Small Garden Dumper on Sale photo-4
US$ 7,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
Wolwa
Model Number:
GN05A
Contact Supplier Request Quote Chat Now
Shandong Wolwa Construction Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name Wolwa
Model Number GN05A
Place of Origin Shandong, China
Type Other, track mini dumper
Moving Type Crawler Loader
Dimension(Long * Breadth * High) 1221*690*585mm
Rated Load 600kg
Certification CE & ISO9001:2008
Warranty 1year
After-sales Service Provided Overseas third-party support available

Product Description

GN05A Mini Dumper 600kg Track Dumper Garden Transporter Introduction

Mini dumper is mainly composed of hopper and walking chassis, with the help of  the gravity of the

bucket material or hydraulic cylinder to tilting unloading material. It can be divided to front

discharge, rotary discharge, side discharge, high fulcrum discharge (with limited height) and lift

tilting discharge (discharge height can changeable), etc.



GN05A Mini Dumper 600kg Track Dumper Garden Transporter Dimensions

high lift and self load small garden dumper on sale

GN05A Mini Dumper 600kg Track Dumper Garden Transporter Parameters



Model

GN05A

skip



length

1221mm

width

690mm

height

585mm

volume

0.31 m3

Prevent slippery ability

0.04 m3

pour angle

45°

angle from ground

10°

engine



origin

China

fuel

diesel

rated power

6.8kw

rated speed

3000r/min

Number of cylinders

1

hydraulic system



engine

domestic

Double pump

domestic

system pressure

16MPa

system flow speed

12ml/min

hydraulic oil tank VOL.

19.4L

Body of machine



operating weight

800kg

capacity

600kg

fuel oil tank

5.5L

speed

3.5km/h

gradeability

15%

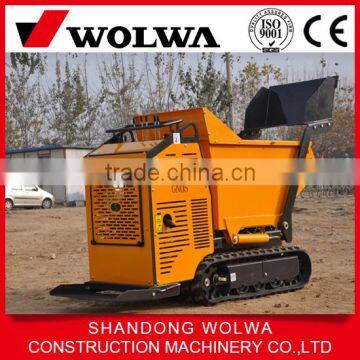

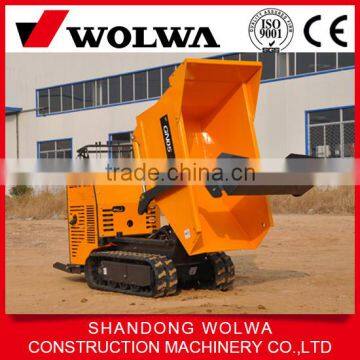

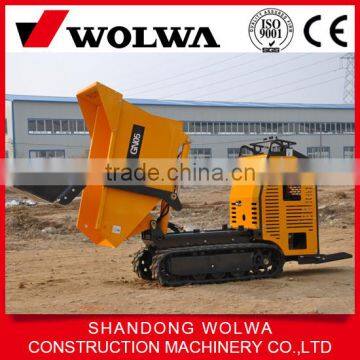

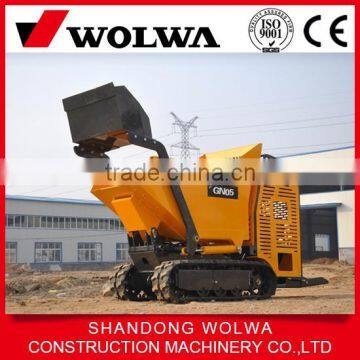

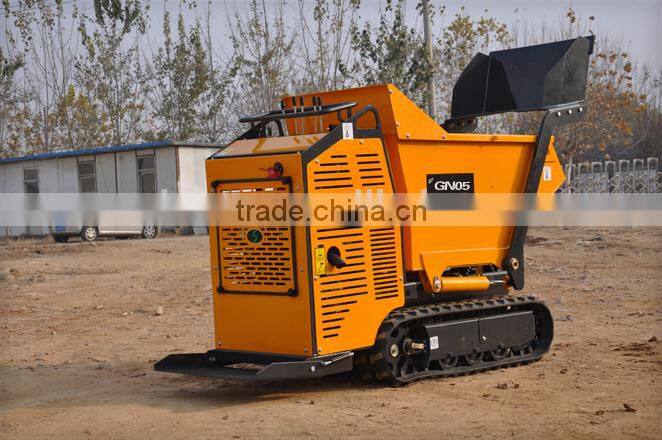

GN05A Mini Dumper 600kg Track Dumper Garden Transporter Photos

high lift and self load small garden dumper on salehigh lift and self load small garden dumper on sale
