2m3 concrete mixer truck, 4m3 concrete mixer truck, 6m3 concrete mixer truck
We supply all kinds concrete mixer and concrete truck!!!

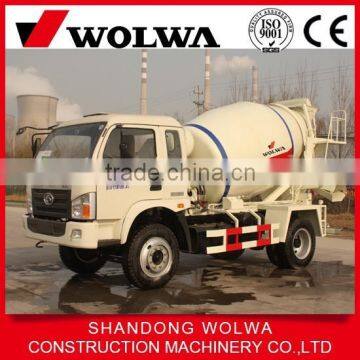

2m3 concrete mixer truck
Item |
Specification |
Item |
Specification |
Engine Model |
SF168-2 |
Chassis Type |
SF168-2 |
Engine type |
forced circulation |
Operating weight |
(kg) 3495 |
Engine Displacement |
(L) 1.595 |
Overall size(mm) |
5600 * 1750 * 2900 |
Engine power |
22kw |
Max.Standard transfer rate |
(r / min) 3200 |
Wheelbase |
(mm) 2800 |
Drum geometric volume |
(m³) 3.9 |
Front axle |
(mm) 1000 |
Max. mixing volume |
(m³) 2 |
Rear overhang |
(mm)1800 |
Feed speed |
(m³) ≥ 0.5 |
Maximum grade |
25 |
Unloading speed |
(m³) ≥ 0.8 |
Max driving speed |
(km / h) ≤ 50 |
Max drum rotating speed |
(r / min) 6-10 |
Minimum turning diameter |
(m) ≤ 15 |
Drum inclination |
(°) 16 |
Clutch |
Twin-plate dry mix bucket often engages |
Max. Drum diameter |
(mm) D1560 |
Transmission Type |
shaft |
drive gear |
HJ20043 |
Drive mode |
rear-wheel drive |
hydraulic pumps |
gear pump 32 |
Steering Type |
hydraulic power |
hydraulic motors |
Orbit Motors |
Brake |
breathe brake |
Water tank capacity |
(L) 180 |
Parking brake |
mechanical rear brake |
Water supply |
Air pressure |
1) on construction 6m3 concrete mixer truck
