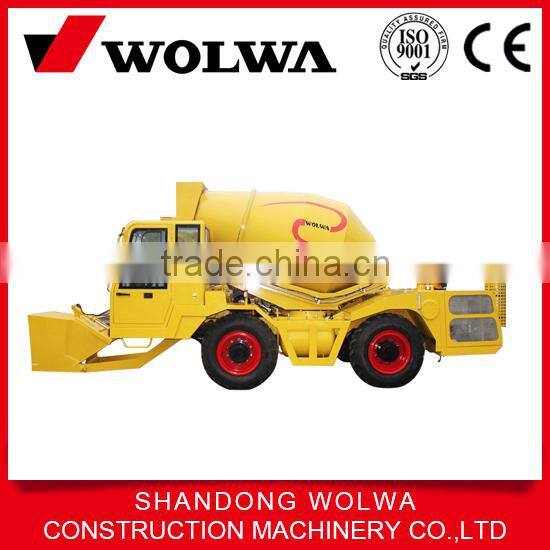

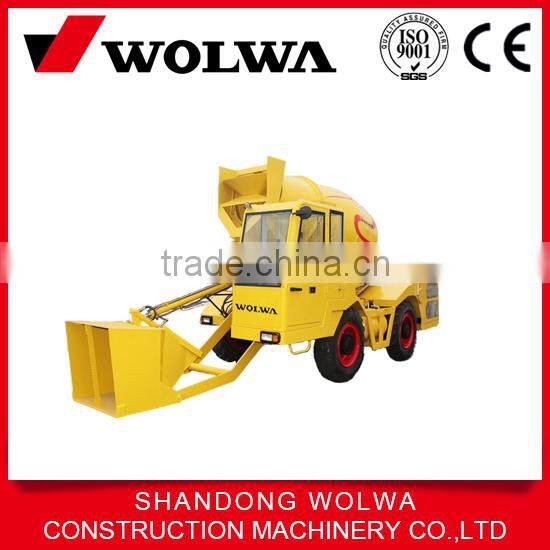

Help CenterSelf Loading Mobile Concrete Mixer From China Factory
Related Products
-
Self-loading Concrete Mixer With Auto FunctionUS$ 50,000 - 60,000MOQ: 1 Set -
2,5 m3 Self Loading Truck Concrete Mixer for SaleUS$ 50,000 - 60,000MOQ: 1 Set
-
3.5 Self Loading Truck Concrete Mixer With Cheap PriceUS$ 50,000 - 60,000MOQ: 1 Set
-
Cheap China Self Loading Concrete Mixer for SaleUS$ 50,000 - 60,000MOQ: 1 Set
-
3.5 Cubic Meters Concrete Mixer Truck With Self Loading SystemUS$ 50,000 - 60,000MOQ: 1 Set
2m3 concrete mixer truck, 4m3 concrete mixer truck, 6m3 concrete mixer truck
We supply all kinds concrete mixer and concrete truck!!!
2m3 concrete mixer truck
Main specification | |
Mixing capacity | 2.5 m3 |
Drum capcacity | 3.5m3 |
Bank angle | 16° |
Rotation speed | 10-16r/min |
Angle of drum rotation | 270° |
Mixing drum blades | Spiral blades |
Chute | |
Swing angle | 60° |
Angle control | Hydraulic control |
Diesel engine | |
Type | China brand YUCHAI YC4A125Z-T21 |
Rated power/rpm | 81kw/2300rpm |
Max torque/rpm | 450n.m/15000-1700rpm |
Cylinder | 4-cylinder |
Cooling type | Water cooling |
displacement | 4.58L |
VEHICLE | |
Net weight | 6250KG |
Gross weight | 13000kg |
Transmission | Hydraulic 4wheel drive*4wheel turning |
Brake | Hydraulic brake Front and rear independent system |
Chassis | Homemade |
Distance of front/rear wheelbase | 1905mm |
Wheel base | 2155mm |
Tilt angle | 30% |
Loader | Hydraulic control door |
Speed | High 0-20km/h low 0-9km/h |
Min turning radious | 6.5m/r |
Tire | 9.00-20 |
Dimension | 6700*2400*3100mm |
Water tank | |
Supply water | Hydraulic water pump |
Water speed | 240l/min |
Water tank capacity | 450L |
HYDRAULIC SYSTEM | |
Hydraulic driving pump | CBF-32 |
Hydraulic mixing motor | BMS-100 |
reducer | HJ220 |
1) on construction 6m3 concrete mixer truck
