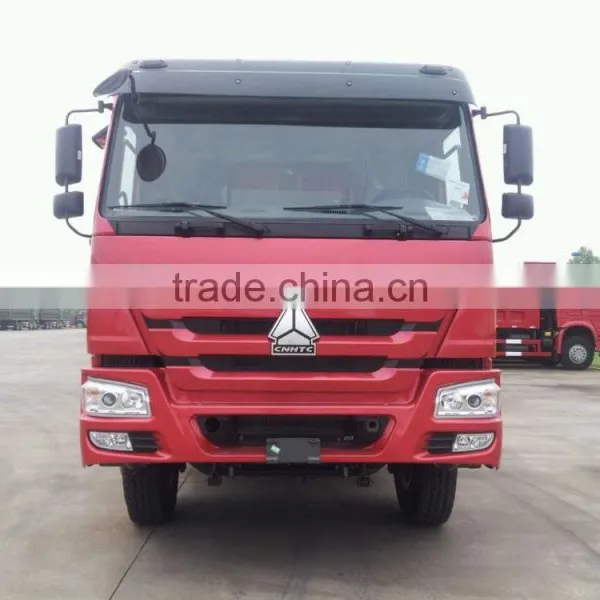

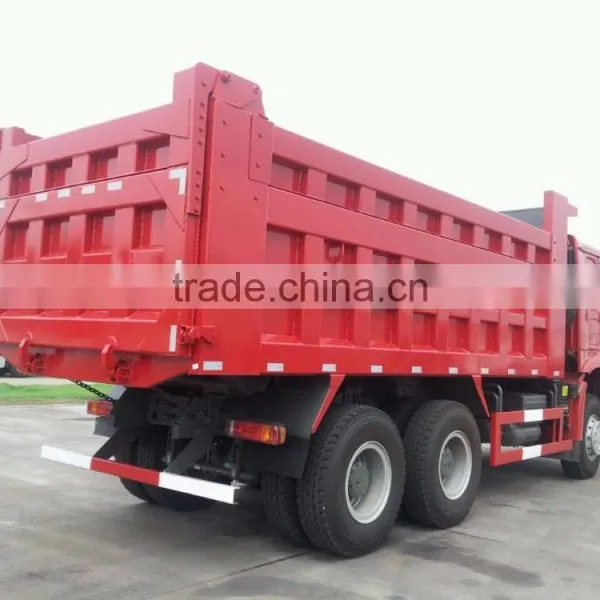

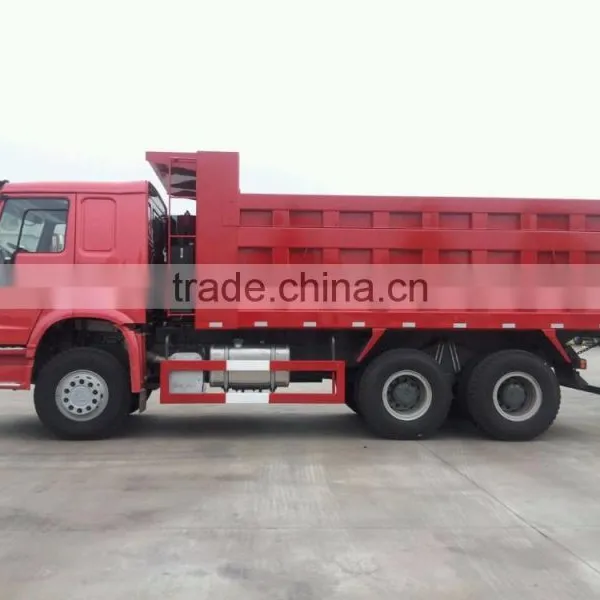

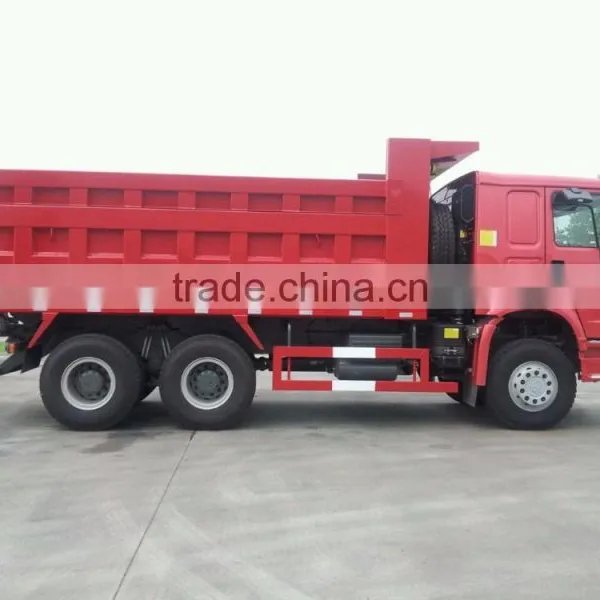

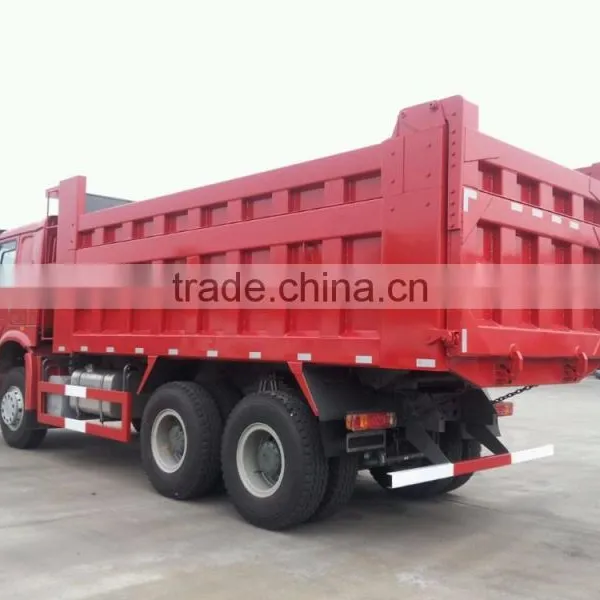

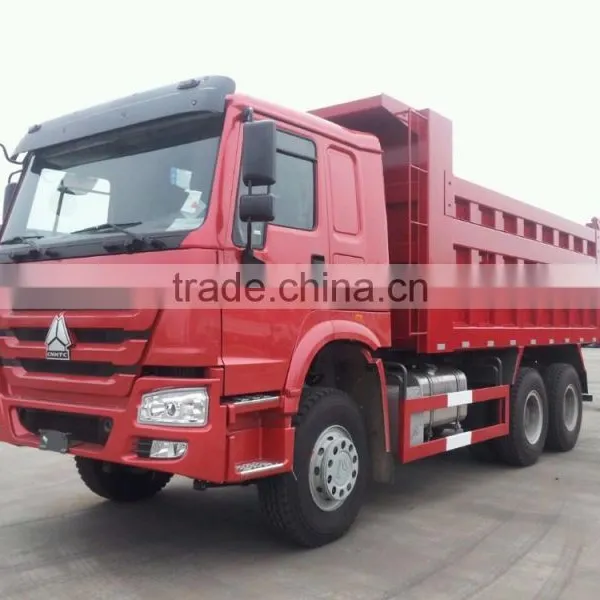

2015 New Sinotuck Howo 6*4 Dump truck ZZ3257N3647B
Model |
ZZ3257N3647B |
||
Weight |
Permissible Loading Capacity(kg) |
32000 |
|
Chassis Dead Weight(kg) |
12300 |
||
Front Axle Loading Weight(kg) |
9000 |
||
Rear Axle Loading Weight(kg) |
13000x2 |
||
Dimension |
External Dimensions(mm) |
lenght |
8210 |
width |
2516 |
||
height |
3310 |
||
Performance |
Wheel base(mm) |
1350+3600 |
|
Minimum Ground Clearance(mm) |
298 |
||
Maximum Speed(km/h) |
75 |
||
Maximum Gradeability(%) |
40 |
||
Minimum Turning Circle(m) |
18.3 |
||
Fuel consumption(1/100km) |
40 |
||
Engine |
Model |
WD615.69/WD615.47 |
|
Emission |
EUOR II |
||
Maximum output |
336HP(247KW)371HP(273KW) |
||
Maximum torqu |
1300Nm/1300-1600rpm |
||
1470Nm/1300-1600rpm | |||
Number of cylinder |
6 |
||
Displacement(L) |
9.726 |
||
Bore(mm) |
126 |
||
Stroke(mm) |
130 |
||
Fuel |
Diesel |
||
Compression Ratio |
|||
Engine oil filling quantity(L) |
19 |
||
Specification |
6-cylinder in-line water-cooling, turbo charging and intercooling |
||
Gearbox |
Model Option |
HW15710,HW19710,FAST RT11509C |
|
Operation |
Manual |
||
Speeds |
(8)9 Forward and 1 Reverse |
||
Front Axle |
Model |
HF9 |
|
Rated load(kg) |
|||
Maximum steering angle of inner wheel(°) |
45 |
||
Kingpin inclination(°) |
3 |
||
Camber angle(°) |
1 |
||
Spring gage(mm) |
850~900 |
||
Brake |
Air drum brake |
||
Min rim size(inch) |
20 |
||
Driving Axle |
Model |
HC16(Tandem axle) |
|
Type |
central single reduction+hub reduction, welded axle housing |
||
Rated load(kg) |
2x13000 |
||
Ratio |
3.93/4.42/4.80/5.73/6.72/9.49 |
||
Spring gage(mm) |
1020 |
||
Wheel tread(mm) |
1850 |
||
Input flange |
Φ180 |
||
Differential device |
Inter-wheel and inter-axle |
||
Brake |
Drum Φ420x220 |
||
|
Weight(Without lubricants)(kg) |
1st axle:895/2nd axle:815 |
||
Wheel bolt(mm) |
Φ335-10xM22x1.5 |
||
Min rim size(inch) |
20 |
||
Lubricants(L) |
GL5 85W-90 |
||
Cab |
Model |
HW70 |
|
Bunk |
Without |
||
Air Conditioner |
With |
||
Steering |
ZF power steering, model ZF8098, hydraulic steering with power assistance Ratio: 26.2 |
||
Electrics |
Operating voltage |
24V, negative grounded |
|
Starter |
24V, 5.4Kw |
||
Alternator |
3-phrase, 28V, 1500w |
||
Batteries |
2x12V, 165Ah |
||
Others |
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
||
Tyre |
Rims |
8.5-20, 10 hole-steel |
|
Option |
11.0020 Radial Tyres, 12.00 R20 Radial Tyres |
||
Brake |
Service brake |
Dual circuit compressed air brake |
|
Parking brake(emergency brake) |
Spring energy, compressed air operation on rear wheels |
||
Auxiliary brake |
Engine exhaust brake |
||
|
Bulk (Cargo Box) |
Lifting Option |
Front Lifting, Ventral Lifting |
|
L x W x H |
5400x2300x1500 |
||
Working Volumn(M3) |
18.6 |
||
Option |
Color |
Blue/White/Yellow/Green/Red |
|
Brake |
ABS, EVB |
||
Engine |
EURO II, EURO III, EURO IV |
||
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
