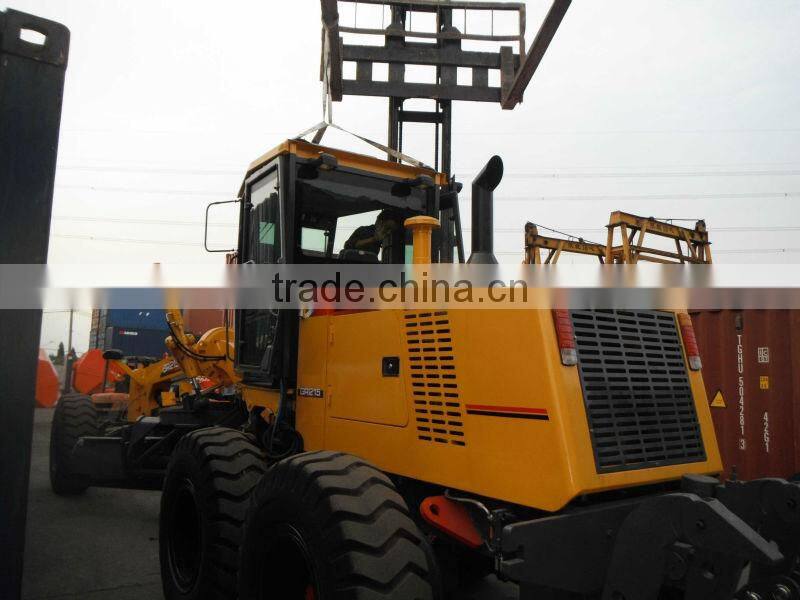

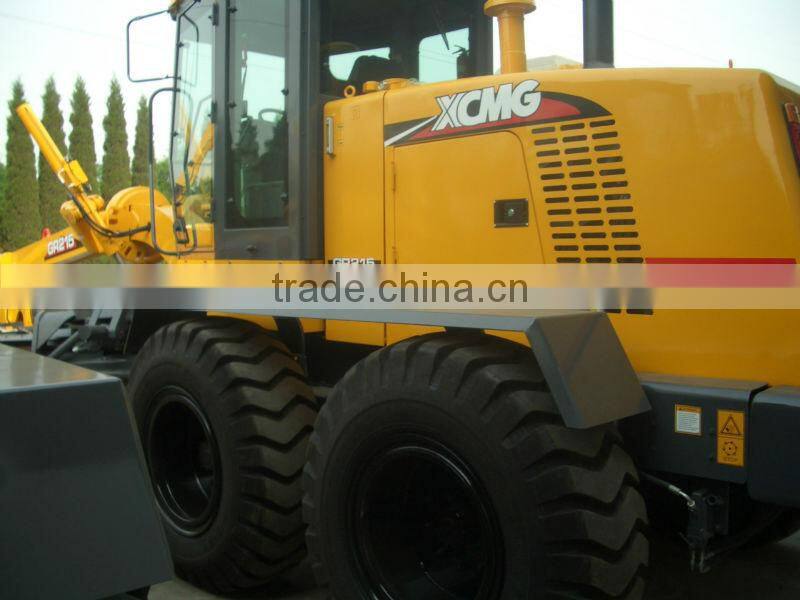

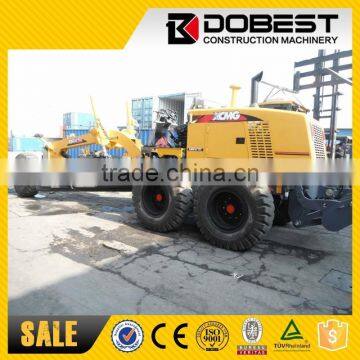

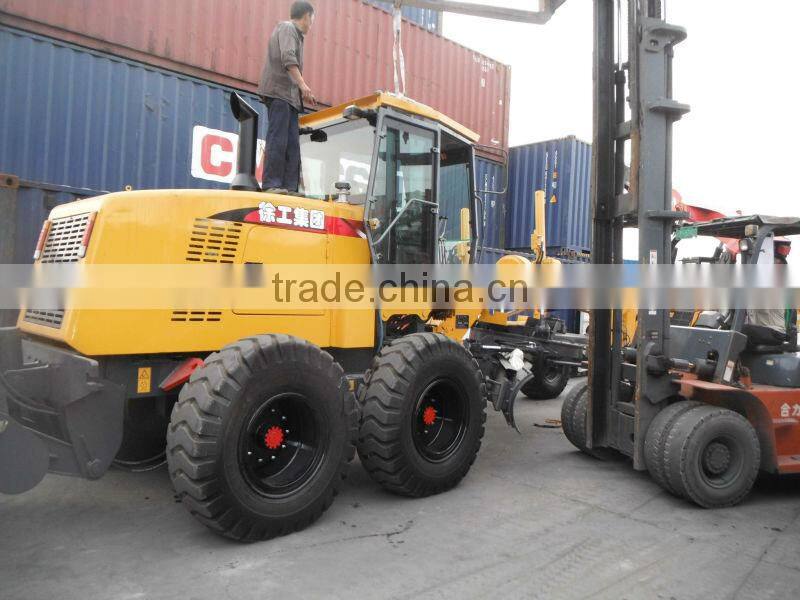

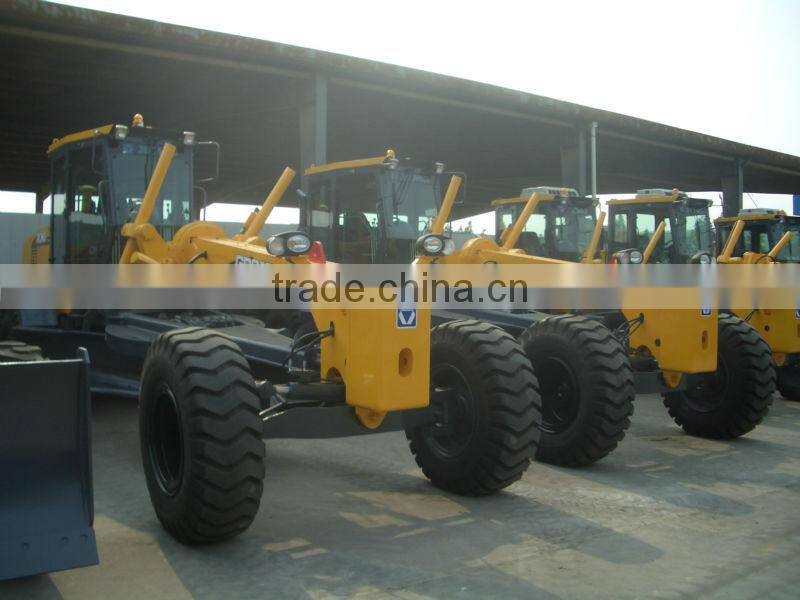

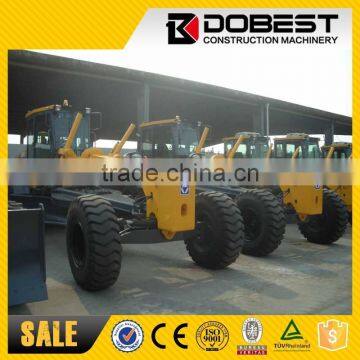

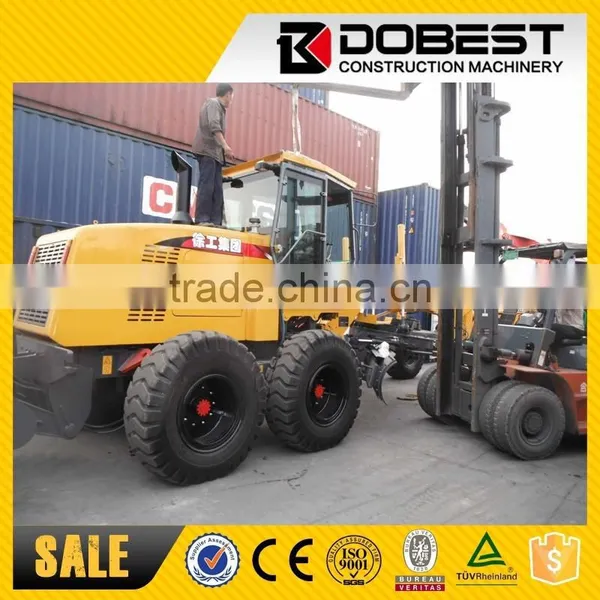

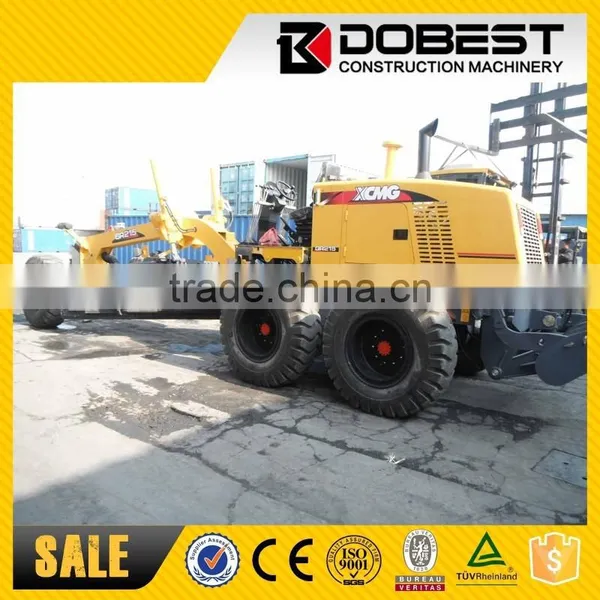

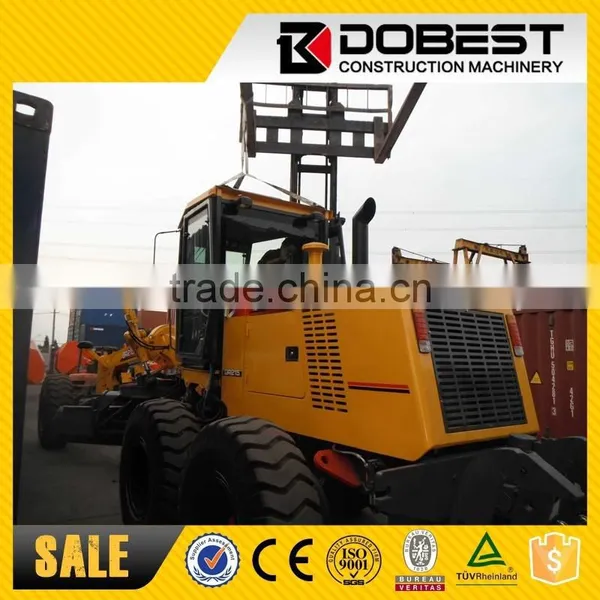

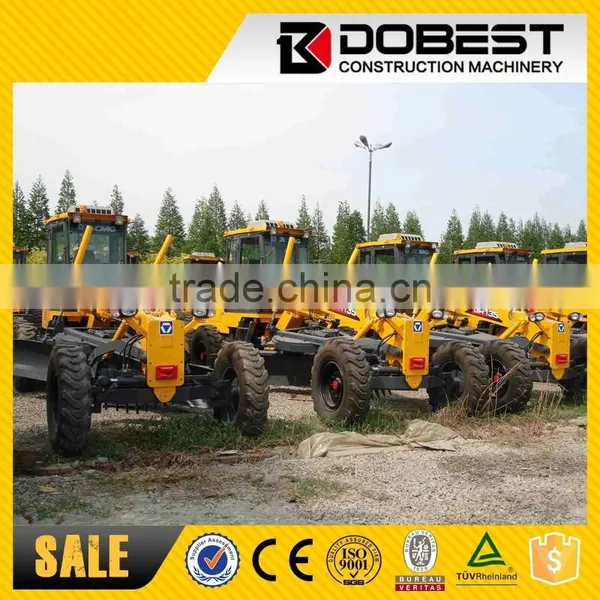

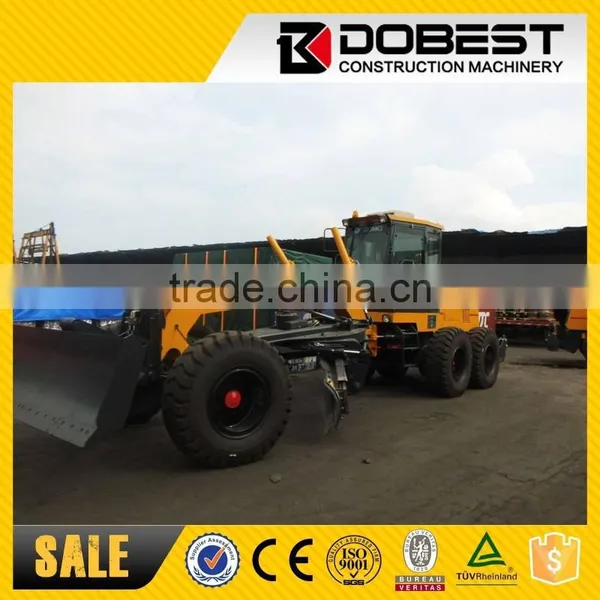

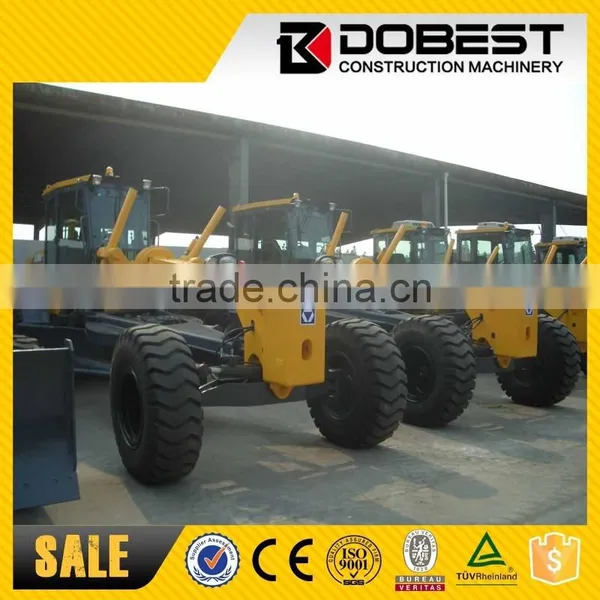

XCMG GR Series Motor Graders are mainly used in ground leveling, canalling, slope scraping, earthmoving, scarification or snow removal work on road, airfield, farmland, and so on. They are necessary construction machines for national defense engineering ,mine construction, town and country roads building, and farmland improvement.
Performance and characteristic
* New appearance design.

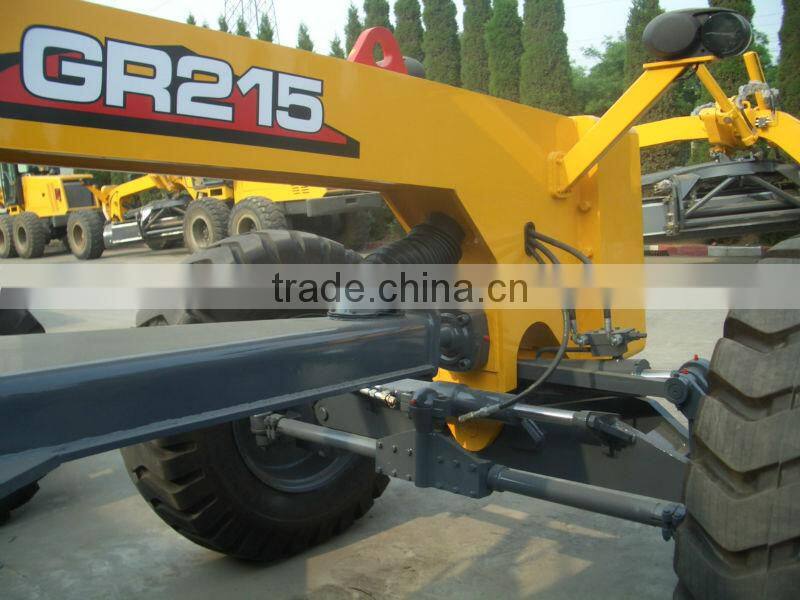

* The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius, maneuvering and flexible.
* The electro-hydraulic controls the power shift gearbox, with 6ahead gears and 3 back gears.
* The international matching hydraulic parts are adopted, with reliable operation.
* The motions of the blade are fully hydraulically controlled.
* The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.
* The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable, with convenient application, and the comfort of driving is improved .

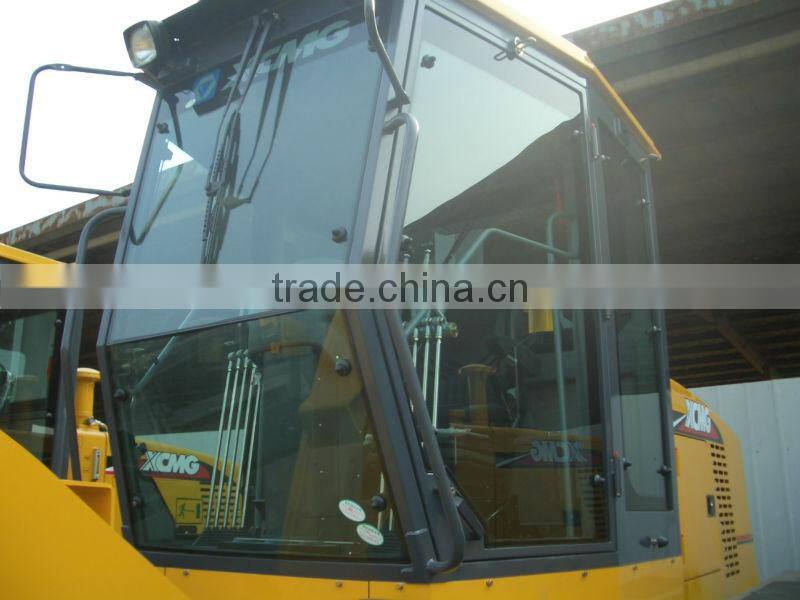

* The cab is grand and nice, with wide eyeshot and good sealing .
* The front bulldozing plate, rear scarification device, front scarification harrow and automatic leveling device can be added.
Basic specification | |
Engine model |
6CTAA8.3 |
Rated power/speed |
160kW/2200rpm |
Dimension(LxWxH) |
8970×2625×3470mm |
Operating weight(Standard) |
16500kg |
Performance specification | |
Travelling speed ,forward |
5,8,11,19,23,38 km/h |
Travelling speed ,reverse |
5,11,23 km/h |
Tractive force(f=0.75) |
82KN |
Max. gradeability |
20% |
Tire inflation pressure |
260 kPa |
Working hydraulic pressure |
16 MPa |
Transmission pressure |
1.3~1.8MPa |
Operating specification | |
Max. steering angle of front wheels |
±50° |
Max. lean angle of front wheels |
±17° |
Max. oscillation angle of front axle |
±15° |
Max. oscillation angle of balance box |
15 |
Frame articulation angle |
±27° |
Min. turning radius using articulation |
7.3m |
Biade | |
Maximum lift above ground |
450mm |
Maximum depth of cutting |
500mm |
Maximum blade position angle |
90° |
Blade cutting angle |
28°—70° |
Circle reversing rotation |
360° |
Moldboard width X height |
4270×610mm |
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
