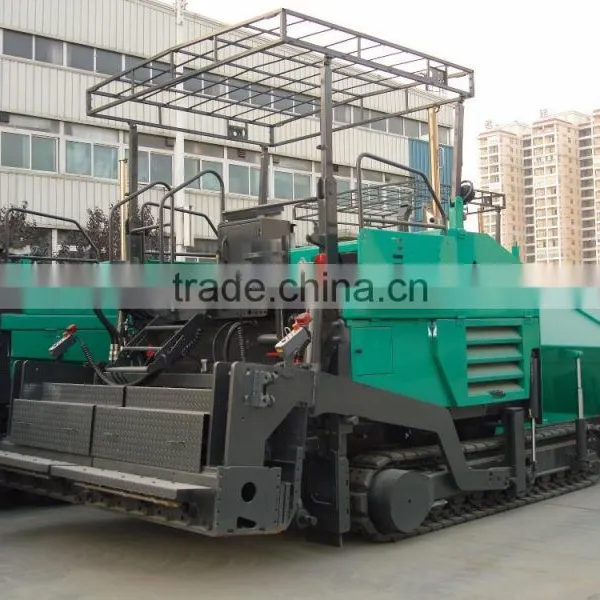

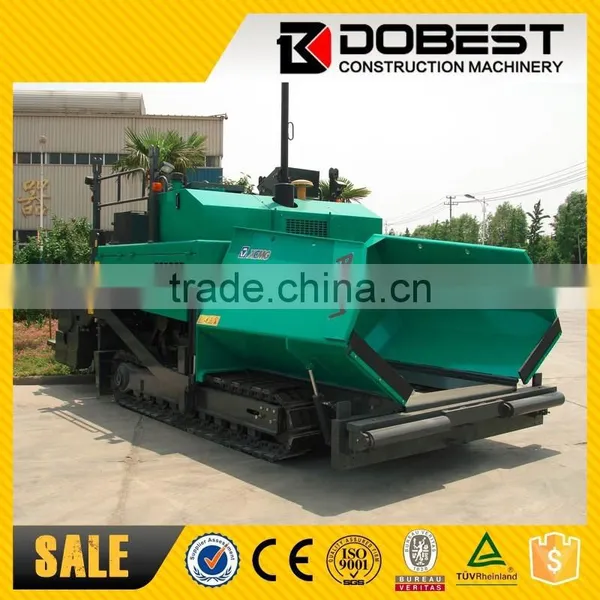

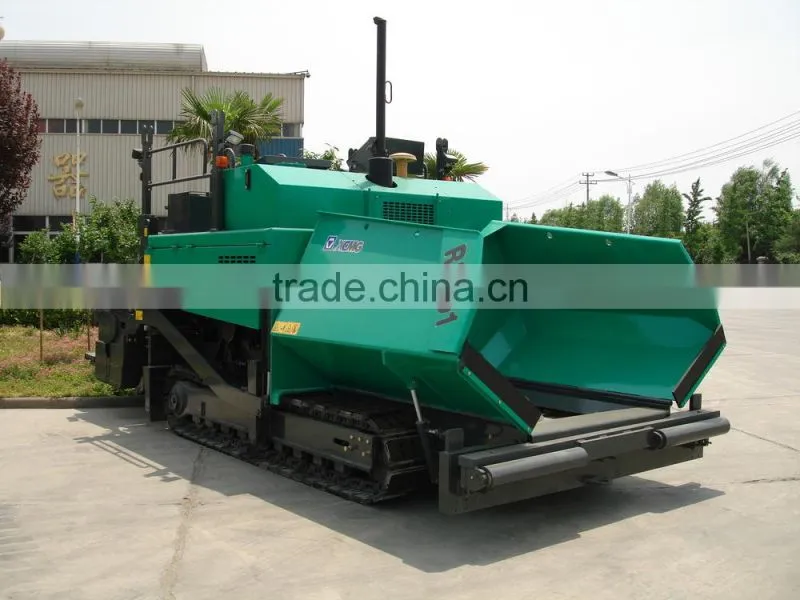

Hot Sale XCMG Asphalt Concrete Paver RP601
XCMG 6m Asphalt Concrete Paver RP601
Paving Width Ranges:2.5~6m
Max Paving Thickness:150mm
Engine:Shanghai D4114 diesel
Parameters
| Item | Unit | RP451L | RP601 | RP601L | RP701L |
| Basic Working Width | m | 2 | 2.5 | 2.5 | 2.5 |
| Max Working Width | m | 4.5 | 6.0/7.0 | 6 | 7 |
| Max Paving Thickness | mm | 150 | 150 | 300 | 300 |
| Paving Speed | m/min | 0~13 | 0~11 | 0~18 | 0~18 |
| Traveling Speed | km/h | 0~13 | 0~3.2 | 0~18 | 0~18 |
| Theoretical Productivity | t/h | 240 | 300 | 400 | 400 |
| Hopper Capacity | t | 12 | 13 | 20(paving shift) | 20(paving shift) |
| Gradient Ability | % | 20(paving shift) | 20 | 13 | 13 |
| Smoothness | mm/3m | 3 | 3 | 3 | 3 |
| Slope Leveling Tolerance | % | ±0.02 | ±0.03 | ±0.02 | ±0.02 |
| Crown adjust | % | 0~3 | 0~+3 | 0~+3 | 0~+3 |
| Tamper revolution | r/min | 0~1500 | 0~1500 | 0~1500 | |
| Tamper Amplitude | mm | 4/8 | 4 | 4 | |
| Engine Type | 4JR3G1(Shangchai) | D4114ZG2B (Shangchai) | D4114ZG2B (Shangchai) | D4114ZG2B (Shangchai) | |
| Rated power | kw | 55 | 100 | 100 | 100 |
| Rated revolution | rpm | 2200 | 2400 | 2400 | 2400 |
| Weight | t | 10.5 | 17.4~20.5 | 15.3~19 | 15.3~19 |
| Overall Dimension | mm | 5670×2070×3590 | 6400×2500×3830 | 6096×2580×3832 | 6096×2580×3832 |
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
