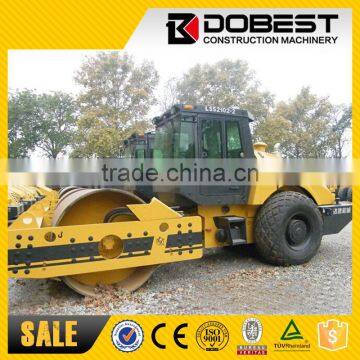

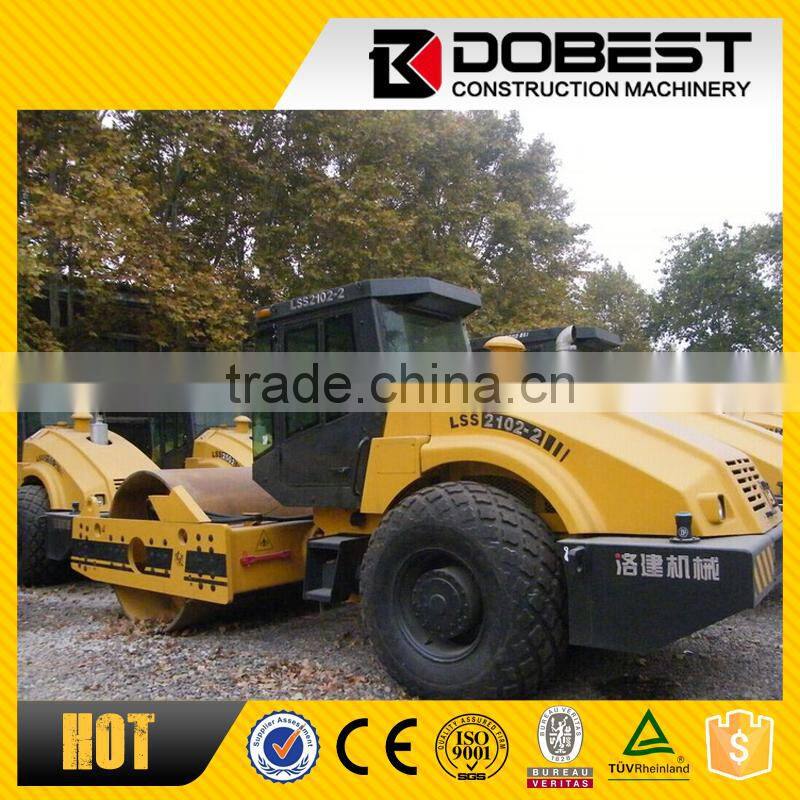

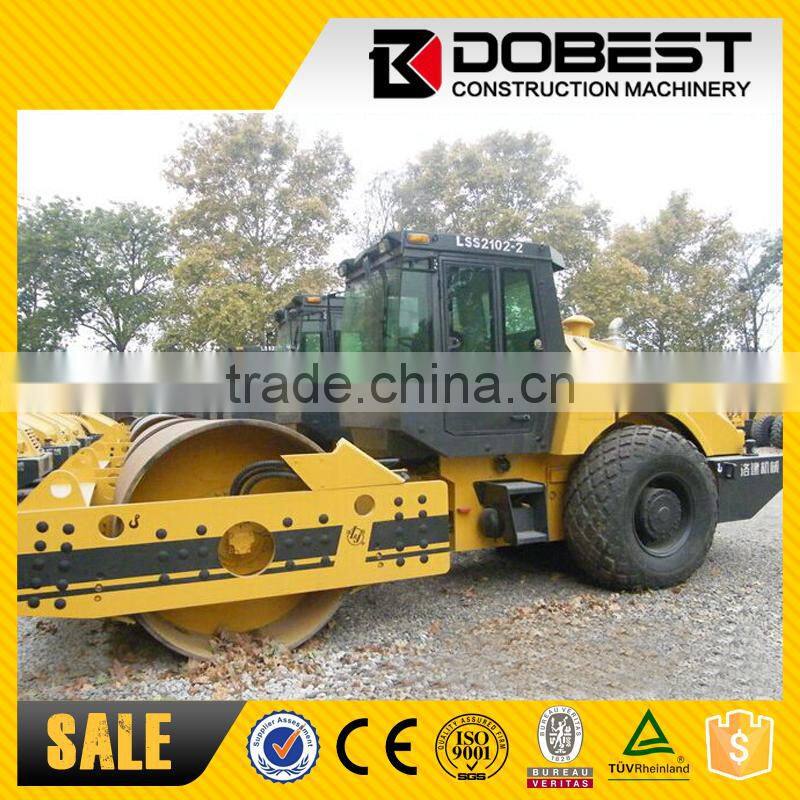

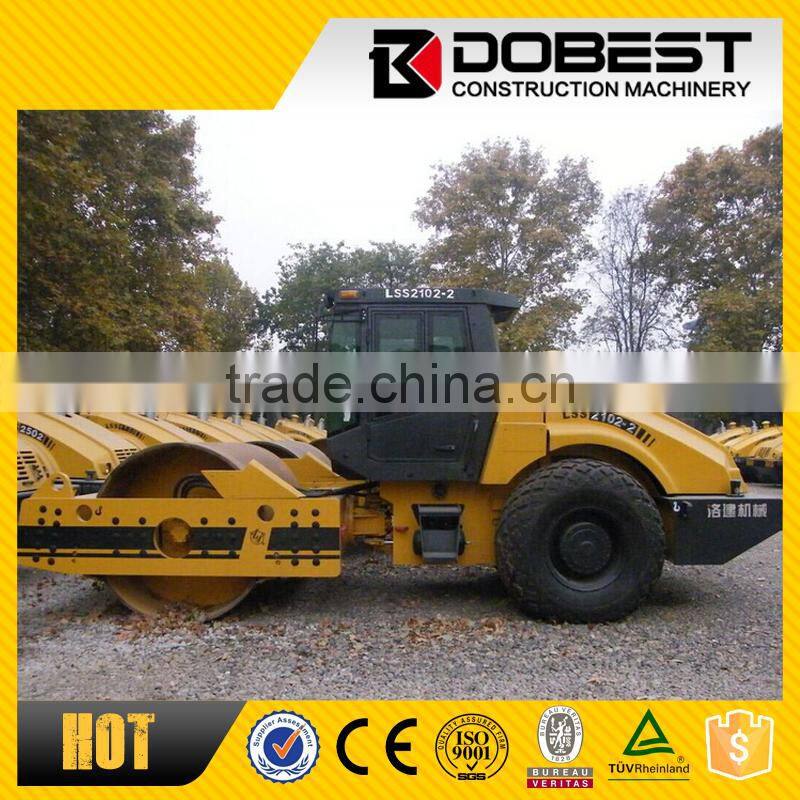

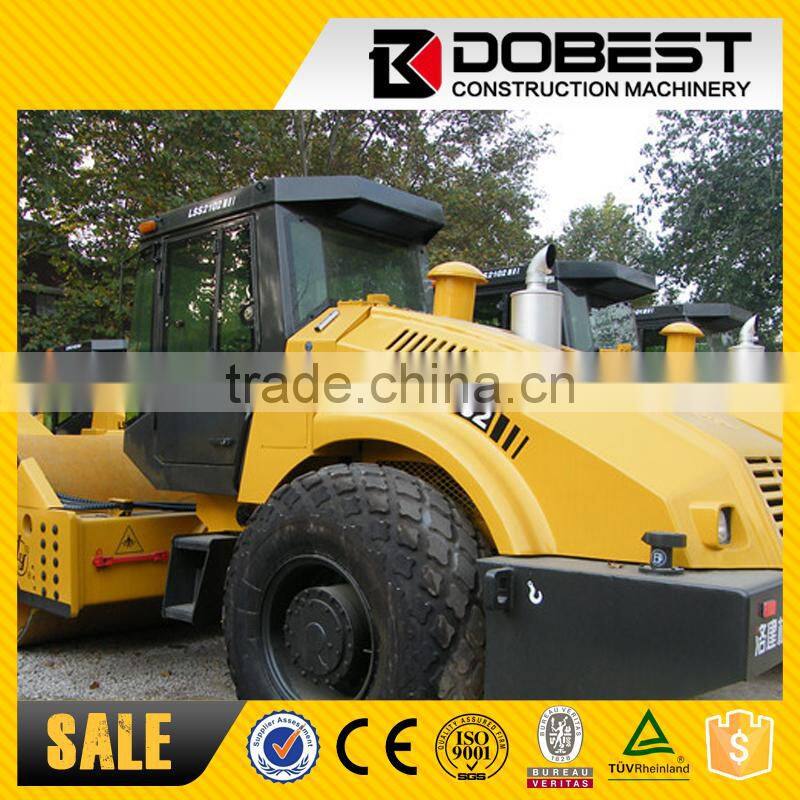

China 21 Ton Single Drum Road Roller LSS2102
21 ton road roller for sale, smooth drum roller
Self-propelled vibratory road roller
Tandem roller 21 ton best selling
Application:
Heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction, which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground.
Main Features:
1.High powerful D6114 Water cooled turbocharged diesel engine; Engine cooling air-path structure and large capacity of fuel tank.
2.Heavy-duty gearbox; Driving axle with greater braking torque.
3.Dual amplitude setting of vibration;New types of vibration device and drum travel bearing structure.
4.Modernized style overall appearance; Driver’s cabin with T type angular glasses.
5.Joint-moving mechanism of the clutch pedal with engine throttle; Adjustable instrument desk with liquid crystal instrument panel.
Technology specification:
Model |
Unit |
LSS2102 |
Operating mass |
kg |
21000 |
Static linear load |
N/cm |
483 |
Vibration amplitude |
mm |
2.0/1.0 |
Vibration frequency |
Hz |
28/35 |
Centrifugal force |
KN |
360/280 |
Max travel speed |
Km/h |
10.5 |
Gradeability |
% |
35 |
Turning radius |
mm |
7500 |
Drum width |
mm |
2130 |
Drum diameter |
mm |
1600 |
Wheelbase |
mm |
3530 |
Ground clearance |
mm |
445 |
Diesel model |
/ |
D6114 |
Diesel power |
kw |
132 |
Overall dimensions |
mm |
6800×2300×3000 |
