ZOOMLION Crawler Crane 100 Tons QUY100
- 100 Unit / Units per Month
- Shanghai Qingdao Tianjin
- T/T L/C D/P D/A Credit Card
- CCS, BV, ABS Approved Marine Ship Telescopic Folding Arm Crane
- China Supplier Single-Arm Rack Floating Crane for Bulk Cargo
- Barge Mounted Crane for Bauxite Discharging Transfer From Vessel to Barge
- Port Grab Crane Coal Bauxite Sand Stone Unloading Crane
- Fixed Type Lattice Boom Port Crane Heavy Duty
- Lattice Boom Port Fixed Crane Widely Usage with Customized Color
Product Details
Condition: | New | Application: | Construction | Rated Loading Capacity: | 100 ton |
Max. Lifting Load: | 100ton | Max. Lifting Height: | 104m | Place of Origin: | Hunan, China |
Brand Name: | ZOOMLION | Model Number: | QUY100 | Certification: | ISO,CE |
Warranty: | 1 year warranty | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
ZOOMLION Mobile Crane 100T

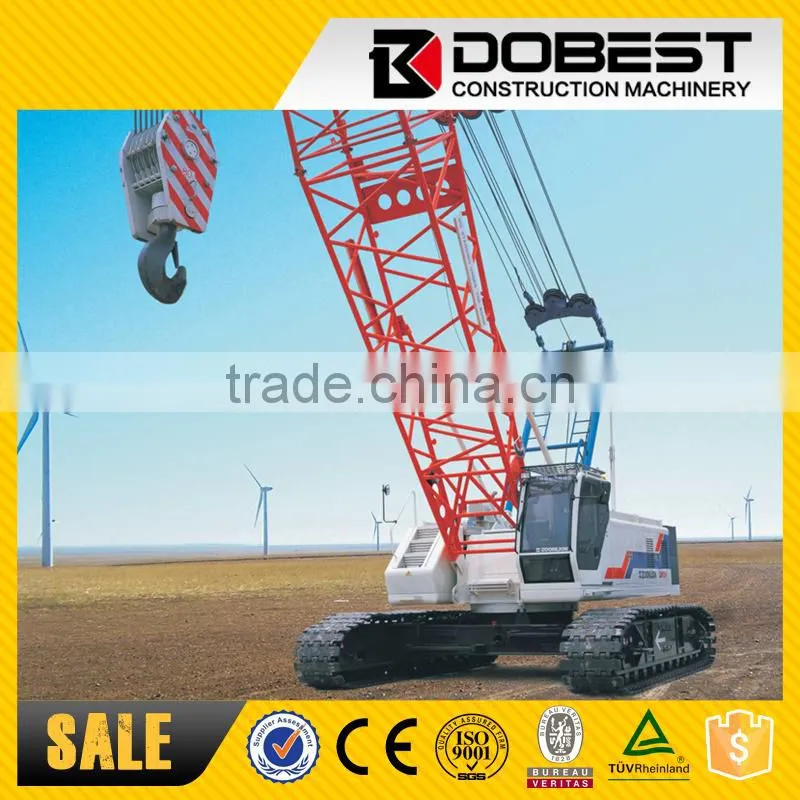

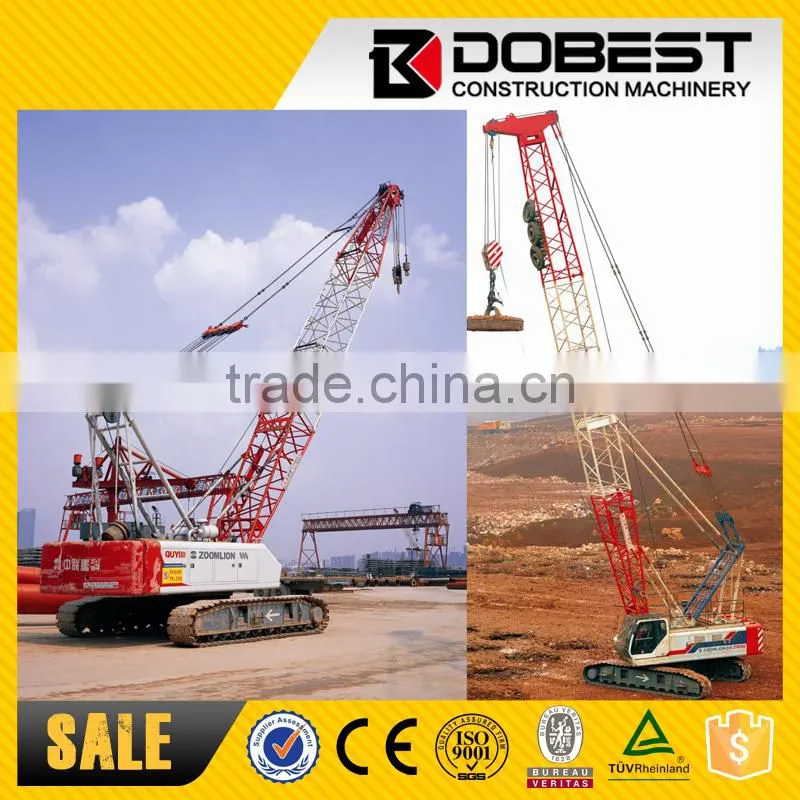

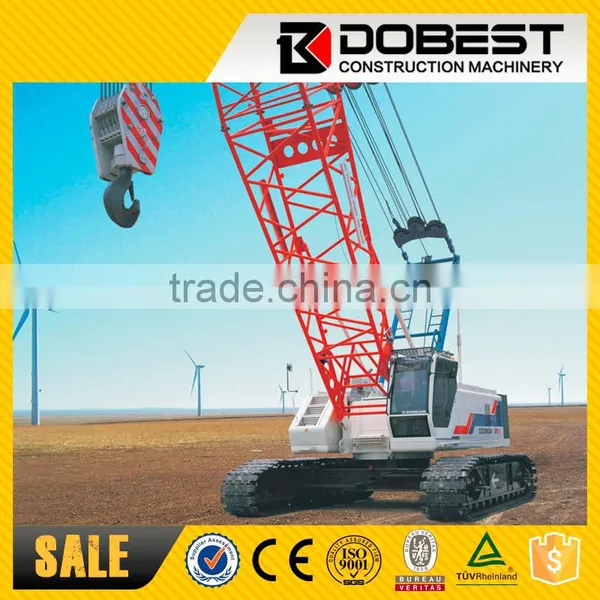

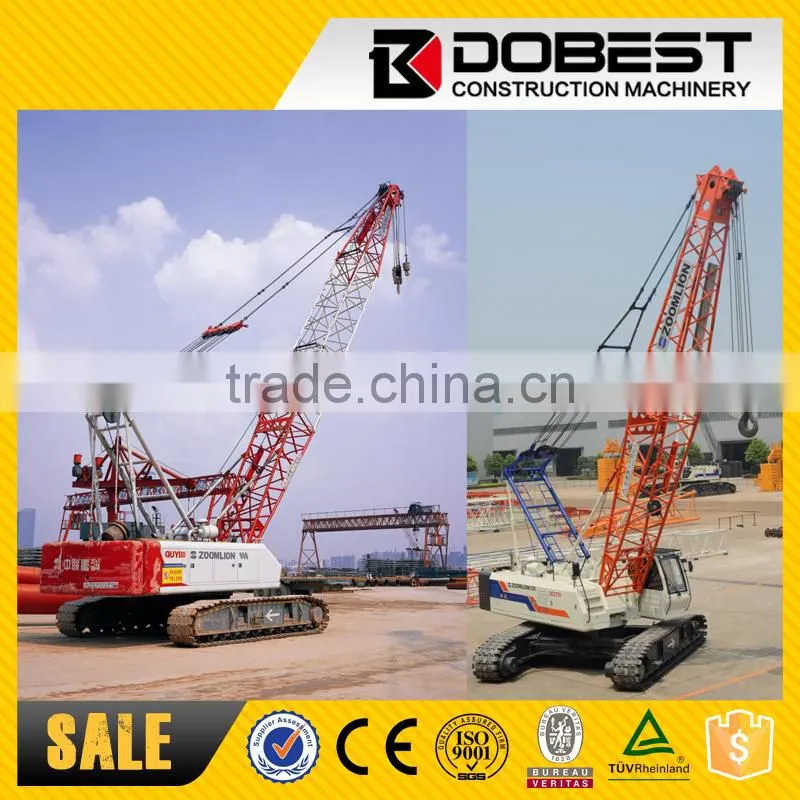

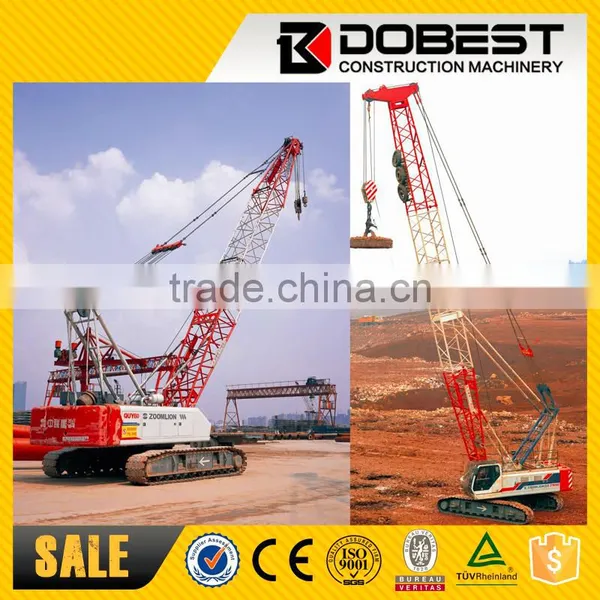

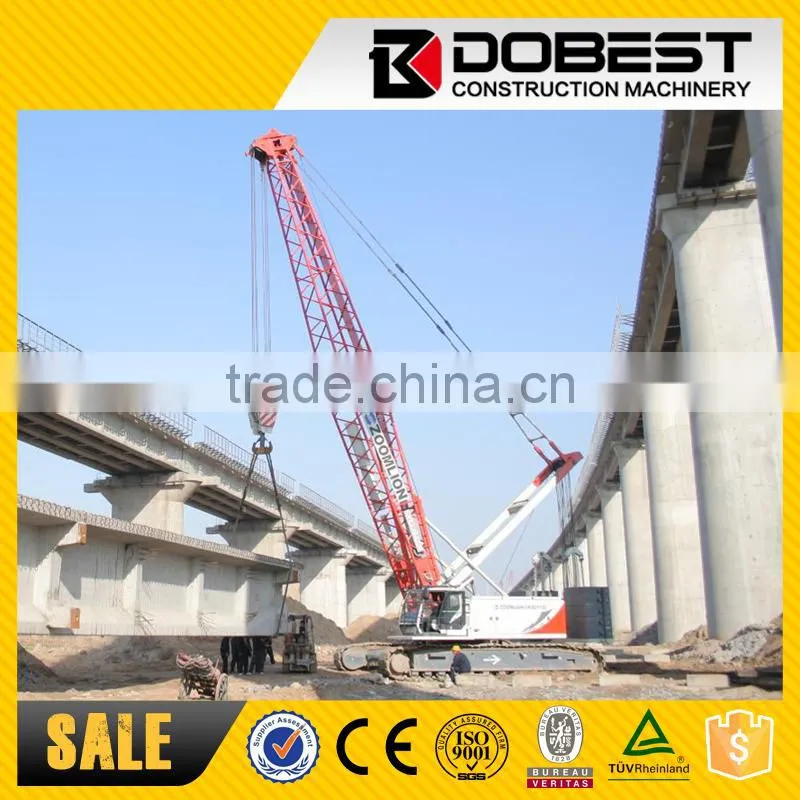

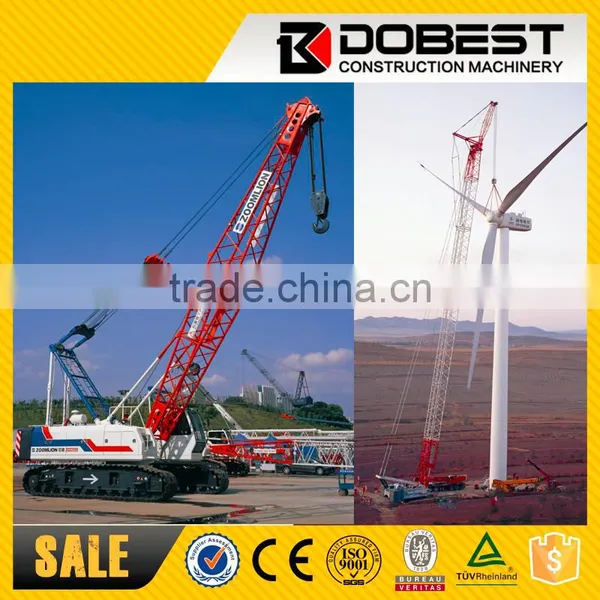

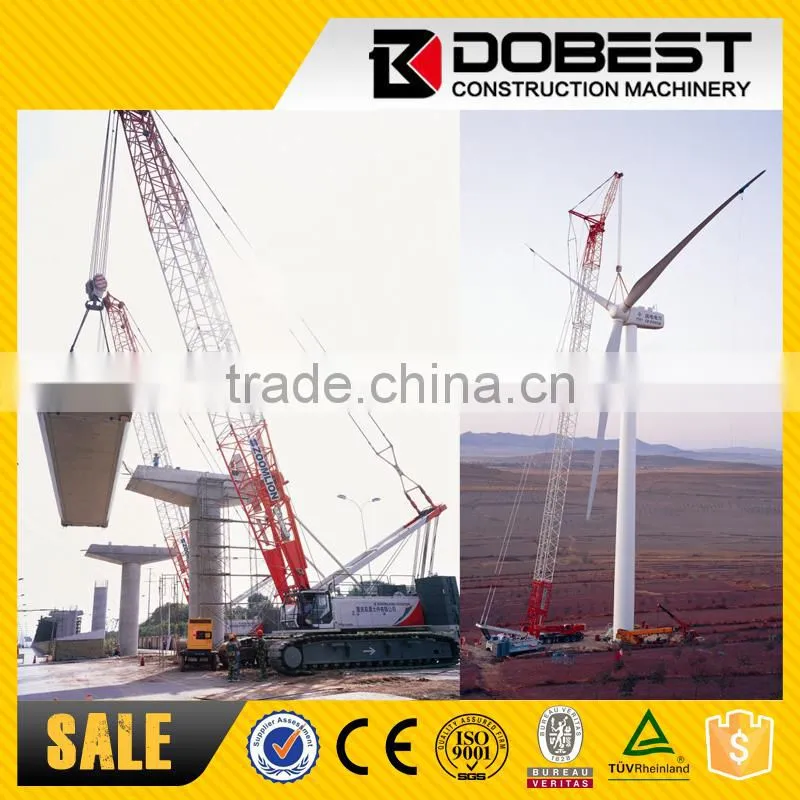

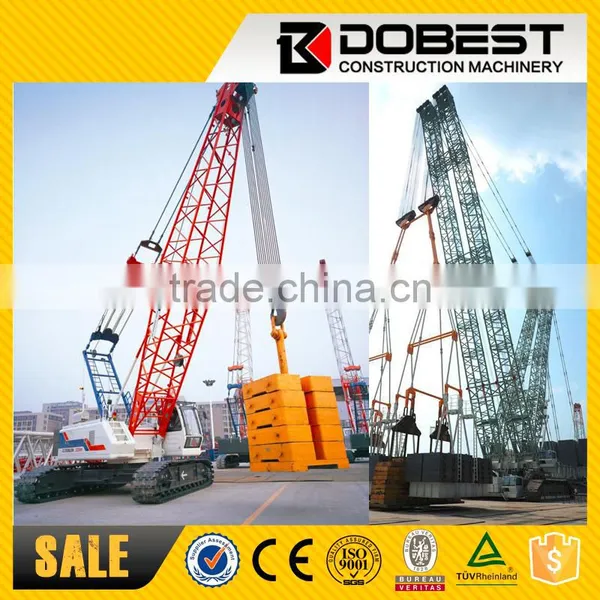

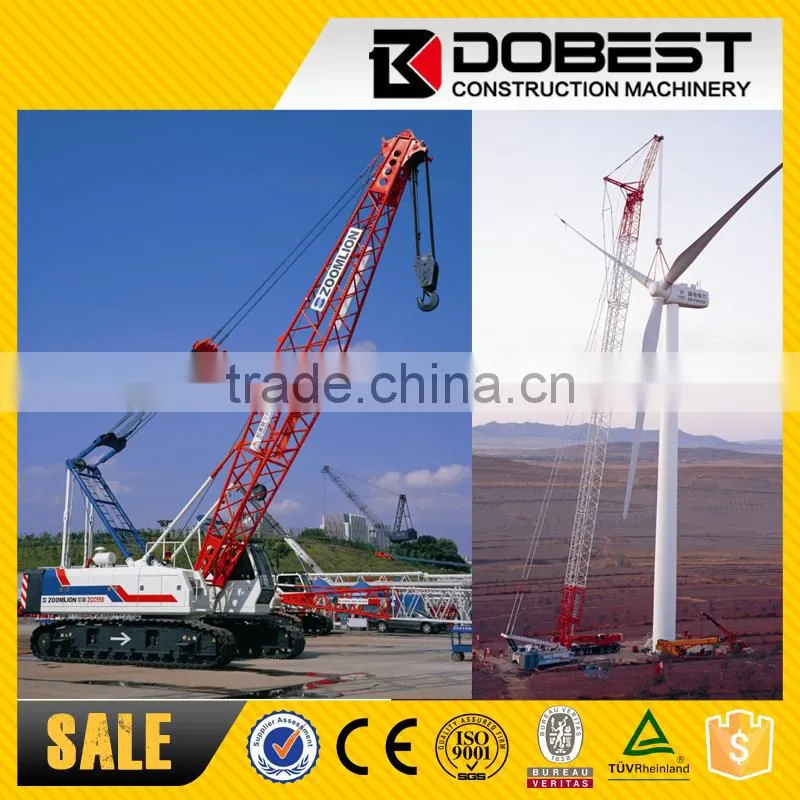

ZOOMLION Crawler Crane 100 Tons QUY100
Main Features:
Model: ZOOMLION QUY100
Transporting state(mm)
Boom length of long jib(m) 19~73m
Boom length of long vice jib(m) 13~31m
Enging brand/enging power(kw) Original USA Cummins / 209kW
Whole machine weight (t) 110t
Max hosting capacity(t) 100t
1. Outstanding lifting capacity: leading the trade and exceeding beyond your imagination!
2. The control system applied to this type of crane is an electronic management system, which adopts CAN bus technology, has intelligent fault diagnosis function and is equipped with intelligent color display.
3. The pendant plate made of high-strength plate, which has taken the place of traditional wire rope, has the advantages of excellent rigidity, light weight, great load-bearing capacity and low wind drag etc.
4. The crane is equipped with a self-assembly/dismantling system. No auxiliary crane is required for loading, unloading, assembly and dismantling.
5. The manufacturing capability and manufacturing level of structural member is in the leading position in the same trade; all the welding seams of boom frame have been given 100% ultrasonic inspection.
6. The operator’s cab can tilt forward and backward 20° automatically.
7. The crane is equipped with Cummins electronic diesel injection engine which has CAN-bus interface and strong rated output power.
8. The closed slewing mechanism has controllable free swing function which can reduce the impacts on the crane and ensure that superstructure starts/stops slewing more stably. The external slewing ring and slewing reducer with great load-bearing capacity and high precision can ensure stable and precise slewing motion.
9. The traveling mechanism can make the crane have high maneuverability and perform such motions as traveling in straight line, one-side crawler steering, differential steering and turning on the spot as well as traveling with load.
10. The crane has many varied configuration options: main boom, main boom with fixed jib, and main boom with luffing jib. Therefore it can satisfy various construction requirements.
11.The main pump control system, which has the functions of advanced load feedback and electrically-controlled power adjustment, makes the crane have good jogging performance so as to satisfy the demands in various working conditions required by customers.
Technical Parameters:
Item | Value | Remarks | |
Max. lifting capacity/Radius t/m | 100/5 |
| |
Deadweight with basic boom t | 110 |
| |
Main boom length m | 19~73 |
| |
Fixed jib length m | 13~31 |
| |
Max. lifting capacity of fixed jib t | 12 |
| |
Offset angle of fixed jib° | 10,30 |
| |
Max. length of main boom with fixed jib m | 55+31,55+25,61+19 |
| |
Luffing jib length m | 24~45 |
| |
Max. lifting capacity of luffing jib t | 24 |
| |
Main boom angle under luffing jib working condition° | 65,75,85 |
| |
Max. length of main boom with luffing jib m | 46+45,49+42 |
| |
Max. speed of single rope on drum | Main winch m/min | 110 | The 4th rope layer |
Auxiliary winch m/min | 110 | The 4th rope layer | |
Derricking winch m/min | 45 | The 4th rope layer | |
Slewing speed rpm | 0~2.2 |
| |
Traveling speed km/h | 0~1.3 |
| |
Gradeability% | 30% |
| |
Ground pressure MPa | 0.1 |
| |
Overall dimensions (L×W×H)mm | 9500×6000×3500 | Without mast and boom frame | |
Engine | Rated power/ rotational speed kW/rpm | 209/2100 |
|
Max. output torque/ rotational speed Nm/rpm | 1425/1400 |
| |
Emission standard | U.S. EPA Tier3 |
| |
Crawler gauge ×ground contact length ×track shoe widthmm | 5200×6850×900 |
|
