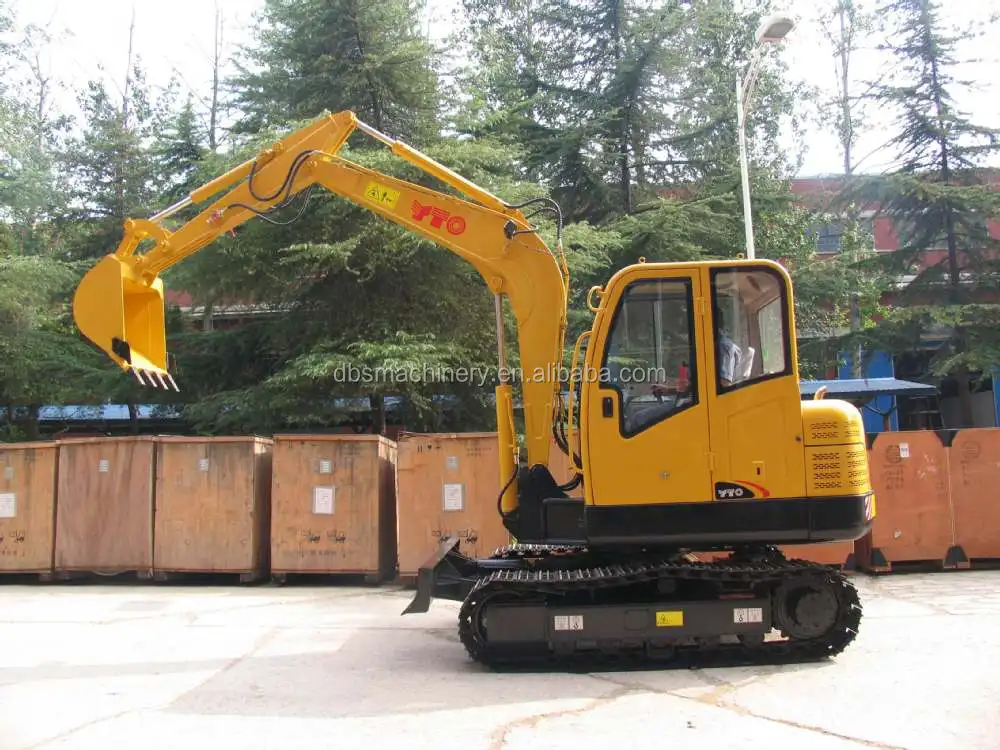

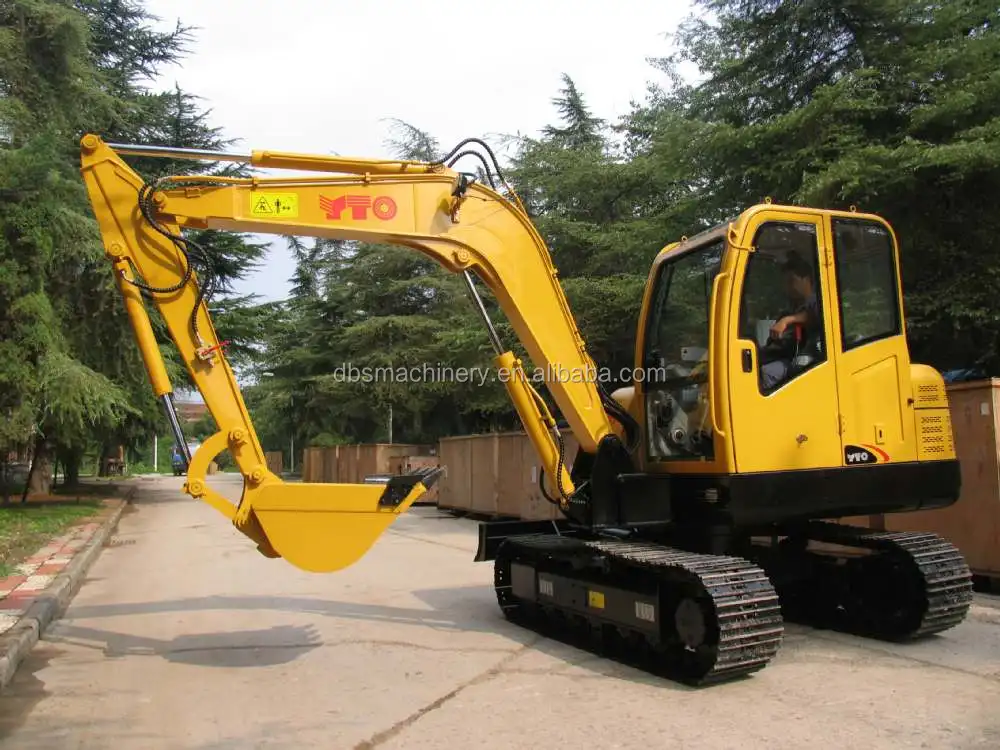

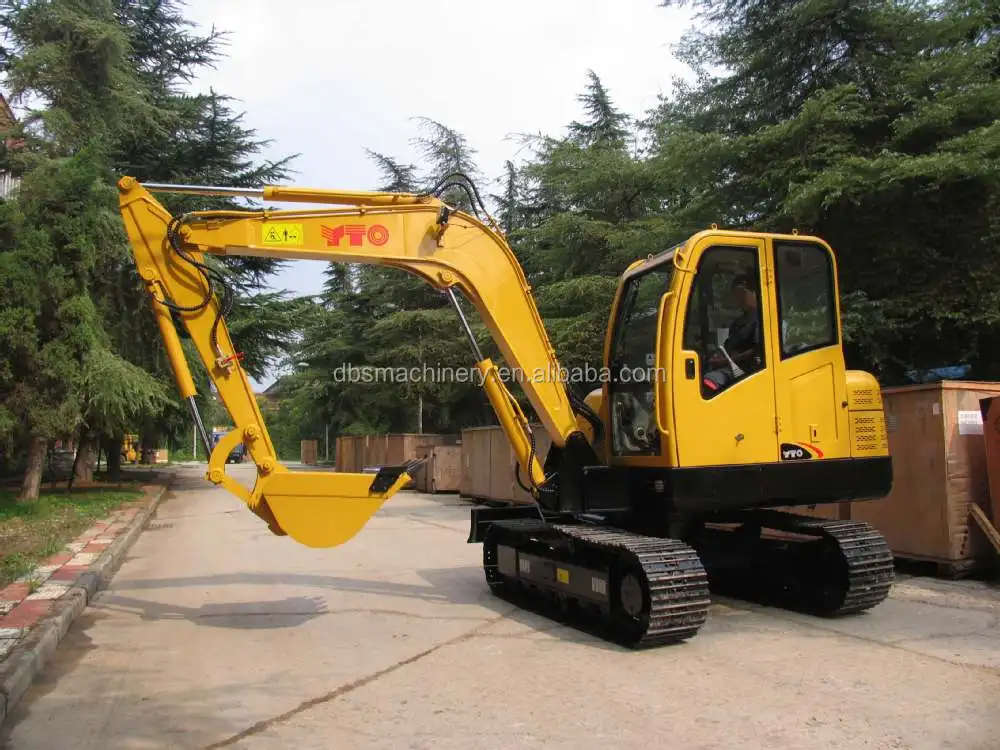

China popular Mini Excavator YTO 6 ton digger WY6-3 for sale
1.Original YANMAR engine
2.Hydraulic pilot valve system
3.Suitable for operation in narrow site
4.LxWxH 5950x1920x2620mm
Imported components YTO WY6-3 yto excavator for sale
Main Features:
1.The original imported engine is used, featured in low fuel consumption and low noise and also it can reach the standard of Euro II.
2. The variable and operable hydraulic system is applied as it features advanced technology and high reliability.
3. With excellent outline, full enclosed, large-vision, the cab is equipped with air conditioning (for cooling/heating ) and sound equipment
4. Many kinds of monitor display and function-control system are centralized in the intellectualized minitype control-panel.
5. With the advantages of lightly and conveniently operating, accurate control, the hydraulic pilot valve system can achieve the elaborate work.
6. Holding the core concept of “excellent performance for high efficiency operation” , the excavator is suitable for the operation in the narrow place for its small volume and turning around 360 angle.
Product Parameters:
Model |
unit |
WY6-3 |
Operating weight |
kg |
5800 |
Bucket capacity |
m3 |
0.22 |
Length/width/height |
mm |
5950×1920×2620 |
Engine model |
YANMAR 4TNV98-SSU |
|
Rated power/speed |
kW/r/min |
43.4/2200 |
Fuel consumption |
g/kw.h |
≤247 |
Fuel tank capacity |
L |
90 |
Rated flow |
L/min |
170 |
Implementation circuit |
Mpa |
22 |
Swing speed |
r/min |
0-10 |
Bucket digging force |
kN |
40 |
Arm digging force |
kN |
25 |
Max.traction force |
kN |
58.5 |
Traveling speed |
km/h |
0-2.3/0-4.4 |
Gradeability |
° |
30 |
Ground pressure |
kPa |
33 |
max.digging radius |
mm |
6150 |
max.digging height |
mm |
5515 |
max.dumping height |
mm |
3730 |
max.digging depth |
mm |
3820 |
overall length |
mm |
5950 |
crawler length |
mm |
2590 |
Wheelbase |
mm |
1990 |
counter weight ground clearance |
mm |
740 |
overall height |
mm |
2620 |
tail turning radius |
mm |
1650 |
roof width |
mm |
1850 |
crawler height |
mm |
645 |
min.ground clearance |
mm |
325 |
crawler width |
mm |
400 |
Crawler gauge |
mm |
1520 |
chassis width |
mm |
1920 |
earth-moving shovel(width/height) |
mm |
1920×320 |
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
