China Mini Loaders Manufacturer ZL10, ZL12, ZL15, ZL18, ZL20, ZL30

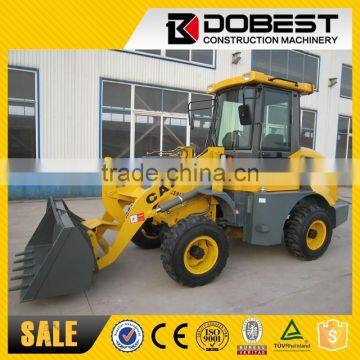

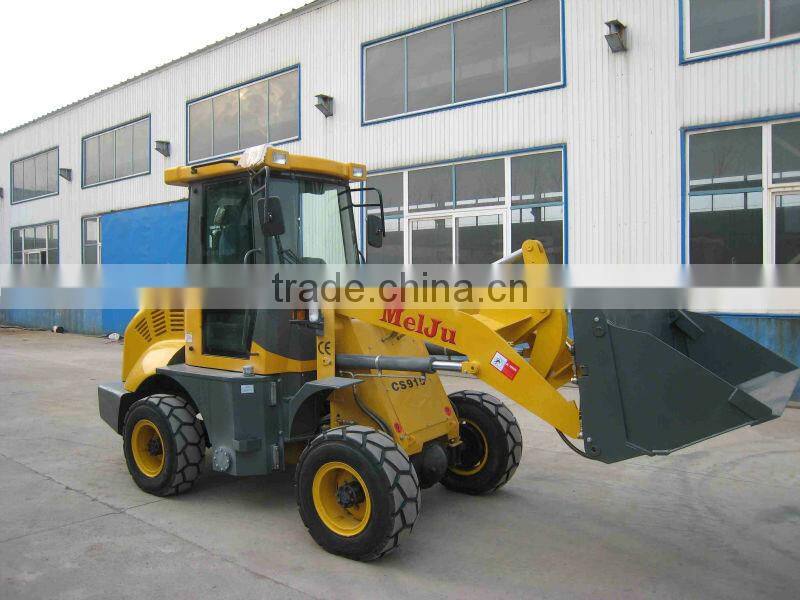

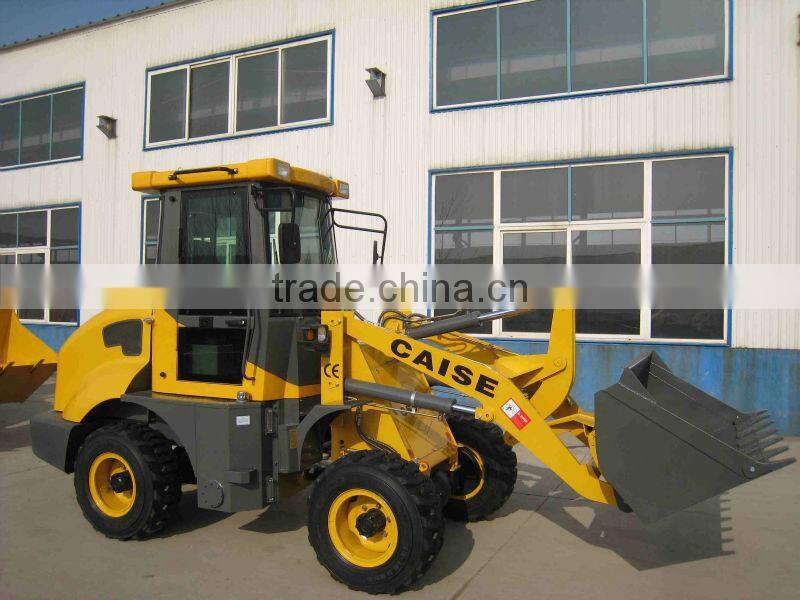

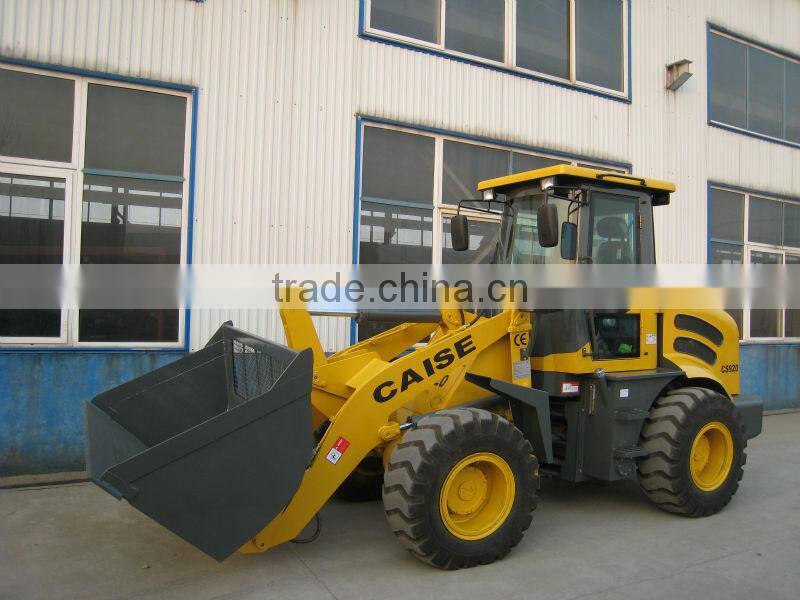

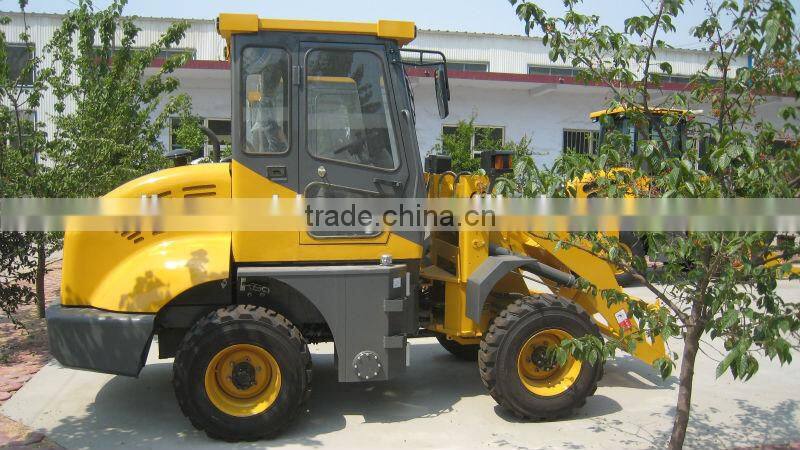

CS912 Mini Loader For Sale
CS912 wheel loader is a mini sized engineering machinery and specially designed for loading and unloading, bulldozing and drawing slack materials in machinery construction as well as household work.
Hydrotatic transmisson: Smooth transmisson, little noise and high transmisson ratio.
New design cabin, openable push and pull window and radio are the standard equipments for this loader.
Straight controlling three ways valve: Apply the advanced Italian technology, which guarantess the reliable control of the equipments.
Mode |
CS912 |
Rated loading weight |
1200kg |
Rated bucket capacity |
0.54CBM |
Track base |
1400mm |
Wheel base |
1950mm |
Min.swerve diameter |
4400mm |
Min.ground clearance |
260mm |
Dump height fully raised |
2580mm |
Reach fully raised |
860mm |
Lifting time |
Less than 5.0s |
Driving mode |
Four-wheel full hydraulic drive |
Transmission gear box form |
2 gear hydraulic variable speed changes |
Operating weight |
3200kg |
Dimension (L*W*H) |
4850 *1650 *2800mm |

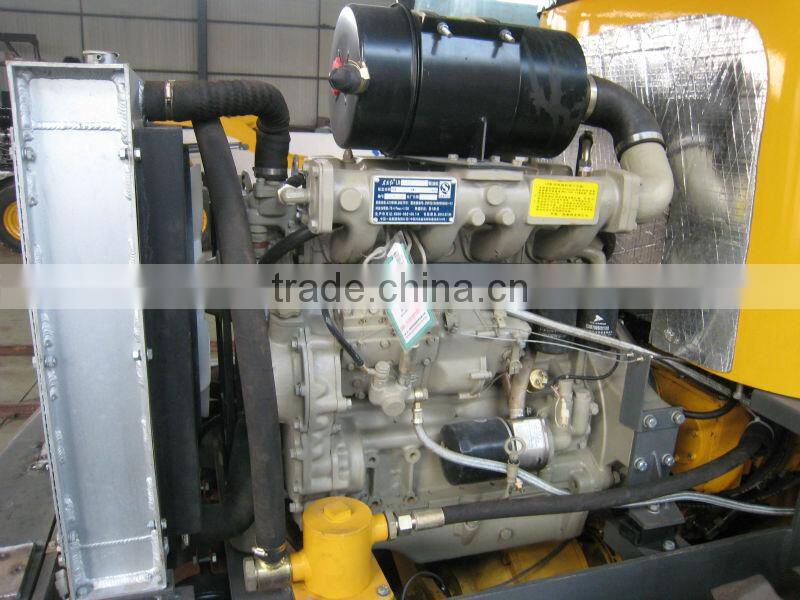

Engine model |
490BG |
Rated speeds |
2400rpm |
Max.tilt angle |
30% |
Max.bucket breakout force,lift cylinder |
40KN |
