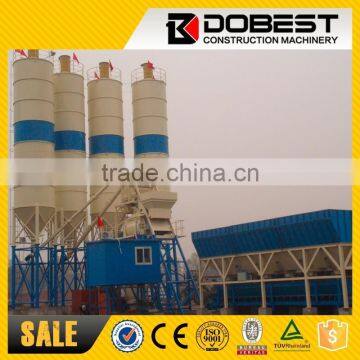

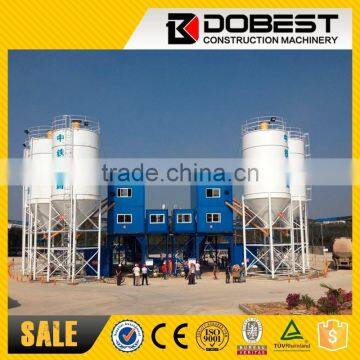

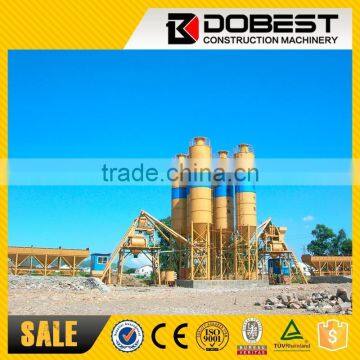

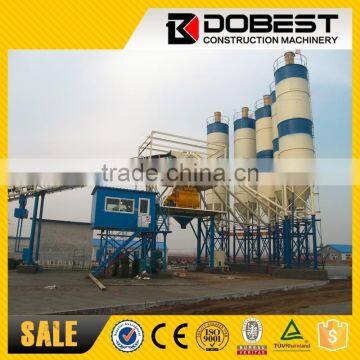

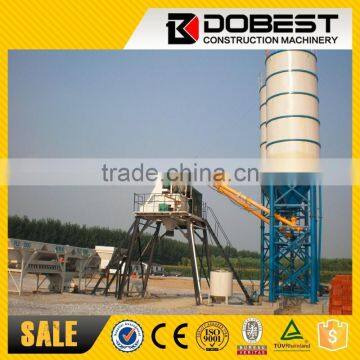

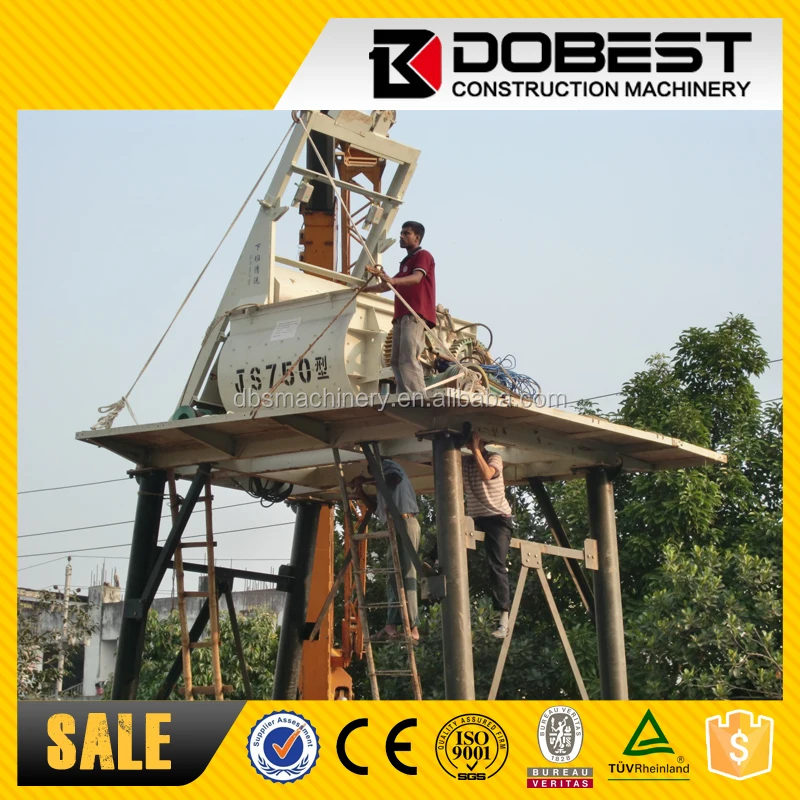

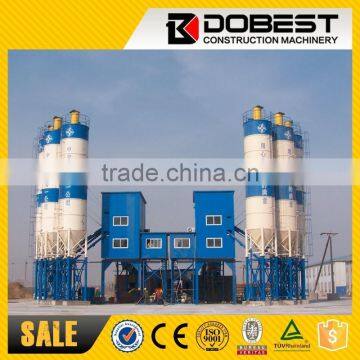

HZS120 Belt Conveyor Stationary Concrete Plant 120 m3/h

Capacity: 120 m3/h
Mixing Time: 60 S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 120 KW
Total Weight: 80 Ton

Total Dimensions: 41600×12700×19400 mm

HZS series Ready Mix Concrete Plant, also named as concrete batching plant, It is suitable for the commodity concrete and concrete construction in each kind of architectural project, including the water conservancy , the electric power, the railroad, the road, the tunnel, the arch of bridg , the harbor-wharf and the national defense-project and so on, the applicable scope is extremely wide spread. It can mix the hard concrete, plastic concrete, liquid concrete, and various other lightweight aggregate concrete. The plant has various operational modes as fully automatic, semi-automatic and manual and so, a high degree of automation.

Features of Central Mix Concrete Batch Plant:
1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed
2. With its modularization structure, it is easy to transport, install and debug more quickly.
3. Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
4. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
5. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable
6. PC+PLC control system ensures the high reliability.
7. With its virtue of precise computation, it can meet the requirement of every high performance concrete.
8. Human-based intelligent control facilitates the operation greatly.
9. Structural members are durable, and most electric elements adopt world famous brands.

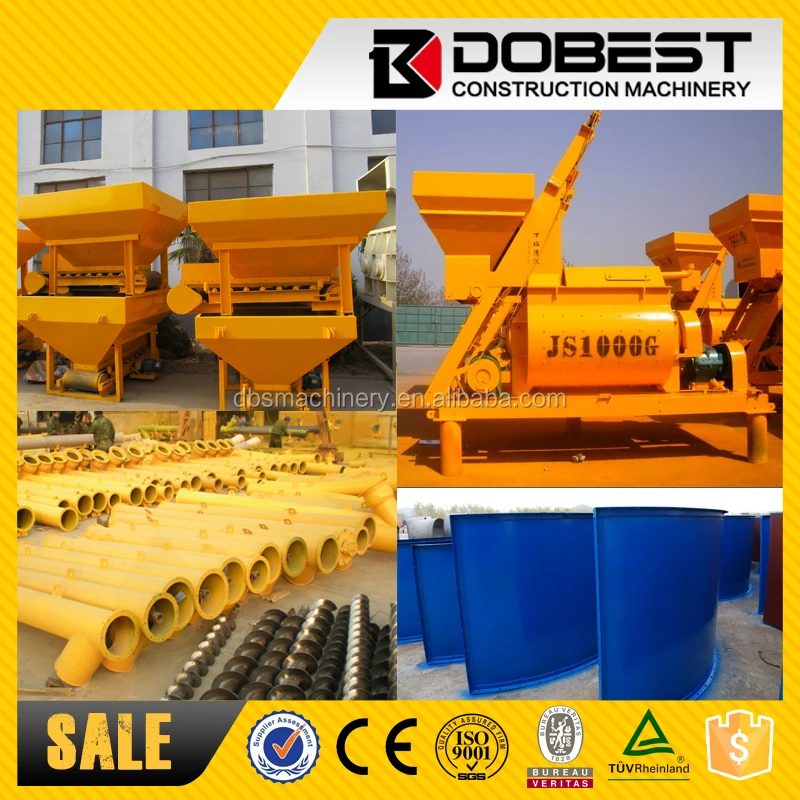

1. MIXING SYSTEM

Twin Shaft Concrete Mixer: JS2000

Volume: 3200L

Capacity: 2000L

Mixing Blade: 2×9 pcs
Mixing Speed: 23.1 r/min

Mixer Motor: 2×37 kw

Weight: 9200kg
Dimensions: 3810×2480×17100mm

2. AGGREGATE SYSTEM

2.1 Aggregate batcher: PLD3200

Volume: 4×15 m³

Capacity: 192 m³/h

Power: 11kw

Weight: 1020 kg

Dimension: 12120×3960×4800mm

2.2 Aggregate belt conveyor:  1 unit
Belt width: 1000 mm

Belt speed: 1.6 m/s

Power of Motor: 22 kw

3. CEMENT SYSTEM (OPTIONAL)

3.1 Cement silo 4 units

Capacity: 100t×4=400t

Silo Diameter: Φ3000

3.2 Cement Screw Feeder  4 units

Diameter: Φ273mm

Length: 9m

4. ADDITIVE SYSTEM (OPTIONAL)

Additive silo Capacity: 1m3

Pneumatic Valve: Φ50 mm

Pump: 2×3kw

5. WATER SYSTEM

Motor Power: 7.5kw

Butterfly Valve: Φ150 mm

Capacity: 150m3/h

6. AIR SYSTEM

Air Compressor: 1unit

Power: 11 kw

Pressure: 1.0 Mpa

Air flew: 1.2 m3/min

7.  WEIGHING SYSTEM

7.1 Aggregate Weighing: 1unit

Weighing Capacity: 5000kg

Precision: 1%

7.2 Cement Weighing: 1unit

Weighing Capacity: 1200kg

Precision: 1%

7.3 Water Weighing: 1unit

Weighing Capacity: 400kg

Precision: 1%

7.4 Additive Weighing: 1unit

Weighing Capacity: 50 kg

Precision: 1%

8. CONTROL SYSTEM
PLC command and control operation

Main electrical components: SCHNEIDER or SIMENSE

17'' colorful computer

Manuel and Auto Control is freely changeable

Specification of HZS Series concrete batching plants:
