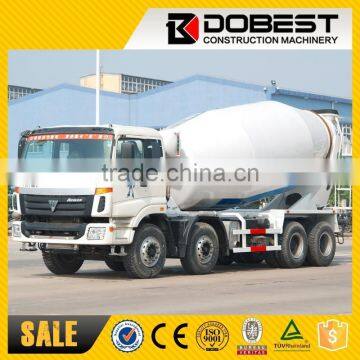

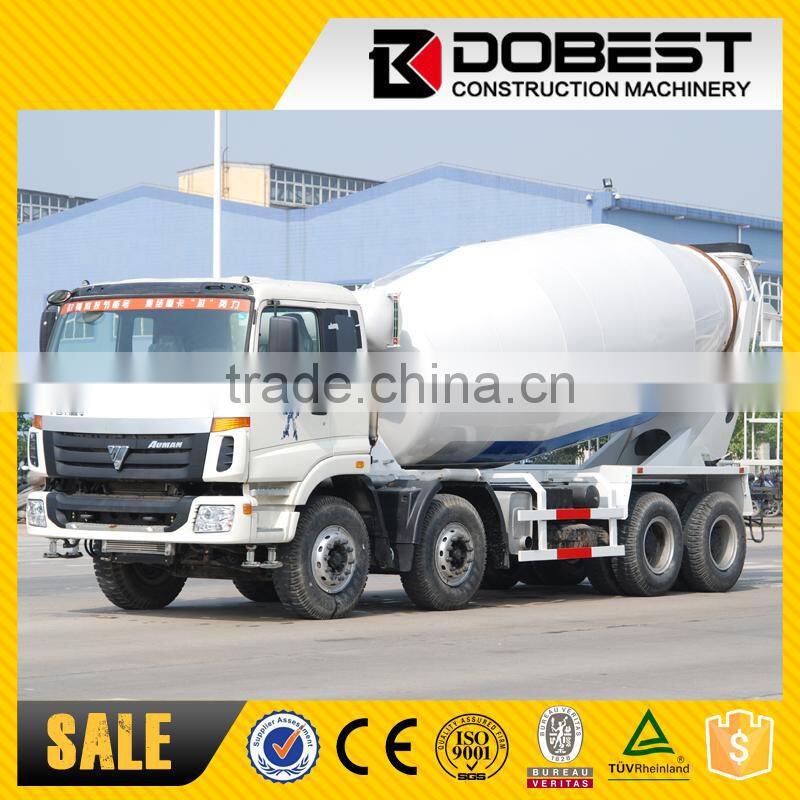

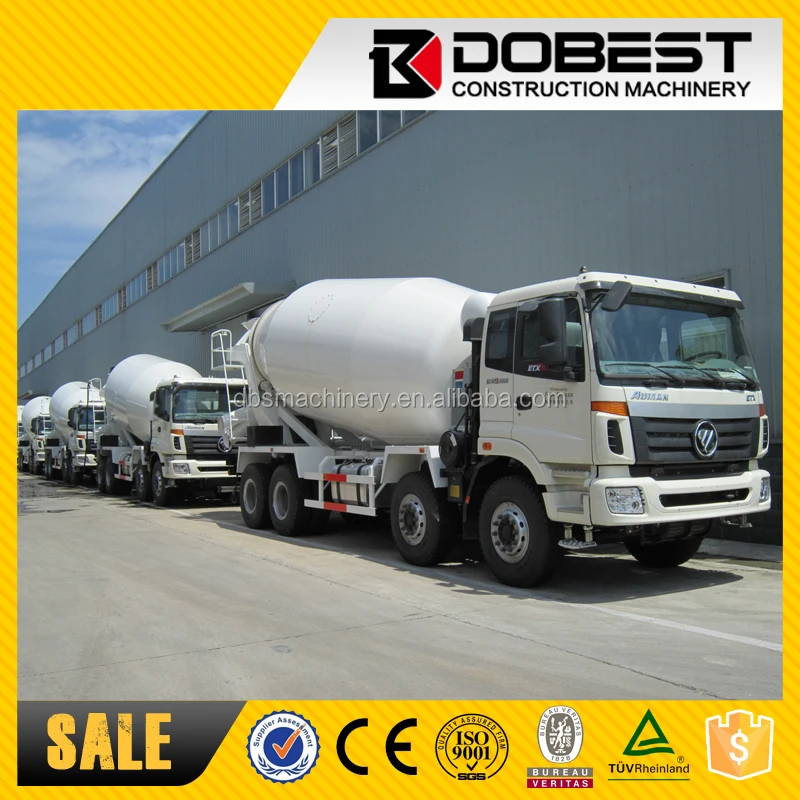

Help CenterHot Selling FOTON AUMAN Concrete Mixer Truck 8M3 10M3 12M3
Related Products
-
SINOTUCK HOWO Transit Mixer Truck 12M3NegotiableMOQ: 1 Unit -
SINOTUCK HOWO Concrete Mixer Truck 10M3NegotiableMOQ: 1 Unit
-
DFAC 12CBM Concrete Transit Mixer for SaleNegotiableMOQ: 1 Unit
-
DFAC 10M3 Concrete Transit Mixer for SaleNegotiableMOQ: 1 Unit
-
DFAC 9M3 Mobile Concrete Truck Mixer for SaleNegotiableMOQ: 1 Unit
Mobile Concrete Truck Mixer 6m3, 8m3, 9m3, 10m3, 12m3, 14m3
SINOTUCK HOWO/DFAC/XCMG/SHACMAN/CIMC/FAW/FOTON AUMAN
Concrete Mixer Truck, Truck Mounted Concrete Mixer, Transit Mixer
Concrete Mixer Truck 3~16CBM, Transit Mixer:
1. Pleasing apperance, reasonable layout, cost-effectiveness;
2. Imported pumps, motors and reducers to ensure their reliability;
3. Mixer Drum is constructed of special wear-resistant material for great durability;
4. Italy or USA oil pump (PMP ARK Rexroth Messori), hydraulic motors(PMP ARK Rexroth Messori), Bonfili decelerator (TOP ZF decelerator is optional)
Description of Concrete Truck Mixer:
A concrete truck mixer or called a concrete transport truck/in–transit mixer are made to transport and mix concrete from a factory/plant to the construction site. It has been seem as a kind of indispensable construction machinery/construction equipment.
Features of Concrete Truck Mixer:
Concrete truck mixers(concrete transport trucks/in–transit mixers) are charged with dry materials and water, with the mixing occurring during transport. Or sometimes some concrete truck mixers can be loaded with 'Ready Mixed' concrete.
Applications of Concrete Truck Mixer:
Concrete truck mixers(concrete transport trucks/in–transit mixers) are widely applied in the construction site to provide concrete for road-making, bridge-building, channel-making, etc.
Working principle of Concrete Truck Mixer:
These concrete truck mixers draw out the power for the truck chassis to drive the variable pump in the hydraulic system. So as the mechanical energy can be changed into hydraulic energy then passed to rated motor. Then the motor drives the redactor which can start the mixer/drum and mix the concrete.
Specifications of Concrete Truck Mixer:
Quality performance |
Overall weight (kg) |
24980 |
24500 |
|
Overall equipment weight (kg) |
11925 |
9900 |
||
Max. load weight (kg) |
13055 |
14600 |
||
Overall size (mm) |
8100x2490x3750 |
8480x2490x3794 |
||
Chassis performance and specification |
Chassis type |
CWB459HMZ |
ZZ1252N3246F |
|
Wheelbase (mm) |
3200+1300 |
3225+1350 |
||
Tread (mm) |
2045/1860 |
1939/1800 |
||
Max. speed (Km/h) |
96 |
75 |
||
Min. steering radius (m) |
7.9 |
9.3 |
||
Min. ground clearance (mm) |
240 |
314 |
||
Leave-taking angle (°) |
18 |
22.5 |
||
Engine |
PF6 |
WD615.68A(69) |
||
Model |
6-Cylinder water-cool/ after-cooled, turbocharged |
6-Cylinder after-cooled, turbocharged |
||
Overall let/power (L/Kw) |
12.503/253 |
9.726/225(247) |
||
Mixed cylinder performance |
Geometry cubage (m3) |
10.6 |
||
Available cubage (m3) |
8 |
|||
Tilt angle (°) |
14 |
|||
Mixed cylinder speed (r/min) |
0~14 |
|||
Turning direction(from back-end) |
Material-in wider shins,material-out deasil |
|||
Material-in speed m3/min |
≥3 |
|||
Material-out speed m3/min |
≥2 |
|||
Remainder rate (%) |
≤1.0(When fallen concrete amount to 80~90mm) |
|||
Rear parts ass’y |
Material-in input(long*width)mm |
1035X996 |
||
Material-out output long (mm) |
1734 |
|||
lengthen output long (mm) |
780 |
|||
Hydraulic transmission system |
Pump |
Model |
Rexroth A4VTG90HW/32L |
Rexroth A4VTG90HW/32R |
Max. work pressure MPa, Exhaust of cylinder ml/r |
35 , 90 |
|||
Engine |
Model |
Rexroth AA2FM80/61W |
||
Max. work pressure MPa, Exhaust of cylinder ml/r |
35, 80 |
|||
Decelerater |
Model |
German ZF P4300 |
||
speed rate |
135.3 |
|||
Oil tank/radiator |
AKG assembled oil tank17L&strong- cold radiator |
|||
Water supply system |
Water tank cubage (L)/water pump model |
250/WP24-180B12(DCP24-180B12) |
||
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
