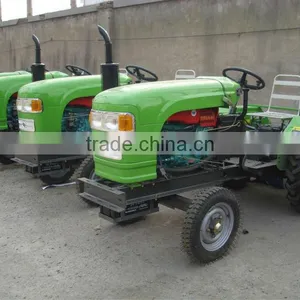

TS Single Cylinder V-belt Type Tractor

Model

HAOTIAN—180

Basic Type

Electric Started

Type

Middle Track

Type

Wide Track

Type

Type

4×2 Wheeled

Rated Pull(N)

3724

Main

Size

(mm)

0verall

Size

Length

2630

Width

1170

1410

15lO

Height

1290

Wheel Base

1400

Tack

Front Wheel

900

l 140

1240

Rear Wheel

960

1200

1300

Minimum Ground

Clearance

295

Steering Radius(m)

2.8±0.2

2.9±0.2

3.O±O.2

I

2.48

Ⅱ

5.77

Theoretical

Ⅲ

7.77

Speed

IV

9.1 l

(Km/h)

V

18.1 l

VI

28.82

Reverse

4.82

Dry Mass(Steel RiIlg)

845

825

}

830

Mass

Operation Mass

1110

1115

1120

(kg)

Ballast

Front ballast

0

Rear Ballast

25

Note:

1.The overall length is the distance from front ballast or bumper to the rear end of the lower links

when the lower links are at horizontal position.The overall width is the distance between the two

outsides of the rear wheels.The height is the distance from ground up to the top of steering wheel.

2.Operation mass includes operator weight,ballast,fuel,cooling water,etc

3.The theoretical speed is calculated by using the engine speed of 2200 rpm and the type model 7.50

-20(big size wheel).The type 7.50-16(small size wheel)also can be used according to the

demands of the user .
