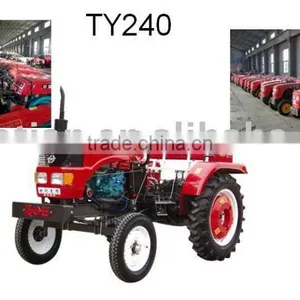

Garden Tractor 240

Brief

   TY 4WD Gardening Tractor, in another name of 4WD Greenhouse King Tractor, is suitable for gardening, greenhouse, lawn and family work. It is assembled with creeping shift, double stage clutch, dual-way hydraulic output and hydraulic steering, which is popular in international market. With the characteristic of compact structure, mini size, reasonable power, various function, easy operation, reliable performance and enviroment protection, it is a right tractor for famiy and small farm for agriculture and gardening.
    It assembled wit3T30diesel engine, 22.06 kw with or without EPA certificate. Many options are available according to users requirments: single stage clutch or double stage cultch, (3+1)×2 gearbox or  (4+1)×2 gearbox, creeping shift (with 8 shifts gearbox), single speed PTO or double speed
PTO, dual-way hydraulic output, ROPS and sunshine shield.

 Main Technical Specification

Model

TY304B-1

Type

4×4 Wheeled type

 Length

2589

 Width

1230

 Height

1228

Dimensions

 Front wheel

1000

of Tractor(mm)

Tread

 Rear wheel

960

 Wheel base

1670

Min. Ground Clearance

215

2.9

One-side braking

Min. Radius of Turning Circle(m)

No brsking

3.3

 Dry Mass(kg)

1100

Engine

Model

LD3T30

Type

3-cylinder, Vertical, Water Cooled and 4-Stroke

Bore×Stroke(mm)

85×90

Displacement(L)

1.532

Rated Power(KW)

22.06

Rated Rev.(r/min)

2400

Max. Torque(nm)/Rev.(r/min)

89/1650

Min. Consumption(g/kw*h)

238

Dimensions (mm)

567× 494× 610

Dry Mass(kg)

180

Fuel

Diesel

Clutch

Single Disc, Dry-friction, Single Stage/Double
Stage Clutch

Transmission

(3+1)×2 or (4+1)×2or(4+1)×2×2Mechanical Type

Steering

Mechanical Type or Hydraulic Type

Hydraulic Output

Single -way output or single/dual-way quick couplingoutput

Suspension

Post Positioned Tri-point Suspension, Catalogue O

Type

PTO

Type and Rev.(r/min)

Single speed Non-independent type540 or double speed Non-independent Type 540/1000,540/720 or Semi-independent double speed type 540/1000,540/720

Spline Size (mm)

Post positioned I35 Rectangle Spline with 6 teeth (6×28.91×34.79×8.69)

Forward

1.77-26.98

Theoretical Speed (km/h)

Reverse

0.33-5.02

Tyre

Front Wheel

5.00-12

Rear Wheel

9.50-16

Structure and specification are subject to change without notice.
