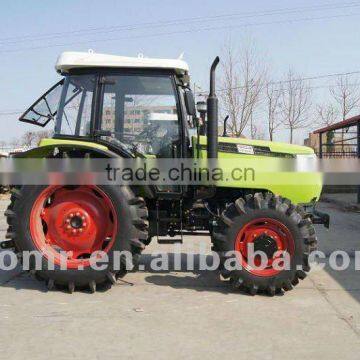

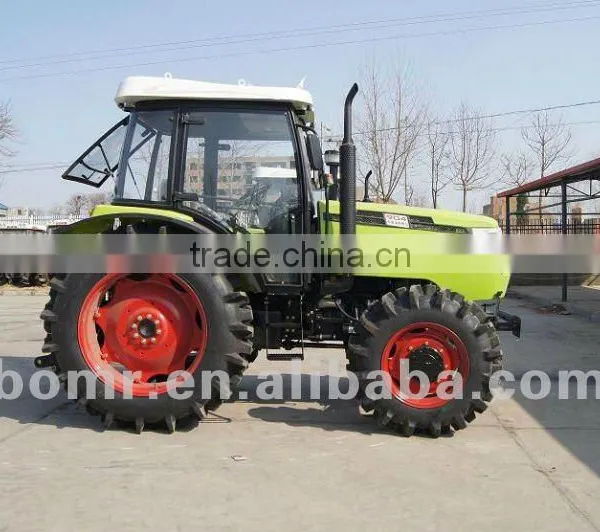

BOMR FIAT Luxurious Cab Wheeled Tractor (904 Cab)
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BOMR FIAT Gearbox Diesel Farm Tractor (904 Air Brake)NegotiableMOQ: 1 Unit -
BOMR FIAT Gearbox Hydraulic Steering Agricultural Tractor (900 Swing Traction)NegotiableMOQ: 1 Unit
-
BOMR FIAT Gearbox Diesel Agricultural Tractor (954 Swing Traction)NegotiableMOQ: 1 Unit
-
BOMR FIAT Gearbox Hydraulic Steering Agricultural Tractor (954 Shuttle Shift)NegotiableMOQ: 1 Unit
-
BOMR FIAT Gearbox Hydraulic Steering Wheeled Tractor (954 Hydraulic Output)NegotiableMOQ: 1 Unit
Condition
New
Type
Wheel Tractor
By wheel
4WD
Usage
Farm Tractor
Certificate
EPA
Brand Name
BOMR
Model Number
BOMR 904
Place of Origin
Henan, China
Specifications
1. 12+12 shuttle shift2. Turbo charge
3. Italy fiat chassis
4. Increase 30% efficiency
5. Save 25% of fule
The characteristic of tractor from 70hp to 100hp
- Our tractors have YTO or Quanchai engine; the engine has the strong power and high quality.
- Gearbox has 12 forward shifts and 4 reverse shifts.
- The side shift control made the shifting more comfortable and humanistic.
- Gearbox and rear axle use engagement sleeve shift. Shifting flexibly and stably, never neutral
- Hydraulic steering system has independent oil circuit.
- Independent PTO shaft has so many speed of rotation to choose. For example, 540/760/850/1000. It can meet customer’s different requirements when using tractor in the farm.
- Pedal operated hydraulic driving brake system and hand shank operated mechanical parking brake system, made the brake system is safety and reliable.
- Force buried lifter (force, position comprehensive control and floating control) is using reliably and mending conveniently. Hydraulic system use oil separate structure, which has strong lifting capacity. It matches with many large agricultural implements.
- 1 or 2 pair hydraulic outputs can be chose. And air-brake can be chose.
10. Use 4 planetary wheeled differential, transmission stably and reliably.
11. Our tractor adopt underneath double diesel tank. The diesel tank’s volume is large, which reaches 150L. And it is satisfied with using tractors for long-time.
12. Reinforced 3 point-suspension postposition is stronger, using reliable and long life. The bottom tie rod can float
| The Main Specification of Bomr 90hp tractor | |||||
| Tractor Model | BOMR900 | BOMR904 | BOMR950 | BOMR954 | |
| General Specification | Driver Type | 4×2 | 4×4 | 4×2 | 4×4 |
| Length×width×Height(mm) | 4550×2050×2850 | 4520×2170×2530 | 4550×2050×2850 | 4520×2170×2530 | |
| Traction force(KN) | 17.7 | 19.8 | 18.7 | 20.9 | |
| Steering | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| Wheel base(mm) | 2195 | 2314 | 2195 | 2314 | |
| Front wheel tread(mm) | 1385-1685 | 1562-2000 | 1385-1685 | 1562-2000 | |
| Rear wheel tread(mm) | 1608-1996 | 1520-2120 | 1608-1996 | 1520-2120 | |
| P.T.O.Max.Power(Kw) | 59.4 | 59.4 | 63 | 63 | |
| Ground clearance(mm) | 425 | 440 | 425 | 440 | |
| Engine | Type | YTO 90HP | YTO 90HP | YTO 95HP | YTO 95HP |
| Bore×Stroke(mm) | 112×135 | 110×135 | 115×135 | 105×125 | |
| Rated revolution (r/min) | 2300 | 2300 | 2300 | 2300 | |
| Max.torque(n.m) | ≥298 | ≥325 | ≥315 | ≥350 | |
| Speed of Max.torque r.p.m. | 1500-1700 | 1500-1700 | 1500-1700 | 1500-1700 | |
| Transmission | Clutch | Dual-stage clutch | |||
| Gear box | 12F+4R | ||||
| Working device | Hydraulic lifter tilling depth control | Forced buried | |||
| Max.lifting capacity(KN) | 14.9 | 14.9 | 15.7 | 15.7 | |
| Suspension type | Class 2 3-Point hitch | ||||
| Speed of P.T.O.(r/min) | stardard;540/720;optional:540/1000,720/1000 | ||||
| Notice:All above parameters are subject to change without notice because of rapid development of products. | |||||
