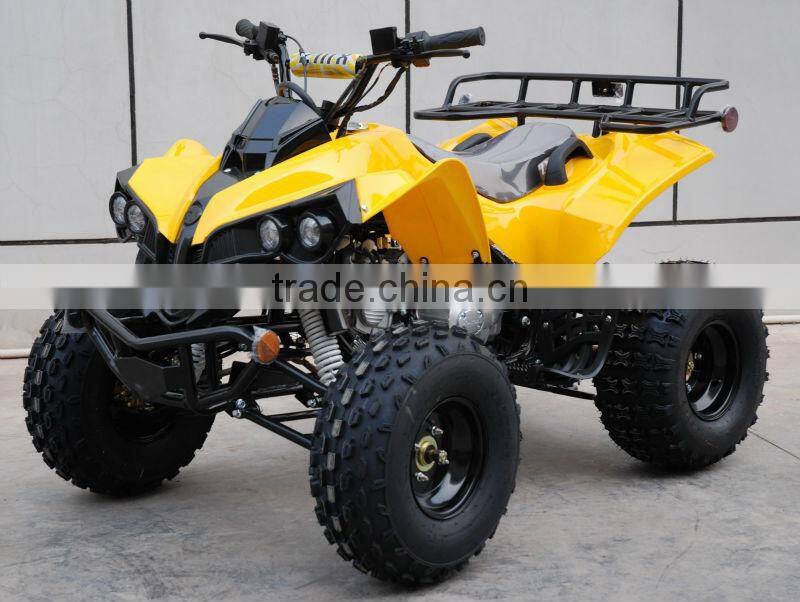

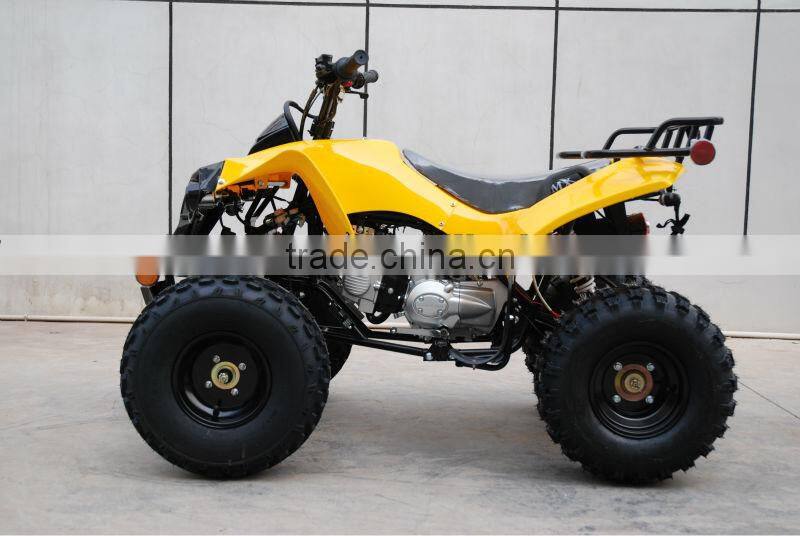

125cc ATV With Double Vent-pipe

125cc ATV With Double Vent-pipe photo-1
Negotiable MOQ: 5 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Fuel:
Gas / Diesel
Displacement:
110cc
Engine Type:
4 Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Fuel Gas / Diesel
Displacement 110cc
Engine Type 4 Stroke
Transmission Type Automatic
Transmission System Chain Drive
Certification Other, EPA.CE
Brand Name shougong
Place of Origin Shandong, China
Model Number TE125

Specifications

125cc ATV/Quad(Mini ATV) with EPA 125cc Atv Quad, High Quality Quad,New 125cc Atv Quad, CE APPROVAL,CHAIN,UTILITY ATV/quad

1) Dimensions (L x W x H): 1530 x 1040 x 990mm
2) Wheelbase: 1000mm
3) Seat height: 720mm
4) Min.Ground clearance: 130mm
5) Rated loading: 120kg
6) Max. speed: 45km/h
7) Tires: 8" a) Front wheels: 19 x 7 - 8 b) Rear wheels: 18 x 9.5 - 8
8) Break type (F/R): drum/disc
9) Fuel tank capacity: 3.5L
10) Power source: 12V, 4Ah
11) Min. turning radius: 2,900mm
12) Engine type: 110CC-125cc, single cylinder, air-cooling, 4-stroke(inner reverse, or not)
13) Cylinder size: 52.4 x 49.5mm
14) Compression proportion: 9.2:1
15) Displacement: 107ml
16) Max Power: 5.0kW/8000r/min,
17) Max. torque: 6.5N.m/ 5500r/min
18) Transmission mode: chain
19) Engine oil: 1.1L
20) Ignition mode: CDI
21) Transmission: 3 gears or 1 gears with one reverse gear, automatic clutch
22) Lubrication: press splash
23) Start mode: electric
24)N.W: 99KGS(7 inch), 105KGS (8 inch)
25)G.W:120KGS(7 inch), 126KGS(8 inch)

26)Carton dimensions: 1450 x 760 x 640mm
27)Conveyance: Qty/20’ GP: 29 units Qty/40’ GP: 66 units Qty/40’ HQ: 96units



125cc ATV with Double vent-pipe125cc ATV with Double vent-pipe125cc ATV with Double vent-pipe
