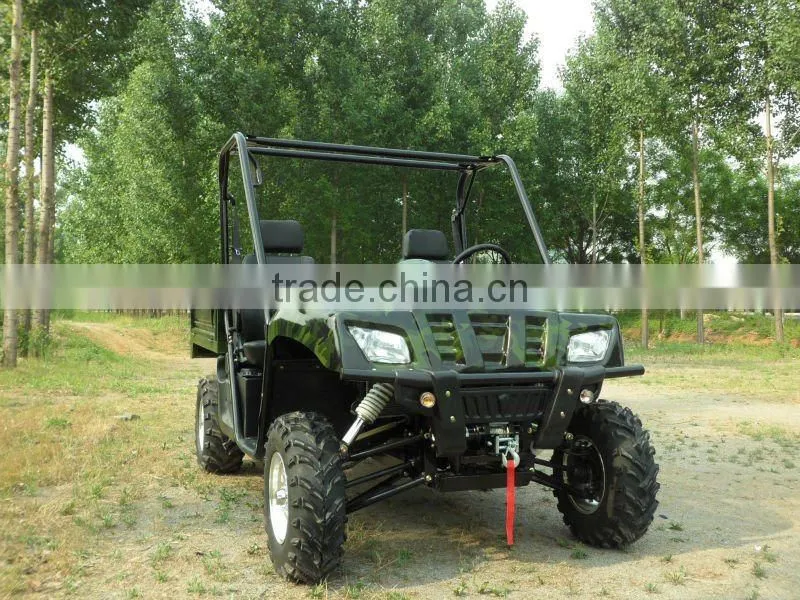

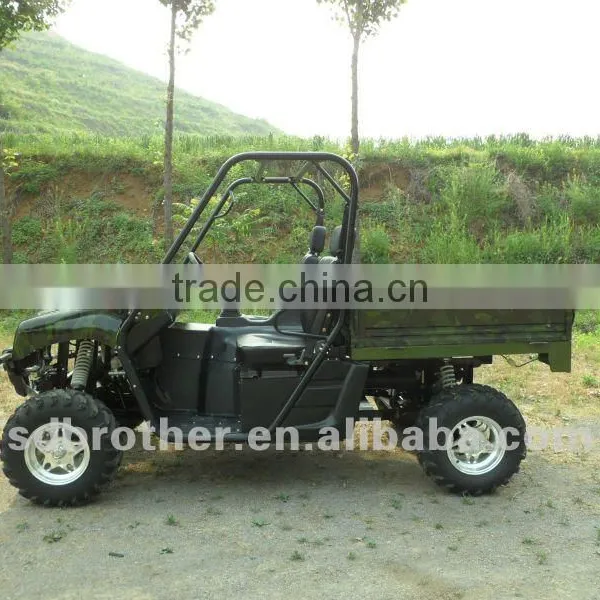

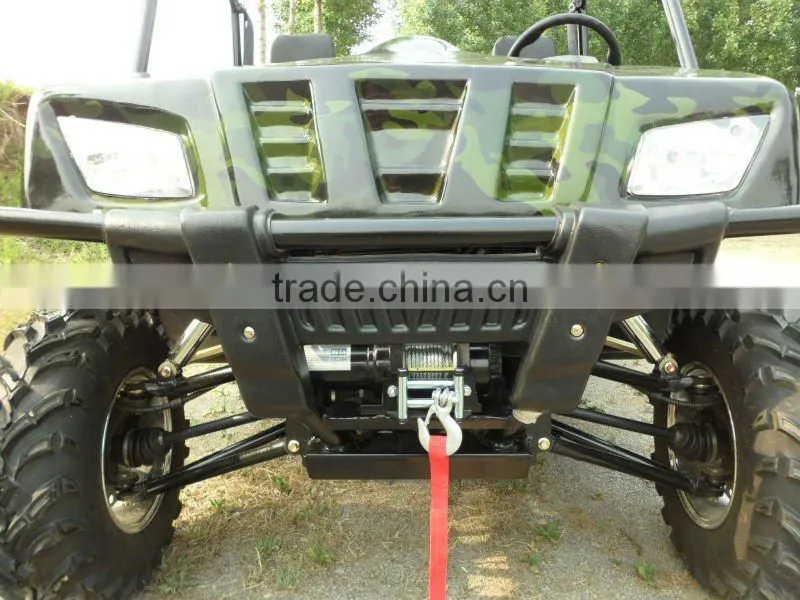

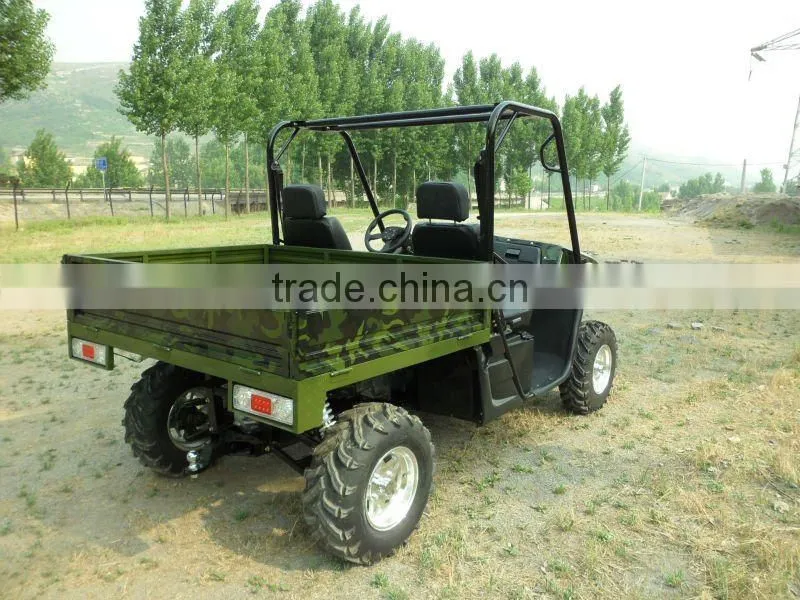

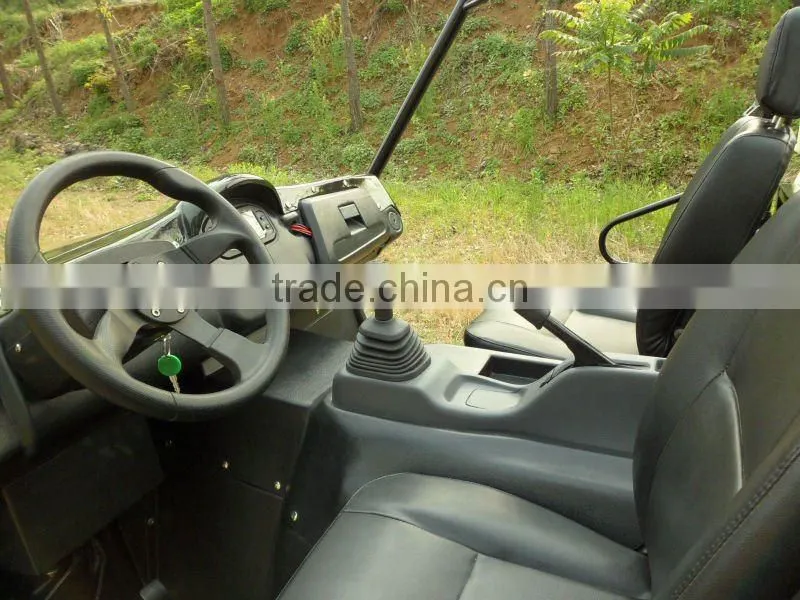

UTV 1000cc With Diesel Engine 4X4

US$ 3,000 - 60,000 MOQ: 1 Unit

Key Specifications

Type:

Other, 1000CC

Certificate:

Other, EEC,EPA

Fuel:

Gas / Diesel

Shandong Brother International Trading Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Type Other, 1000CC

Certificate Other, EEC,EPA

Fuel Gas / Diesel

Transmission Type Automatic

Place of Origin Shandong, China

Model Number UTV1000cc

Specifications

- Water-cooled EFI Engine
- Shaft Drive 2WD/4WD
- F/R Locking Differential
- Manual Clutch 5-Speed.

Specification
Model name	SG970-3
Engine type	Four-cylinder inline, four stroke, water cooled, ,SOHC,EFI
Displacement	1000cc
Bore×stroke	65.5×72mm(2.6×2.8in)
Compression ratio	8.8:1
Ignition	EFI-DELPHI
Cooling system	Water-cooled
Starting system	Electric
Vehicle dimension(L×W×H)	3450×1700×1860mm(135.8×66.9×73.2in)
Cargo bed(L×W×H)	1205×1420×310mm(47.4×55.9×12.2in)
Wheelbase	2300mm(90.6in)
Front tread	1290mm(50.8in)
Rear tread	1290mm(50.8in)
Ground clearance	350mm(13.8in)
Seat height	850mm(33.5in)
Dry weight	730kgs(1607.9lbs)
Fuel capacity	25L(94.6gal)
Cargo bed load capability	300kgs(660.8lbs)
Towing capability	5330N(1200lbf/543kgf)
Final Drive	Shaft, SELECTABLE 4×4
Brake system front/rear	Disk/Disk
Suspension	Independent double wishbone
Steering	Rack&pinion
Front tyre size	26×12-12
Front wheel size	12×9
Rear tyre size	26×12-12
Rear wheel size	12×9
Top speed	90km/h(56MPH)
Loading information	2 units/20″;6 units/40HQ
Packing Size	3570×1770×1130mm(140.6×69.7×44.5in)

Waterproof	0.5m(19.7in)
Max climbing gradient	30°
Min opernation temperature	-40°C(-40°F)
Max opernation temperature	40°C(104°F)
Max torque and rotate speed	74N.m/3000-3500rpm
Rated power and rotate speed	35.5kw/5300rpm
