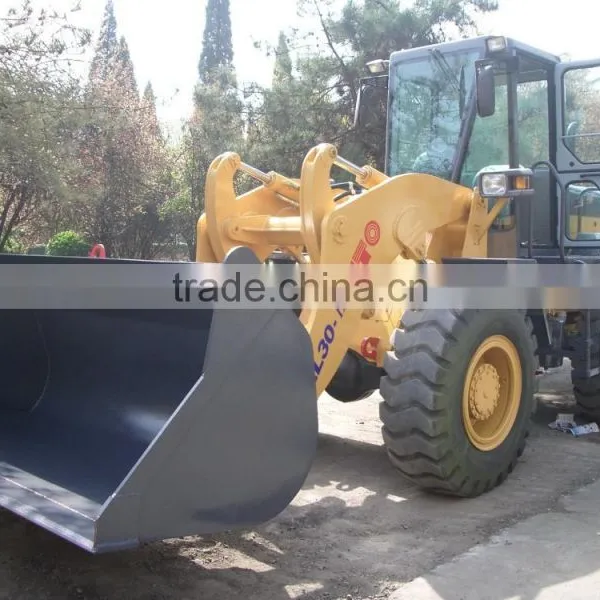

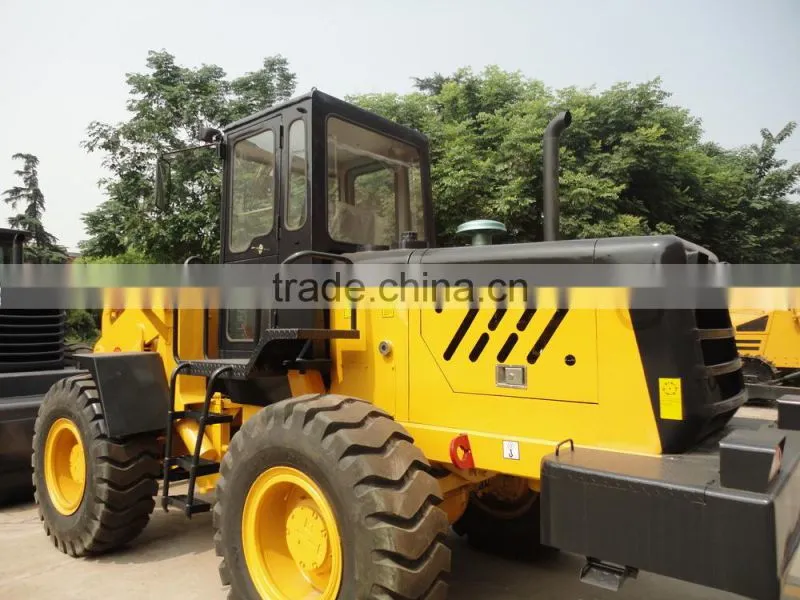

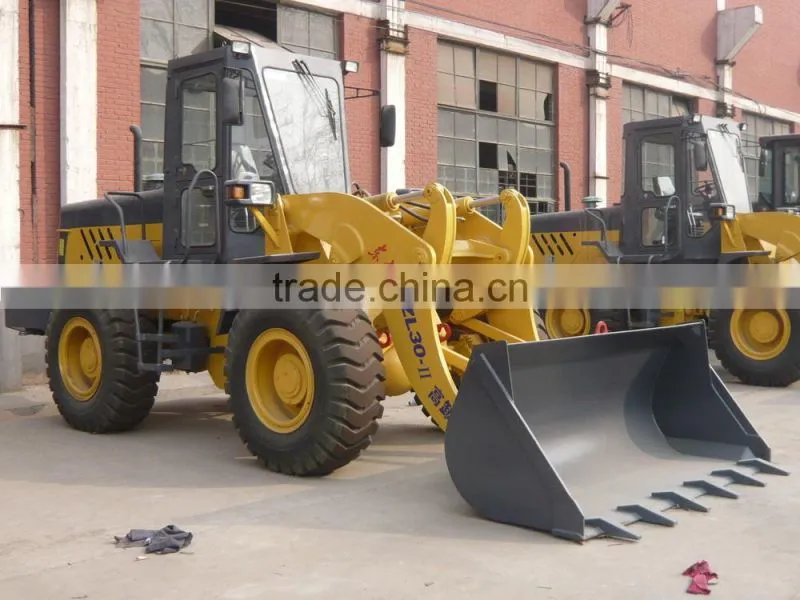

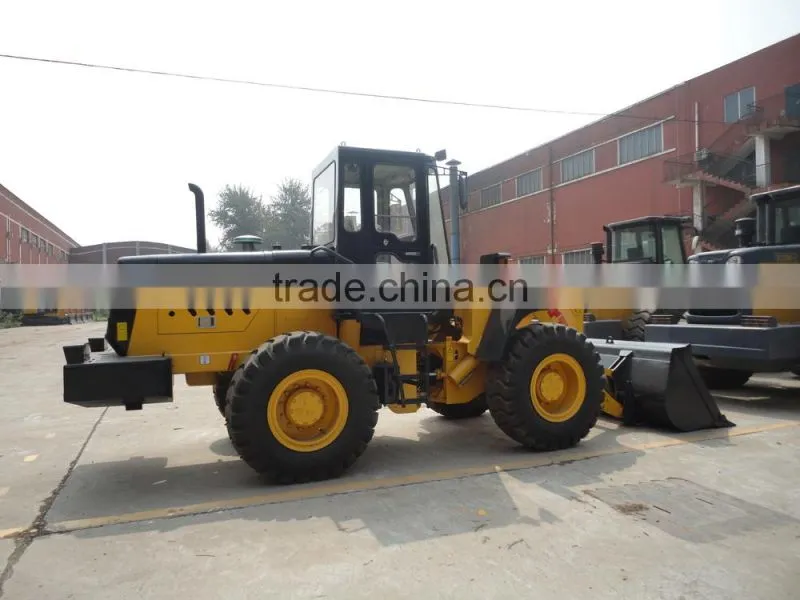

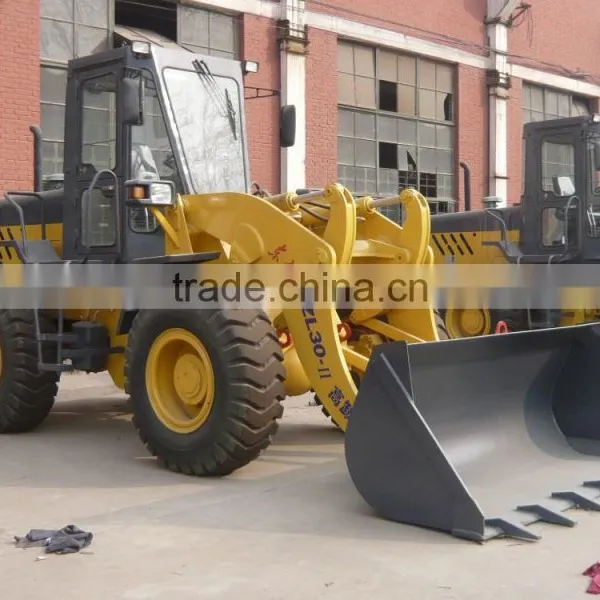

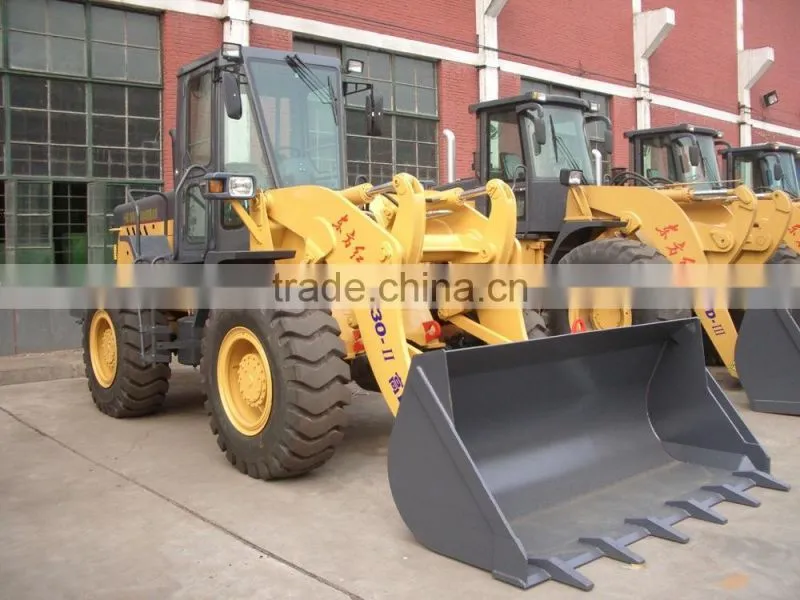

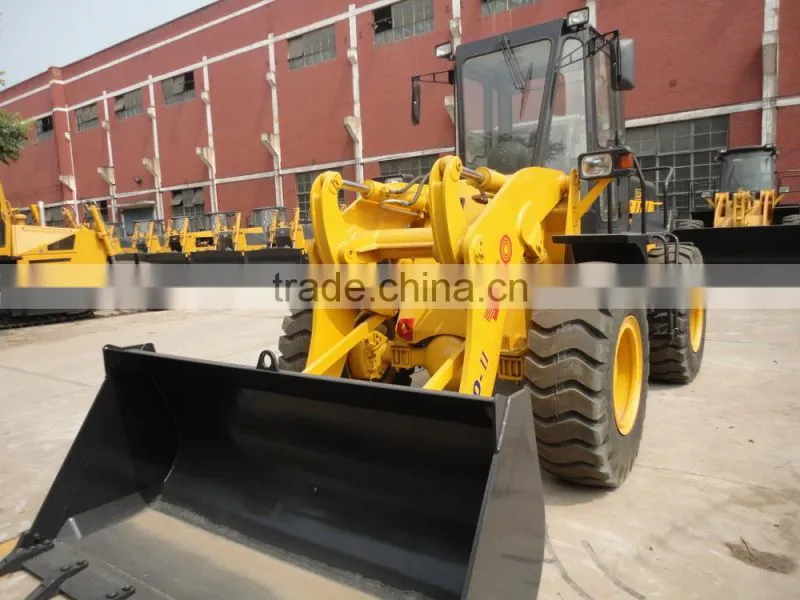

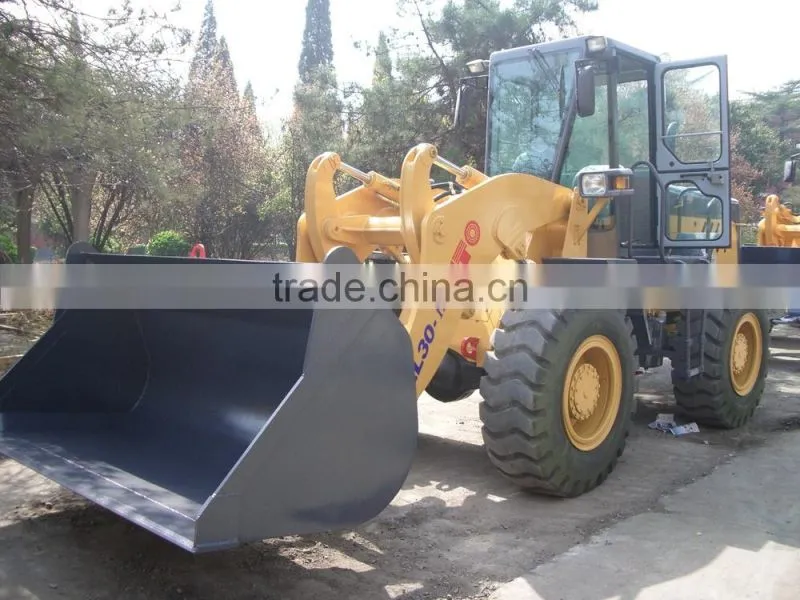

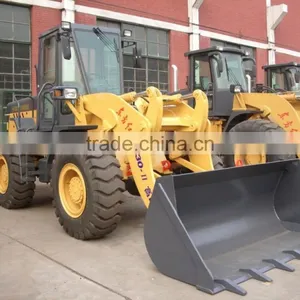

ZL30-II WHEEL LOADER
- Ø YTO LR6B3-22diesel engine is adopted, which is of high power reserve, strong dynamic power, economical fuel consumption and green environmental protection.
- Ø Adopts single-stage three-element hydraulic torque converter, fixed-shaft, four-forward two-backward power gearbox,with reliable performance.
- Ø Fully hydraulic diverter, with easy and flexible operation, little turning radius, and stable performance.
- Ø Front and rear frame adopts chamber construction, with high strength and good rigidity.
- Ø Four-wheel double-pipe clamping-type brake, with gas tank on both sides, good braking during operation,fully reliable.
- Ø Z-type connection rod,high digging force , and high shovel efficiency.
- Ø Integral operation platform, streamline design, and humanized operation layout, equipped with new type of electronic instrument, capable of quickly monitoring the working condition of the whole unit.
- Ø New type of steel cab,with good sealing and vibration absorption , and broad field of vision.
- Ø Standard heating and ventilation equipment, air conditioner optional.
- Ø Adopt domestically most advanced directional combination instrument console and electric lock against wrong start,fully showing the design philosophy of respecting the people.
- Ø Anti-vibration shelf, scuttle, rocket bucket, wood-fork and other working devices can be selected according to different requirements of customers or working conditions.
Technical parameter:
Model |
|
ZL30-Ⅱ |
Total weight |
kg |
9950 |
Bucket capacity |
m3 |
1.7 |
Rated load |
kg |
3000 |
Movable arm lifting time |
S |
≤6.5 |
Three item time |
S |
≤12 |
Min. turning radius |
mm |
5022 |
Forward I-IV gears |
km/h |
6.5~36 |
Reverse I-II gears |
km/h |
7.5~23 |
Dumping height |
mm |
3050 |
Dumping reach |
mm |
974 |
Overall length |
mm |
7105 |
Overall width |
mm |
2400 |
Overall height |
mm |
3080 |
Engine model |
|
LR6B3-22 |
Engine rated power |
kW |
92 |
Fuel capacity |
L |
150 |
Since the product is improved continuously. The specification and instruction are subject to change without separate notice.
