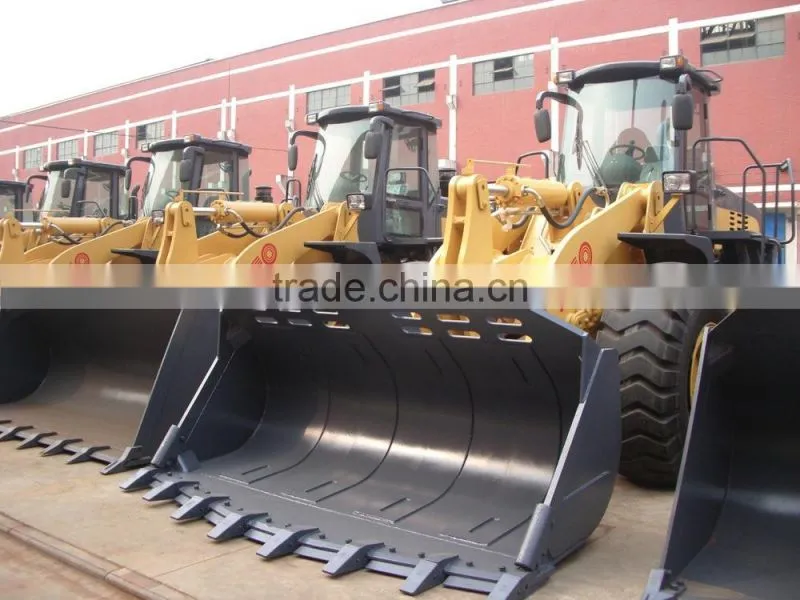

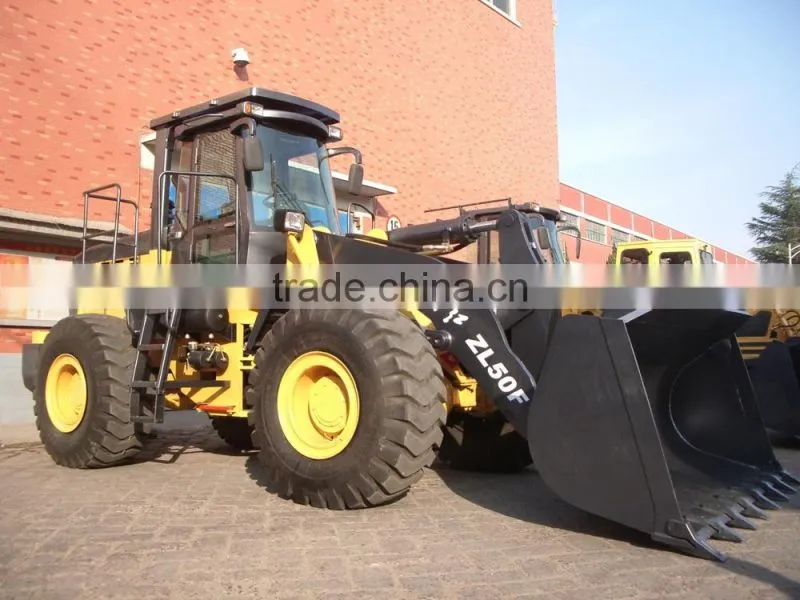

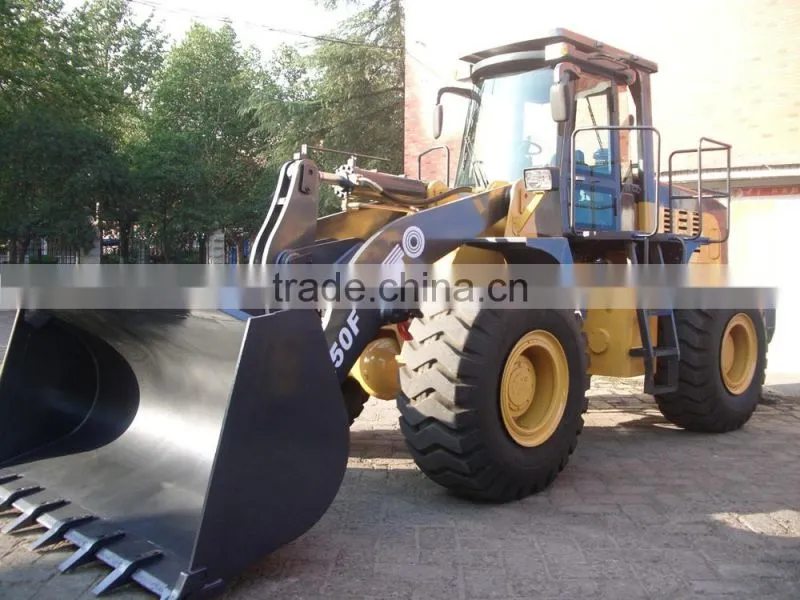

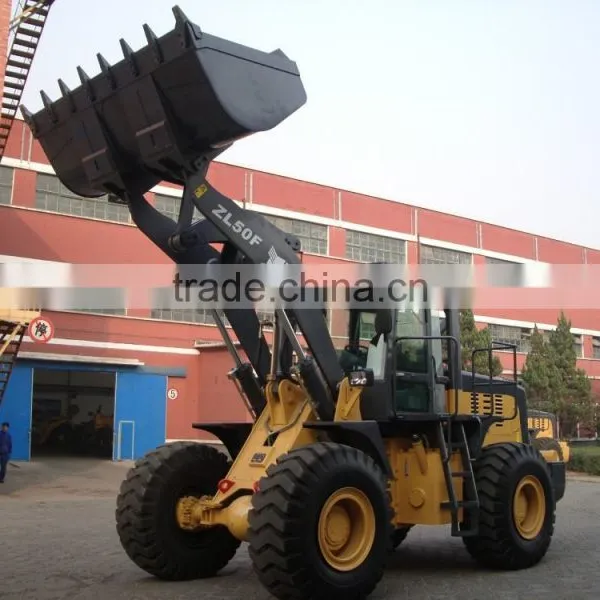

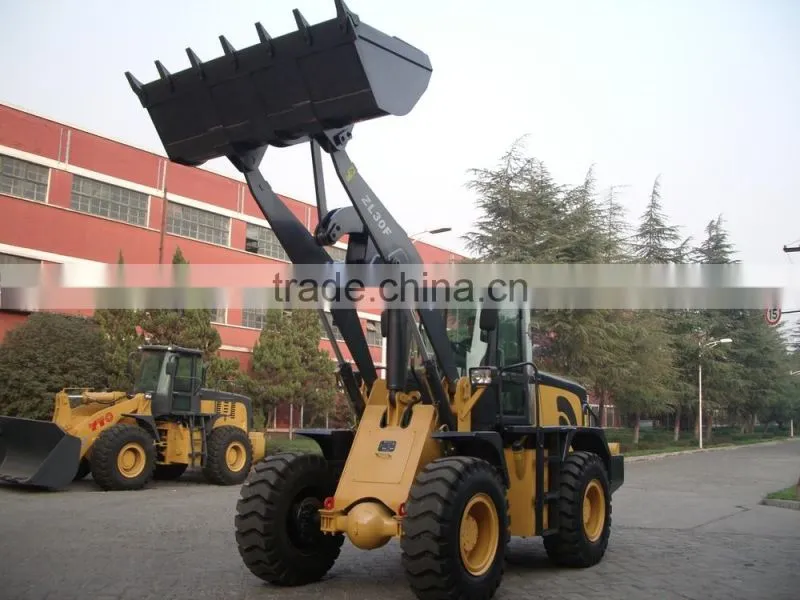

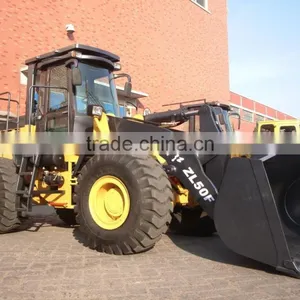

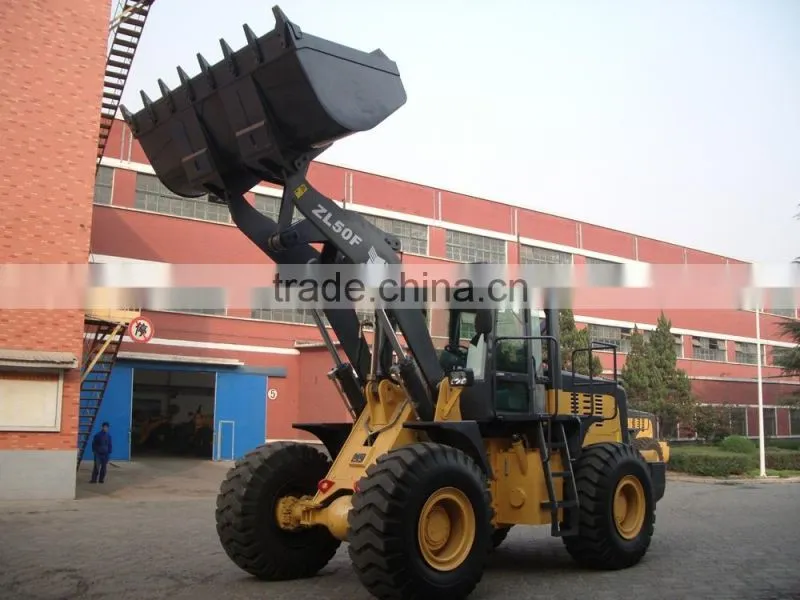

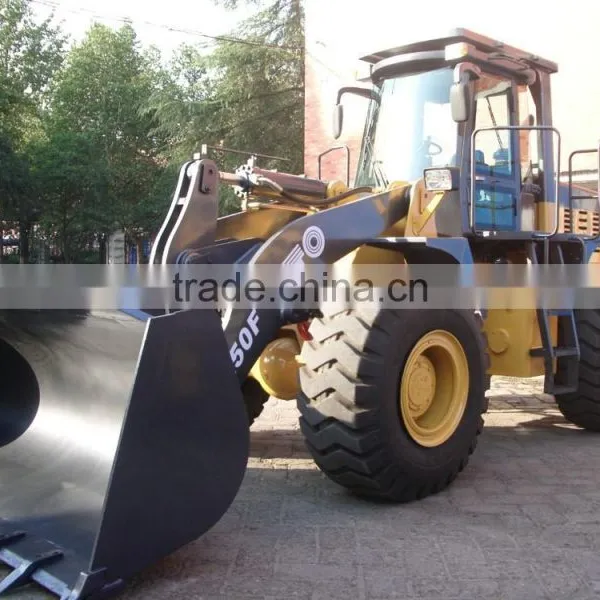

ZL50F WHEEL LOADER
Main features:
- Ø Completely new European-style fashion design,best auxiliary part in China(Weichai engine,Hangchi Advanced Gearbox and Torque Converter,Meritor drive axle). Shangchai engine is optional.
- Ø The loader adopts single-stage four-element hydraulic torque converter and the planetary power gearshift transmission box, which can be automatically adjust the output torque. The high-speed light-load operating mode can automatically be shifted to low-speed heavy-load operating mode.
- Ø Optimized and improved design of work unit, making the unit lifting capacity,digging force and unloading height as well as total cycle time at or better than the national figures for high-quality product.
- Ø The hydraulic system of the working unit adopts soft shaft operation with preset operating valve.It is of small pressure loss, easy and reliable operation.
- Ø Large-vision and fully enclosed driver cab is equipped, with luxury automobile interior decoration, standard heating and ventilation equipment (air conditioner optional),high-class engineering shock absorption seat.
- Ø Several devices are optional according to the customer and different working conditions, such as the joystick, Fops/Rops coal bucket, rock bucket and log grapple.
Technical parameter:
Model |
|
ZL50F |
Total weight |
kg |
16500 |
Bucket capacity |
m3 |
3 |
Rated load |
kg |
5000 |
Movable arm lifting time |
S |
≤6.5 |
Three item time |
S |
≤11.5 |
Min. turning radius |
mm |
6770 |
Forward I-II gears |
km/h |
11.5-38 |
Reverse I gears |
km/h |
0-16 |
Dumping height |
mm |
3200 |
Dumping reach |
mm |
1180 |
Overall length |
mm |
7935 |
Overall width |
mm |
2956 |
Overall height |
mm |
3450 |
Engine model |
|
WD10G220E21 |
Engine rated power |
kW |
162 |
Fuel capacity |
L |
270 |
Since the product is improved continuously. The specification and instruction are subject to change without separate notice.
