Specifications
1.Digital intelligent driving control system2.Hydraulic steering system
3.Big arch design
4.low noise & low oil consumption.

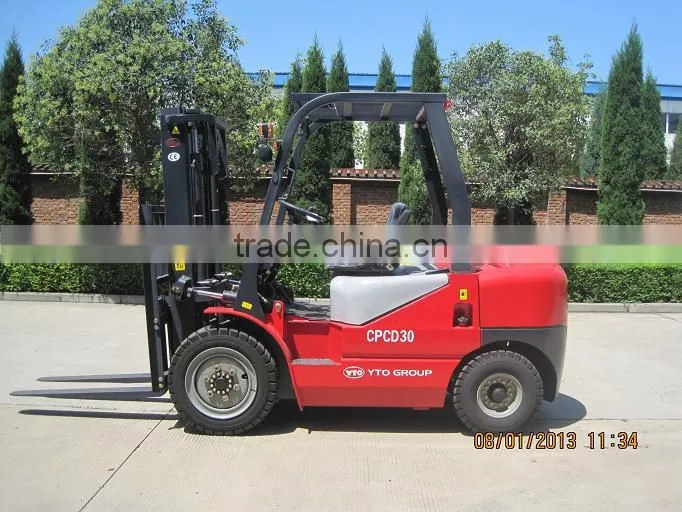

CPCD30 Diesel Forklift Truck
Main features:
Digital intelligent driving control system can facilitate obtaining the operation data of forklift so as to achieve the whole-process control.
Full hydraulic steering system, can greatly reduce the fatigue of operator, uses crank sliding piece steering and compact structure.
Big arch design on top of the ballast can improve the visibility of rear view; can guarantee the optimum visibility when drive reverses within fixed distance.
The engine hood can open by 90°, and can be effectively supported with air spring so as to facilitate the inspection and maintenance.
The gantry rail section design will be optimized; the interior width is enlarged so that the driver can enjoy a wide scope of eyesight.
The engine has good performance; it has virtues in operation in stability, low noise, low vibration and low consumption.
Technical Specifications:
Model |
Unit |
CPC30 |
||
Power type |
- |
Diesel |
||
Rated capacity |
kg |
3000 |
||
Load center |
mm |
500 |
||
Lift height |
mm |
3000 |
||
Free lift height |
mm |
165 |
||
Mast tilt angle(forward /backward) |
. |
6/12 |
||
Lift speed (with/without) |
Mm/s |
400/440 |
||
Travel speed (with/without) |
Mm/s |
18/19 |
||
Max grade ability (with load) |
% |
20 |
||
Minimum turning radius |
mm |
2410 |
||
Overall length (without forks) |
mm |
3510 |
||
Overall width |
mm |
1995 |
||
Full height (door frame no lift) |
mm |
2770 |
||
Wheel base |
mm |
1700 |
||
Tire type |
Front |
28×9-15-14PR |
||
back |
6.5-10-10PR |
|||
|
Brake type |
|
Travel Brake |
hydraulic-foot pedal |
|
|
Parking brake |
Mechanical-Hand level |
||
Weight |
Kg |
4250 |
||
Battery |
Voltage |
V |
12 |
|
Capacity |
Ah |
100 |
||
