2014 Hot Sales Tractor
- 1500 Unit / Units per Month
- Qingdao Shanghai Tianjin
- T/T
Product Details
Condition: | New | Type: | Wheel Tractor | By wheel: | 4WD |
Usage: | Farm Tractor | Drive Type: | Gear Drive | Power(W): | 95.6KW |
Certificate: | CE | Brand Name: | TECH | Model Number: | LT1304 |
Place of Origin: | Henan, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

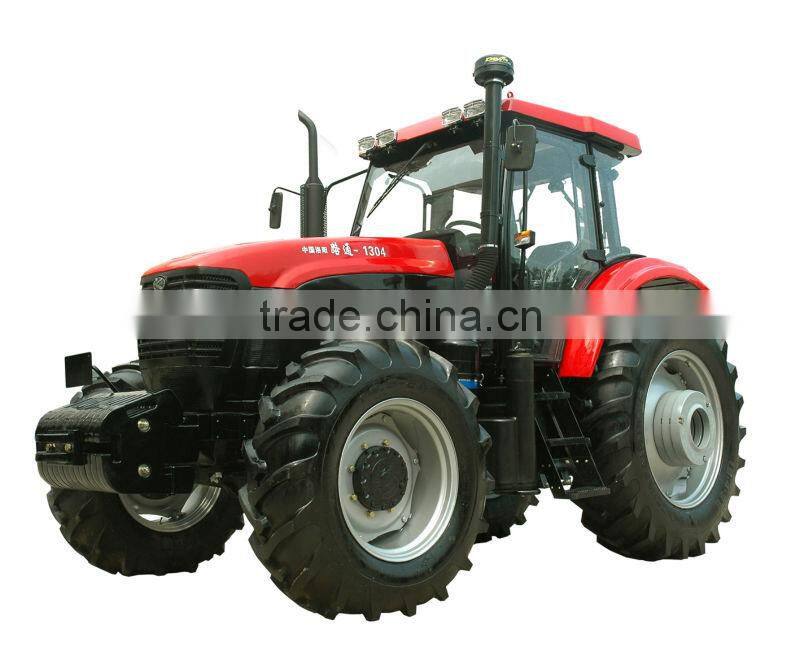

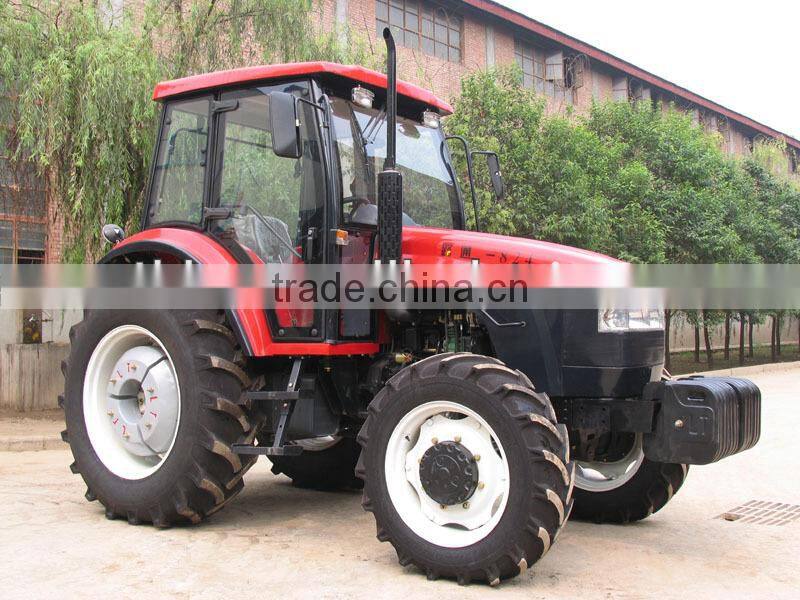

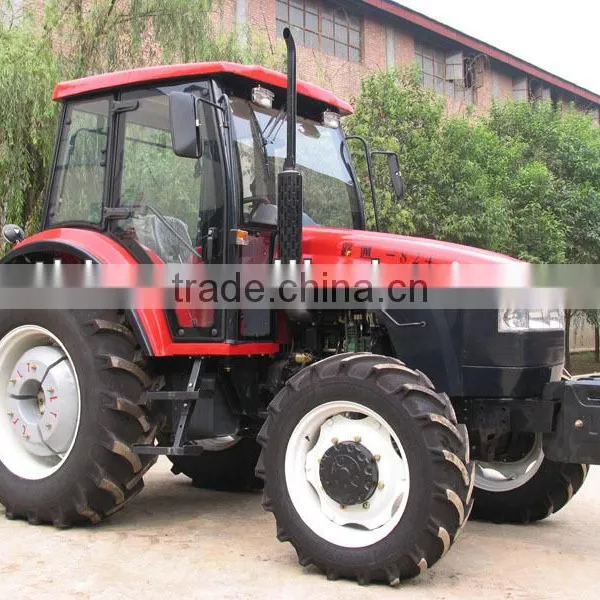

LT1304Tractor
1.Adopt YTO engine, good reliability, large reserves of torque, low fuel consumption;
2.13-inch double-acting clutch, high transmission capacity, comfortable manipulation;
3.Gearbox use 12F+4R shuttle meshing sleeve shift, gear matching reasonably;
4.Using an independent power output device, smooth transmission, large capacity, speed for selection to meet the complex operational requirements;
5.Using an independent circuit of hydraulic steering control system, manipulating flexible, reliable, and less energy;
6.Using disc brakes, larger braking torque, better braking effect;
7.Final drive with planetary gear mechanism, compact structure, large reduction ratio;
8.New streamlined appearance, generous, modern, fashion;
9.Optional side-mounted joystick, more convenient and comfortable.
Model | LT1304 | |
Drive Type | 4×4 | |
Dimension (mm) | L×W×H(W cabin) | |
5050×2370 ×3000 | ||
Wheelbase (mm) | 2860 | |
Front wheel tread (mm) | 1822 ~2153 (common1760) | |
Rear wheel tread (mm) | 1662~2262 (common1662) | |
Min. Ground clearance | 470mm | |
Min. Turning radius | 7m | |
Mini Using Weight (kg)2060 | 4810 | |
Gear (front/rear) | 12F+4R | |
Speed (forward /reverse) | 2.19-29.63/4.72-13.83km/h | |
Engine | Brand | YTO |
Model | LR6M5-23 | |
Power | 95.6KW | |
Revolving speed | 2300r/min | |
Tire model (front/rear) | 14.9-26/18.4-38 | |
Max. lifting capacity (KN) | 24 | |
PTO speed (r/min) | 540/1000 |
