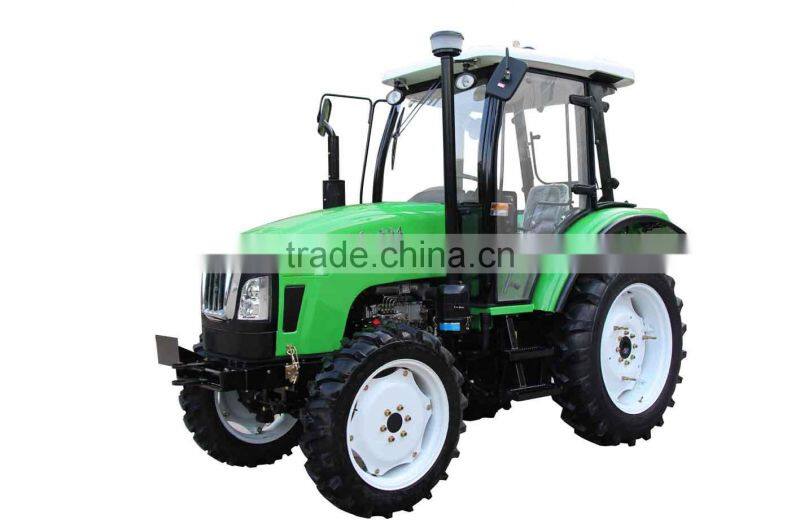

LT504Tractor
1.Adopt Xinchai engine, good reliability, large reserves of torque, low fuel consumption;
2.10-inch double-acting clutch, high transmission capacity, comfortable manipulation;
3.Gearbox use 12F+12R shuttle meshing sleeve shift, gear matching reasonably;
4.Using an independent power output device, smooth transmission, large capacity, speed(540/760, 540/1000 r/min) for selection to meet the complex operational requirements;
5.Using an independent circuit of hydraulic steering control system, manipulating flexible, reliable, and less energy;
6.Using disc brakes, larger braking torque, better braking effect;
7.Final drive with planetary gear mechanism, compact structure, large reduction ratio;
8.New streamlined appearance, generous, modern, fashion;
9.Optional side-mounted joystick, more convenient and comfortable.
Model | LT504 | |
Drive Type | 4×4 | |
Dimension (mm) | L×W×H(No cabin) | 3875×1620×1550 |
L×W×H(W cabin) | 3875×1620×2450 | |
Wheelbase (mm) | 1990 | |
Front wheel tread (mm) | 1265 | |
Rear wheel tread (mm) | 1200~1500 | |
Min. Ground clearance | 330mm | |
Min. Turning radius | 4.3m | |
Mini Using Weight (kg)2060 | 2080 | |
Gear (front/rear) | 12F+12R | |
Speed (forward /reverse) | 2.55-34.02/2.24-29.82km/h | |
Engine | Brand | China Xinchai |
Model | A498BT-6A | |
Power | 36.8KW | |
Revolving speed | 2400r/min | |
Tire model (front/rear) | 8.3-20/13.6-28 | |
Max. lifting capacity (KN) | 8.28 | |
PTO speed (r/min) | 540/760 or 540/1000 optional | |
