2014 Hot Sales Tractor

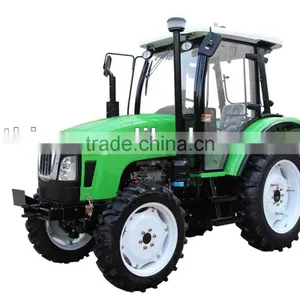

2014 Hot Sales Tractor thumbnail-1

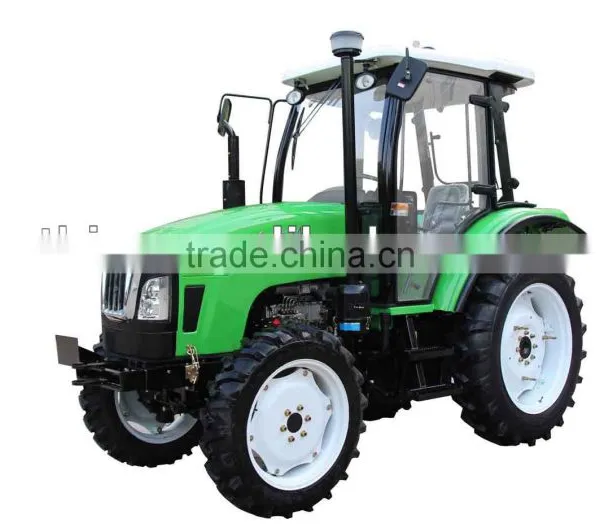

2014 Hot Sales Tractor photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Henan Taike Industrial And Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 36.8KW
Certificate CE
Brand Name TECH
Model Number LT504
Place of Origin Henan, China
After-sales Service Provided Engineers available to service machinery overseas



  LT504Tractor

1.Adopt Xinchai engine, good reliability, large reserves of torque, low fuel consumption;

2.10-inch double-acting clutch, high transmission capacity, comfortable manipulation;

3.Gearbox use 12F+12R shuttle meshing sleeve shift, gear matching reasonably;

4.Using an independent power output device, smooth transmission, large capacity, speed(540/760, 540/1000 r/min) for selection to meet the complex operational requirements;

5.Using an independent circuit of hydraulic steering control system, manipulating flexible, reliable, and less energy;

6.Using  disc brakes, larger braking torque, better braking effect;

7.Final drive with planetary gear mechanism, compact structure, large reduction ratio;

8.New streamlined appearance, generous, modern, fashion;

9.Optional side-mounted joystick, more convenient and comfortable.



Model

LT504

Drive Type

4×4

Dimension   (mm)

L×W×H(No cabin)

3875×1620×1550

L×W×H(W cabin)

3875×1620×2450

Wheelbase (mm)

1990

Front wheel tread (mm)

1265

Rear wheel tread (mm)

1200~1500

Min. Ground clearance

330mm

Min. Turning radius

4.3m

Mini Using Weight (kg)2060

2080

Gear (front/rear)

12F+12R

Speed (forward /reverse)

2.55-34.02/2.24-29.82km/h

Engine

Brand

China Xinchai

Model

A498BT-6A

Power

36.8KW

Revolving speed

2400r/min

Tire model (front/rear)

8.3-20/13.6-28

Max. lifting capacity (KN)

8.28

PTO speed (r/min)

540/760 or 540/1000 optional

2014 Hot Sales Tractor

2014 Hot Sales Tractor

2014 Hot Sales Tractor

2014 Hot Sales Tractor
