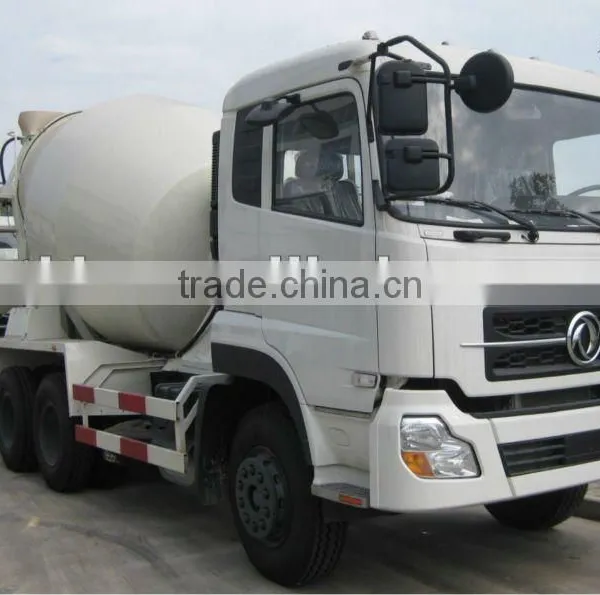

Powerful 10CBM Dongfeng 340hp Concrete Mixer Truck

Name: Powerful 10CBM Dongfeng 340hp Concrete Mixer Truck
Brand: Chenglongwei
SKU: 140733518
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hubei, China

Brand Name:

Chenglongwei

Model Number:

CLQ5250GJB

Henan Taike Industrial And Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hubei, China

Brand Name Chenglongwei

Model Number CLQ5250GJB

Gross Vehicle Weight 25000

Main parameters of 10CBM Dongfeng 340hp concrete mixer truck
vehicle parameters	mixing drum volume (cbm)			10
	gross weight(kg)			25000
	rated loading weight(kg)			11805,11870
	curb weight(kg)			13000
	overall dimension(mm)			8840x2500x3930
	front /rear overhang(mm)			1460/2380
	approach/departure angle			30/18
	max. speed(km/h)			80
chassis parameters	chassis model			DFL5250GJBA
	overall dimension (mm)			7920,8070x2500x3030
	no.of axle			3
	wheelbase(mm)			3650+1350,3800+1350
	no.of tyre			10
	tyre specification			11.00-20,11.00R20
				12.00-20,12.00R20
	front tread(mm)			1986,2027
	rear tread(mm)			1860/1860,1820/1820
	emission standard			Euro Ⅲ
	fuel type			diesel
mixing drum parameters	feed speed(m3/min)			≥2.8
	discharging speed(m3/min)			≥1.2
	residual ratio(%)			≤0.5
	rotation rate of mixing drum(rpm)			0-17
	mixing drum thickness			5mm
	mixing drum material			Q345
engine parameters	engine type	manufacturer	displacement(ml)	power(kw)
	ISLe340 30	Dongfeng Cummins Engine Co., Ltd	8900	250
	L340 30	Dongfeng Cummins Engine Co., Ltd	8900	250
	dCi340-30	Dongfeng Cummins Engine Co., Ltd	11120	250
	EQR340-33	Dongfeng Automobile Co., Ltd.	11120	250

Special Fuction Description of Concrete Mixer Truck
hydraulic system	adopting equipment imported from Italy,Germany,Japan, layout of system is simple,reliable transportation.
water supply system	using pressure water supply type, simplifying structure, saving power, reducing the weight of entire vehicle.
mixing drum	adopting plow structure, double helical surface blades, using different blade in different conic part, improved the quality of concrete, tank body with small angle of inclination in installing, reducing the height of center of gravity of the entire vehicle, good driving stability, moreover, smaller angle of inclination is more favorable for dry concrete discharge, reducing residual ratio.
operation equipment	including flexible manipulator and connecting rod type manipulator, connecting rod type manipulator can realize multipoint manipulation.
feeding/discharging device	feed hopper, discharge chute can be rotated 180 degrees in the horizontal direction, so that it can adapt to different discharge position.
tank body spray-paint	tank body surface sprays two-layer polyurethane paint, using stoving varnish technology, uniform coating, strong adhesion, luster is more durable.
