1.5t Double Pairs of Forks Stable Elelctric Forklift Stacker

US$ 300 - 300 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Shanghai Gather Power Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name GP

Model Number ESG115

Type Powered Pallet Truck

Power Souce AC Motor

Rated Loading Capacity 1000-3000KG

Max. Lifting Height 3000mm

Min. Lifting Height 85mm

Fork Length 1150mm

Fork Width 150mm

Certification CE/ISO9001

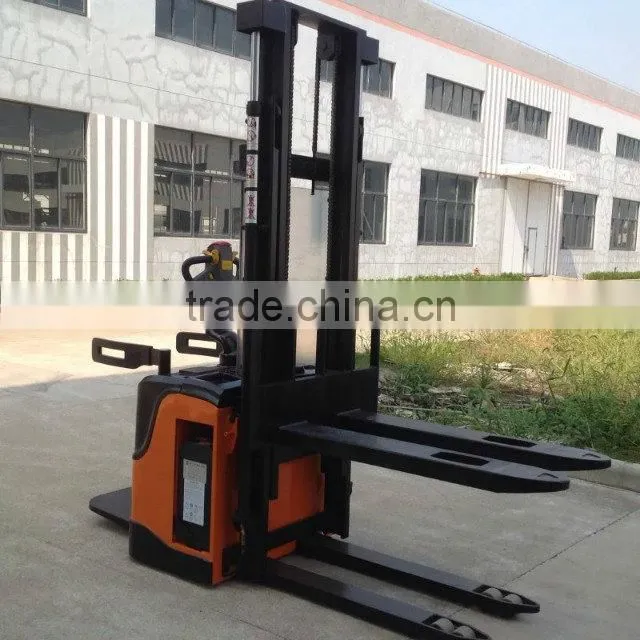

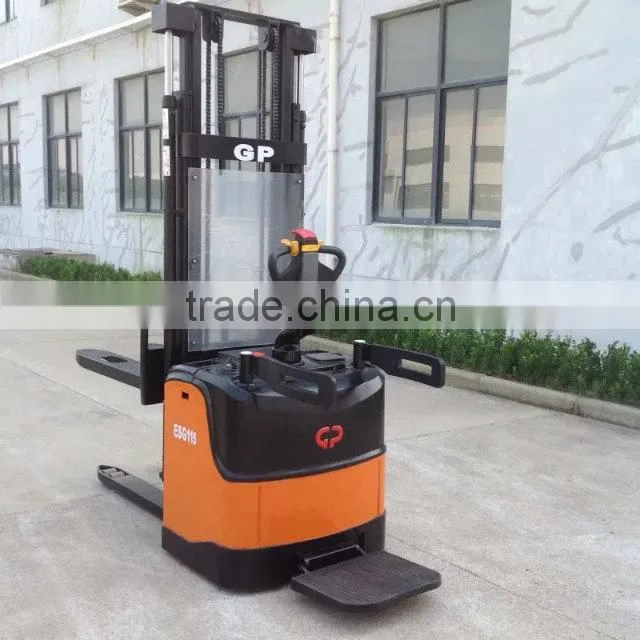

Product's picture

Product Description

Feature
Model		EPG115
Load capacity	kg	1500
Load center	mm	600
Wheel base	mm	1280
Operating type		walkie
Wheels
Wheel type		PU
Wheel quantity driving wheel/Balance wheel/Bearing wheel		1/2/4
Driving wheel size	mm	210×70
Balance wheel size	mm	85×70(Double wheels)
Bearing wheel size	mm	115×55
Dimension
Min.fork lowered height	mm	35
Max.fork lifting height	mm	205
Max.lifting height	mm	120
Outer fork width	mm	540
Fork length	mm	1150
Fork width	mm	185
Fork thickness	mm	55
Overall length	mm	1685
Overall width	mm	685
Overall height(With handle)	mm	1280
Overall height(Without handle)	mm	850
Min. turning radius	mm	1490
Min.aisle width for pallets 800×1200 Min.aisle width for pallets 800×1200	mm	2158
Min.aisle width for pallets 1000×1200	mm	2248
Performance
Travel speed,laden/unladen	km/h	3.5/4
Lift speed,laden/unladen	mm/s	39/46
Travel speed,laden/unladen	mm/s	46/40
Gradeability,laden/unladen	%	3/10
Electric configuration
Drive motor	kw	DC0.75
Lift motor	kw	DC0.8
Battery voltage/capacity	V/Ah	24/2×100
Brake		electromagnetic Electromagnetic/Regenerative
Controller		CURTIS
Weight
Battery weight	kg	50
Service weight with battery	kg	205
