Home > Products > Wheel Loader > High quality 2.8 ton Wheel Loader

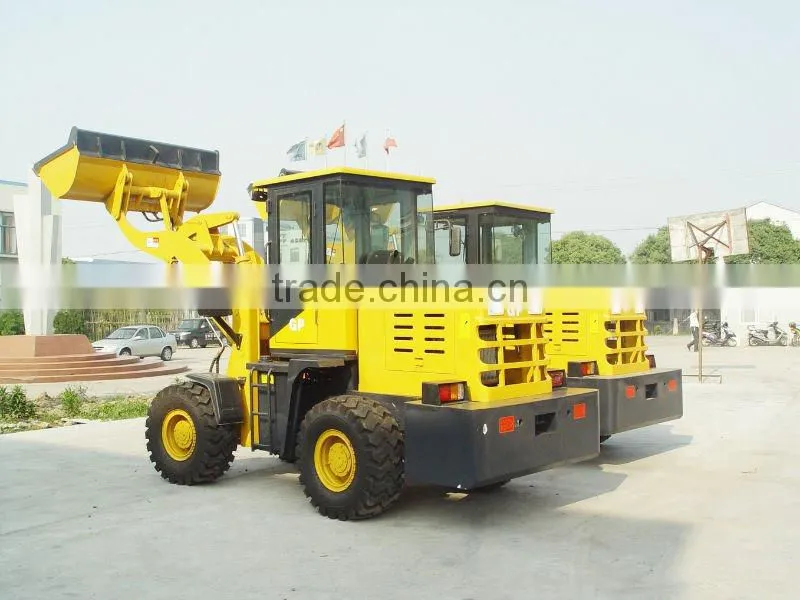

High quality 2.8 ton Wheel Loader
Negotiable
/ Unit
1 Unit(Min.Order)
- 5000 Unit / Units per Month
- Shanghai
- T/T
You May Like
Product Details
Condition: | New | Brand Name: | GP | Model Number: | ZL28 |
Place of Origin: | Shanghai, China | Type: | Front Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 6150x1970x3000mm | Rated Load: | 2800KG | Certification: | SGS & CE & ISO |
Warranty: | 1 YEAR | After-sales Service Provided: | Overseas third-party support available |
Product Description
Specifications
1.ZF technology.2.ISUZU weight bridge
3.Control system of clutch adopts mechanical.
Model | ZL18 | ZL20 | ZL28 | ZL30 | ZL30A |
Rated weight | 1800KG | 2000KG | 2800KG | 3000KG | 3000KG |
Rated capacity | 1.03m³ | 1.3m3 | 1.6m3 | 1.7m3 | 1.7m3 |
Operating weight | 4000KG | 7480KG | 6000KG | 9500KG | 9500KG |
Model of engine | Weifang ZH4102 | weifang ZH4102 | luotuo YTR4108 | xichai 6110 | DEUTZ TD226B |
Rated power | 50KW/47 KW | 45KW | 55KW | 85KW | 92KW |
Rated speed | 2200r/min 2400rpm | 2400r/min | 2400r/min | 2300r/min | 2300r/min |
Max .dump height | 3200/3700/4500mm | 2800mm | 3200/3500mm | 3020/3250mm | 3250mm |
Max .dump reach | ≥930mm | 885mm | 1084mm | 1200mm | 1200mm |
Min .ground clearance | 310mm | 310mm | 310mm | 380mm | 380mm |
Wheel base | 2160mm | 2150mm | 2470mm | 2760mm | 2760mm |
Tread | 1080mm | 1440mm | 1380mm | 1800mm | 1800mm |
Lifting time | 4s | Total time:9.8s | Total time:11.3s | Total time:11s | Total time:11s |
Lowering time | 3s | ||||
Unloading time | 2s | ||||
Max.breakout force | 32KN | 48.87KN | 70KN | 138KN | 138KN |
Min.turning radius | 3500mm | 4239mm | 4500mm | 5700mm | 5700mm |
Overall dimensions(length*width*height) | 5800*1730*2800mm | 5910x1910x2810mm | 6150x1970x3000mm | 7050x2430x3120mm | 7050x2430x3120mm |
Engine option : | 1.Weifang ZH4102 2.Weichai Huafeng ZH402GG41 | 1. Weifang ZH4102. 2.Weichai Huafeng R4105G57 | 1.Luotuo YTR4108. 2.Xinchai 4105 3 . Cummins 4BT3.9 | 1. Xinchai 6110 2.Cummins 6BT5.9 | 1. Xinchai 6110 2.Weichai 6105 3.Cummins 6BT5.9 4 .Deutz TD226B |
Contact Us
- Shanghai Gather Power Industry Co., Ltd.
- Contact nameJerin Liu
- Phone86-21-58381398-802
- AddressRm. 328, Bldg. 6, No. 35, Lane 2216, Jingao Road
