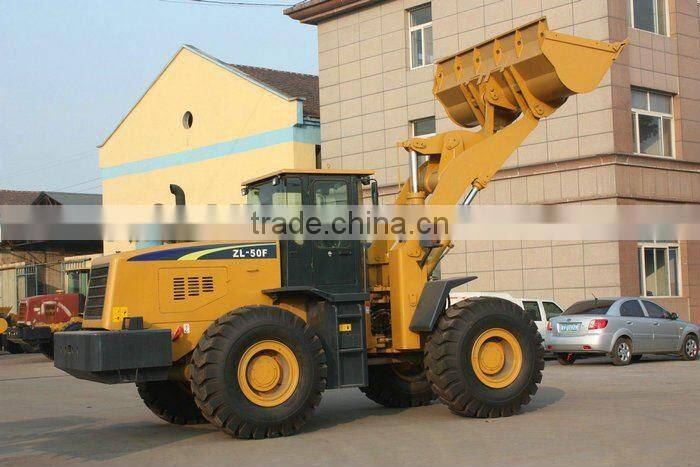

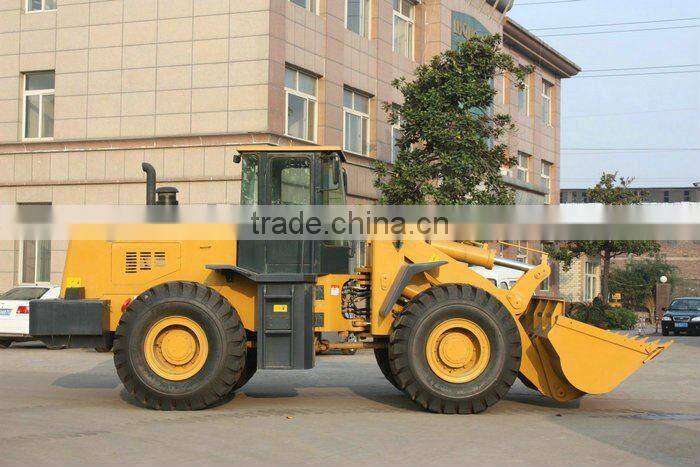

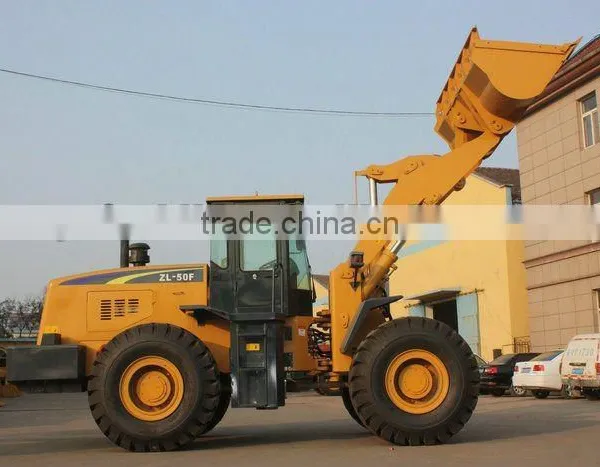

High Quality 5 Ton Wheel Loader
Negotiable
MOQ: 1 Watt (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
GP
Model Number:
ZL50
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Brand Name
GP
Model Number
ZL50
Place of Origin
Shanghai, China
Type
Front Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
7836x3010x3300mm
Rated Load
5000KG
Specifications
1.ZF technology.2.ISUZU weight bridge
3.Control system of clutch adopts mechanical.
| WHEEL LOADER | Model | |
| Item | Specification | ZL50 |
| 1 | Rated weight | 5000KG |
| 2 | Rated capacity | 3.0m3 |
| 3 | Operating weight | 16000KG |

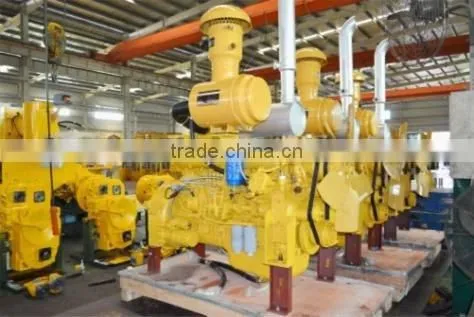

| 4 | Model of engine | STEYR WD12G220E11 |
| 5 | Rated power | 162KW |
| 6 | Rated speed | 2200r/min |
| 7 | Max .dump height | 3098mm |
| 8 | Max .dump reach | 1198mm |
| 9 | Min .ground clearance | 450mm |
| 10 | Wheel base | 3200mm |
| 11 | Tread | 2250mm |
| 12 | Lifting time | Total time:11.3s |
| 13 | Lowering time | |
| 14 | Unloading time | |
| 15 | Max.breakout force | 172.6KN |
| 16 | Min.turning radius | 7268mm |
| 17 | Overall dimensions (length*width*height) | 7836x3010x3300mm |
| 18 | Engine option : CUMMINS 6CTA8.3-C215 / STEYR C6121ZG50 | |
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2006
Factory Size
Below 1,000 square meters
Total Employees
51 - 100 People
