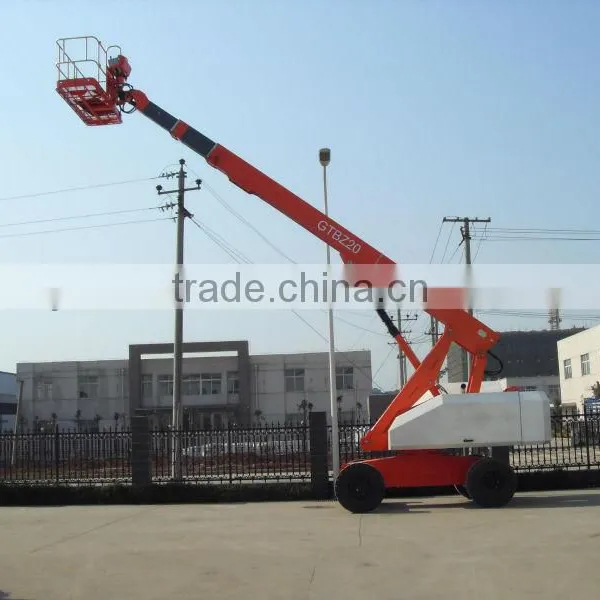

20 Meters Telescopic Boom Lift
Negotiable
/ Unit
1 Unit(Min.Order)
- 300 Unit / Units per Month
- T/T
You May Like
- China easy operated scissor lift platform, truck mounted platform scissor lift
- China low cost hydraulic elevating platform, truck mounted platform scissor lift
- 2015 hot sale double ladder stop type hydraulic scaffolding lift
- Big discount offered 8m lift self propelled hydraulic outdoor aerial work platform scissor lift
- China factory direct sale self propelled scissor lift table / hydraulic scissor lift
- China good working performance hydraulic scissor lift table, electric mini scissor lift
Product Details
Place of Origin: | Shanghai, China | Brand Name: | GP | Model Number: | GTZZ20 |
Lift Mechanism: | Articulated Lift | Lift Drive / Actuation: | Hydraulic | Rated Loading Capacity: | 340kgs |
Max. Lifting Height: | 22.6 meters | Table Size: | 1.45 m *0.85 m *1.24 m | Weight: | 11015kgs |
Certification: | ISO&CE | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
360 full direction operationmax.load capacity 340 kgs
Self-adaption floating device
Overload limit and rollover protection
Productivity | GTBZ20 | GTBZ22 |
Platform height max. | 20.6M (68ft) | 22.2M (73ft) |
Working height max. | 22.6M (74ft) | 24.2M (79ft) |
Horizontal reach max. | 17.3M (57ft) | 18.8M (62ft) |
Turntable rotation | 360°continuous | 360°continuous |
Platform rotation | 160° | 160° |
Platform Load capacity | 250kg (non-restricted) | 250kg (non-restricted) |
340kg (restricted) | ||
Grade ability | 40% (2WD) | 40% (2WD) |
45% (4WD) | 45% (4WD) | |
Turning radius(outside) | 4.97M (16.3ft) | 4.97M (16.3ft) |
Turning radius(inside) | 1.66 M (5.5ft) | 1.66 M (5.5ft) |
Turntable tailswing | 1.32M (4.3ft) | 1.32M (4.3ft) |
Max. Driving Speed | 6.3km/h | 6.3km/h |
Driving Speed (stowed) | 0~6.3km/h | 0~6.3km/h |
Driving Speed (extended) | 0~1.1km/h | 0~1.1km/h |
Max allowable wind force | 12.5m/s | 12.5m/s |
Max allowable slope | 3° | 3° |
Max noiseon normal use | 82dB(A) | 82dB(A) |
Max allowable side force | 400N | 400N |
Dimensions | GTBZ20 | GTBZ22 |
Overall length(stowed) | 9.18M (30ft) | 10.2M (33ft) |
Overall width(stowed) | 2.49M (8ft) | 2.49M (8ft) |
Overall height(stowed) | 2.8M (9ft) | 2.8M (9ft) |
Ground clearance | 0.31M (1ft) | 0.31M (1ft) |
Wheelbase | 2.49M (8.2ft) | 2.49M (8.2ft) |
Overall weight | 11015kg (2WD) | 11165kg (2WD) |
11085kg (4WD) | 11235kg (4WD) | |
Platform Size (L*W*H) | 1.83*0.76*1.1M(6ft *2.5ft *3.6ft) | 1.83*0.76*1.1M(6ft *2.5ft *3.6ft) |
Platform levelling | Automatic | Automatic |
Tire specification | 9.00-20 | 9.00-20 |
Tire type | Solid | Solid |
Hydraulic tank vol. | 170L | 170L |
Hydraulic system vol. (inc. the tank) | 270L | 270L |
Fuel tank vol. | 125L | 125L |
Control voltage | 24V | 24V |
Engine | Original CumminsB3.3 60hp | Original CumminsB3.3 60hp |
Drive & steer model | 2WD*2WS | 2WD*2WS |
Standard applied: EN280, AS1418 and JG/T5100 |
