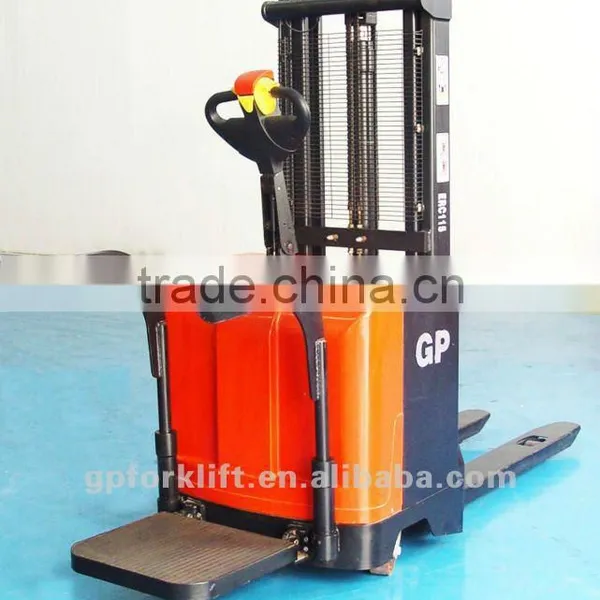

1.5 Ton Electric Power Stacker DC Power, Lifting height 3m, ERC115

Specifications

1.5 Ton Electric Power Stacker DC Power
1. Lifting height 3m
2. Low noise, no pollution
3.Curtis , Itaian ZAPI/SME cotroller

1.5 Ton Electric Power Stacker DC Power for materials handling, Lifting height 1.6m-4.5m,with nice design.



Advantge of electric stacker



1.Conforms To The Standards Of En1726-1:1999and En1175-1:1998

2.High Stability And Flexible Operation

3.Smooth stepless speed control from CURTIS

4.Low Noise, No Pollution, And High Reliability

5. Power unit and drive wheel made in Europe

6. Large Capacity Battery Makes The Stacker Work Longer

7.Top-Quality Control System - CURTIS from USA or ZAPI / SME from Italia



Specifications



FULL ELECTRIC STACKER				Model
Item	Specification		Unit	ERC112	ERC115	ERC116	ERC118	ERC120
1	General	Rated capacity	Kg	1200	1500	1600	1800	2000
2		Load center	mm	600	600	600	600	600
3		Drive type		Standed
4		Motor brake		Electromagnetic
5		Load distance (centerline of front axle to front face of forks)		716	716	716	716	716
6		Battery weight	Kg	200	200	200	280	280
7		Self weight	Kg	1080	1105	1130	1250	1280
8		Full Load per Axle - Driving side / bearing side		865/215	885/220	905/225	1000/250	1025/255
9		Empty Load per Axle - Driving side / bearing side	Kg	970/1310	1110/1495	1095/1635	1300/1750	1400/1880
10	Dimensions	Lifting Height (standard)	mm	3000
11		Fork min. ground clearance	mm	85
12		Adjust width of fork (standard)	mm	570
13		Fork size	mm	60/180/1150
14		Minimum ground clearance	mm	25
15		Overall length	mm	1940	1940	1940	1970	1970
16		Overall width	mm	850			1050
17		Overall height (including handle )	mm	1465	1465	1465	1465	1465
18		Bodywork height	mm	845	845	845	845	845
19		Overall height mast raised	mm	3530	3530	3530	3530	3530
20		Overall height mast lowered	mm	2055	2055	2055	2055	2055
21		Front wheel tread	mm	390	390	390	390	390
22		Supporting wheel tread	mm	708	708	708	800	800
23		Minimum turning radius	mm	1630	1630	1630	1630	1630
24		Stacking right angle aisle width	mm	2236	2236	2236	2270	2270
25	Perfor-mance	Max. driving speed full/empty	Km/h	5/6	5/6	5/6	5/5.8	5/5.5
26		Max. lifting speed full/empty	mm/s	110/130	95/130	90/130	80/120	80/120
27		Max. declining speed full/empty	mm/s	120/110	110/100	110/90	80/90	80/90
28		Grade ability full/empty	%	5/8	5/8	5/8	5/8	5/8
29	Wheel	Wheels material		Polyurethane
30		Wheel number (front/rear)		4/3
31		Drive wheel (mm)		φ252x87	φ252x87	φ252x87	φ252x87	φ252x87
32		Load wheel (mm)		φ80x70	φ80x70	φ80x70	φ80x70	φ80x70
33		Balance wheel (mm)		φ150x48	φ150x48	φ150x48	φ150x48	φ150x48
34		Wheelbase		1295	1295	1295	1295	1295
35	Power and Control	Travel motor	KW	1.2	1.2	1.2	1.2	1.2
36		Lift motor	KW	2.2	3	3	3	3
37		Voltage	V	24	24	24	24	24
38		Battery capacity	Ah	210	210	210	280	280
39		Control system		CURTIS / ZAPI / SME
40		Sound level at the driver's ear acc. to EN12053	dB/(A)	67
