Reach Stacker/test Machine

Reach Stacker/test Machine thumbnail-1
Reach Stacker/test Machine photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
GP
Contact Supplier Request Quote Chat Now
Shanghai Gather Power Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name GP
Model Number ERC115
Type Powered Pallet Truck
Power Souce DC Motor
Rated Loading Capacity 1500KG
Max. Lifting Height 3M
Min. Lifting Height 0M
Fork Length 1150mm
Fork Width 180mm

Specifications

1.High Stability And Flexible Operation
2.Certificate:CE&ISO&OHSAS18001:1999
3.CURTIS electronic controller

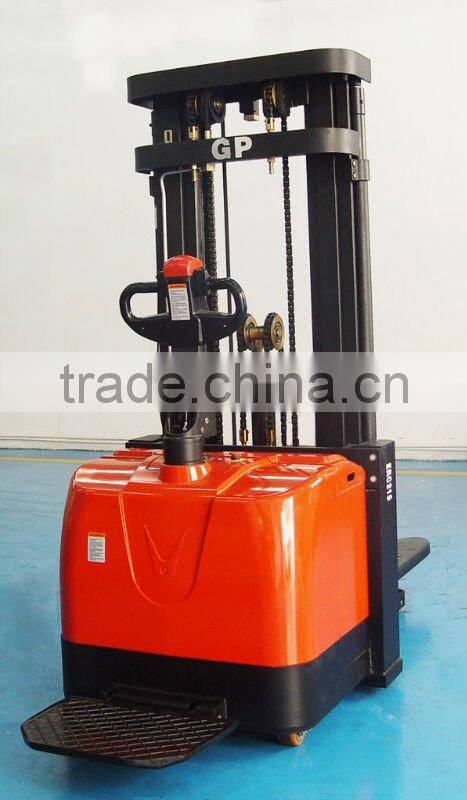

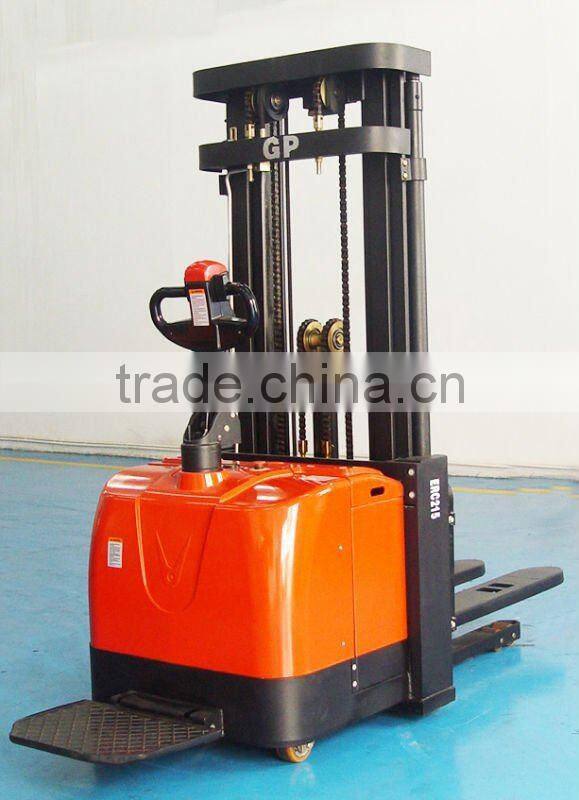

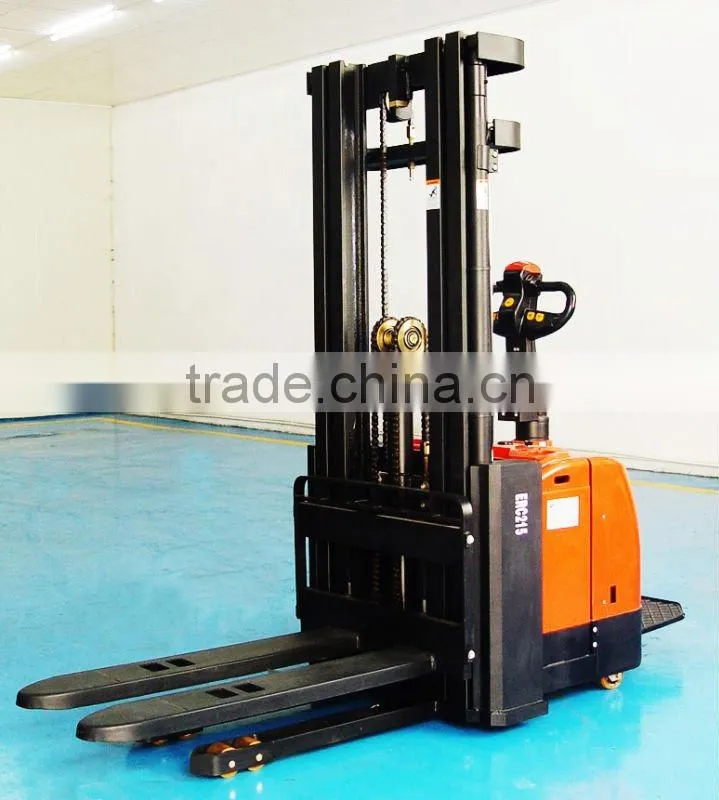

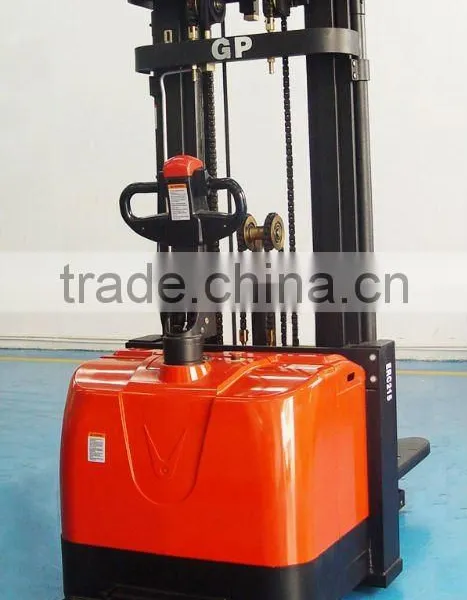

FULL ELECTRIC STACKER
Item   Specification Unit ERC112 ERC115 ERC116 ERC118 ERC120
1 General Rated capacity Kg 1200 1500 1600 1800 2000
2 Load center mm 600 600 600 600 600
3 Drive type   Standed
4 Motor brake   Electromagnetic
5 Load distance (centerline of front axle to front face of forks)   716 716 716 716 716
6 Battery weight Kg 200 200 200 280 280
7 Self weight Kg 1080 1105 1130 1250 1280
8 Full Load per Axle - Driving side / bearing side   865/215 885/220 905/225 1000/250 1025/255
9 Empty Load per Axle - Driving side / bearing side Kg 970/1310 1110/1495 1095/1635 1300/1750 1400/1880
10 Dimensions Lifting Height (standard) mm 3000
11 Fork min. ground clearance mm 85
12 Adjust width of fork (standard) mm 570
13 Fork size mm 60/180/1150
14 Minimum ground clearance mm 25
15 Overall length mm 1940 1940 1940 1970 1970
16 Overall width mm 850 1050
17 Overall height (including handle ) mm 1465 1465 1465 1465 1465
18 Bodywork height mm 845 845 845 845 845
19 Overall height mast raised mm 3530 3530 3530 3530 3530
20 Overall height mast lowered mm 2055 2055 2055 2055 2055
  Front wheel tread mm 390 390 390 390 390
  Supporting wheel tread mm 708 708 708 800 800
21 Minimum turning radius mm 1630 1630 1630 1630 1630
22 Stacking right angle aisle width mm 2236 2236 2236 2270 2270
23 Performance Max. driving speed full/empty Km/h 5/6 5/6 5/6 5/5.8 5/5.5
24 Max. lifting speed full/empty mm/s 110/130 95/130 90/130 80/120 80/120
25 Max. declining speed full/empty mm/s 120/110 110/100 110/90 80/90 80/90
26 Grade ability full/empty % 5/8 5/8 5/8 5/8 5/8
27 Wheel Wheels material   Polyurethane
28 Wheel number (front/rear)   4/3
29 Drive wheel (mm)   φ252x87 φ252x87 φ252x87 φ252x87 φ252x87
30 Load wheel (mm)   φ80x70 φ80x70 φ80x70 φ80x70 φ80x70
31 Balance wheel (mm)   φ150x48 φ150x48 φ150x48 φ150x48 φ150x48
32 Wheelbase   1295 1295 1295 1295 1295
33 Power and Control Travel motor KW 1.2 1.2 1.2 1.2 1.2
34 Lift motor KW 2.2 3 3 3 3
35 Voltage V 24 24 24 24 24
36 Battery capacity Ah 210 210 210 280 280
37 Control system   CURTIS
  Other Sound level at the driver's ear acc. to EN12053 dB/(A) 67
*——J Walkie; R Standed; S Seated
reach stacker/test machinereach stacker/test machinereach stacker/test machine
