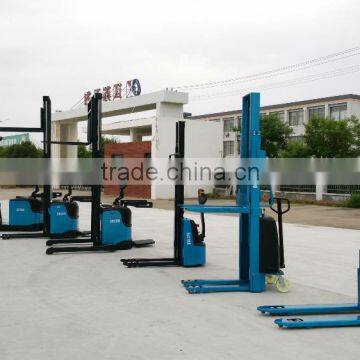

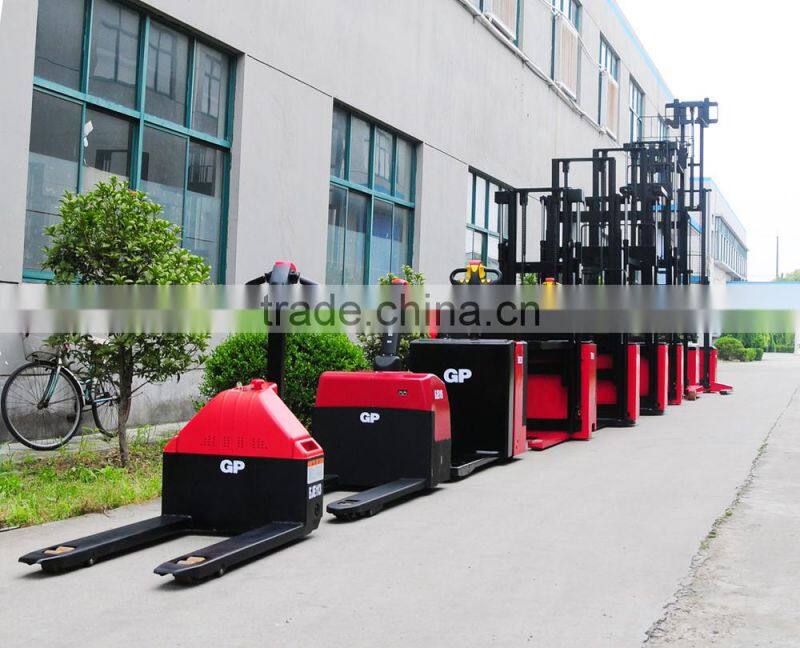

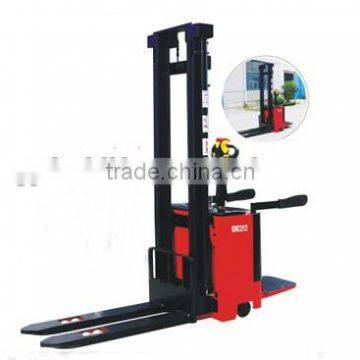

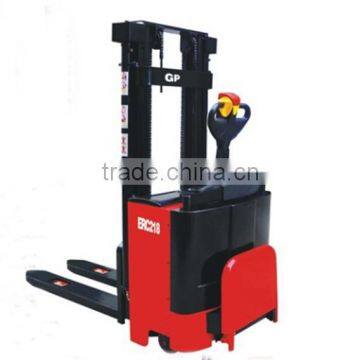

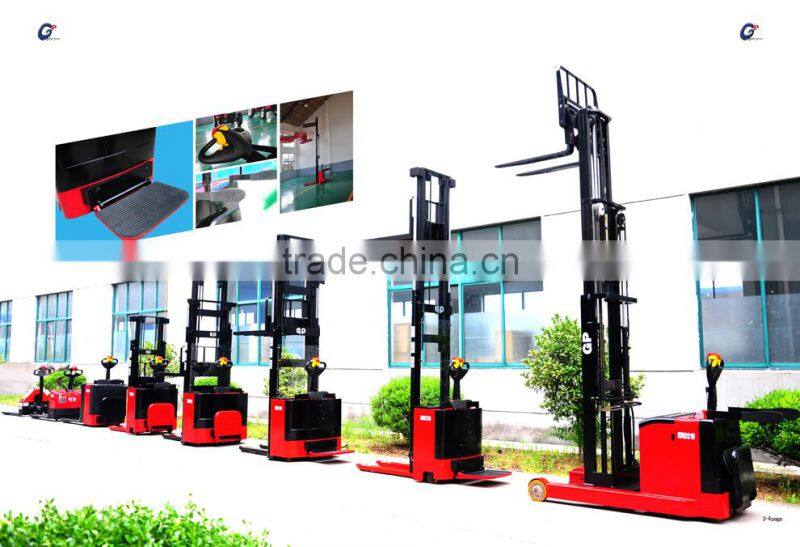

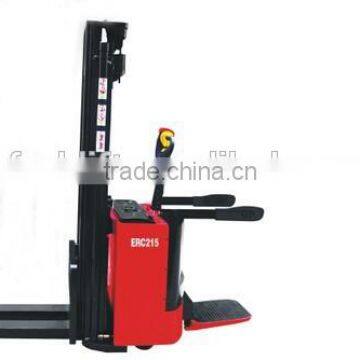

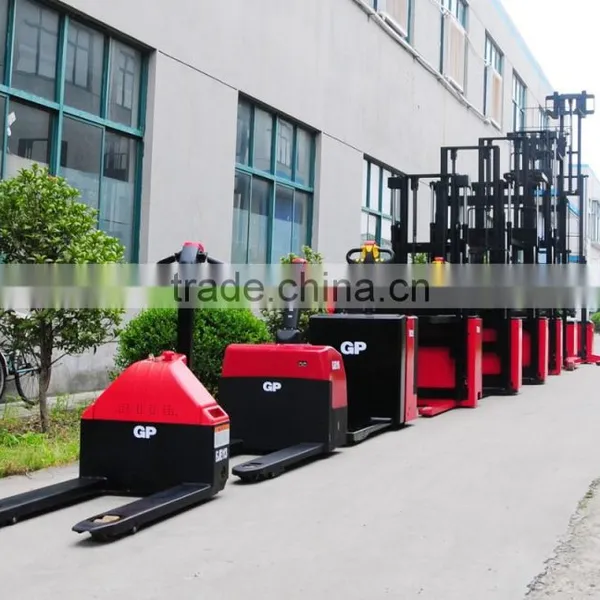

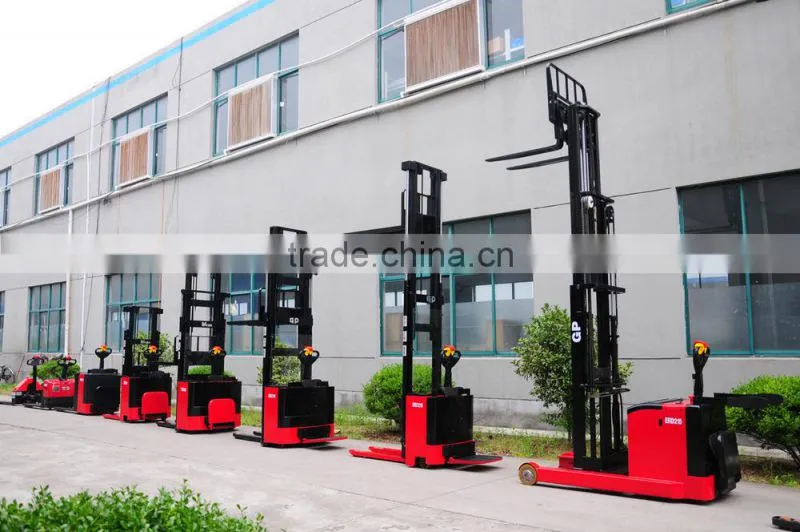

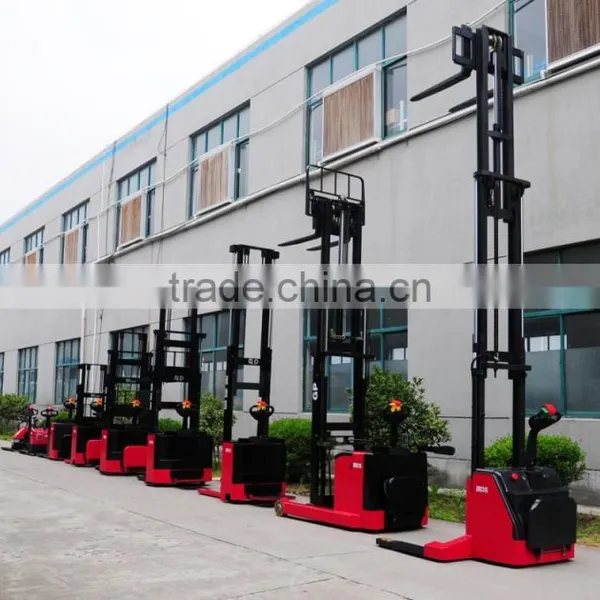

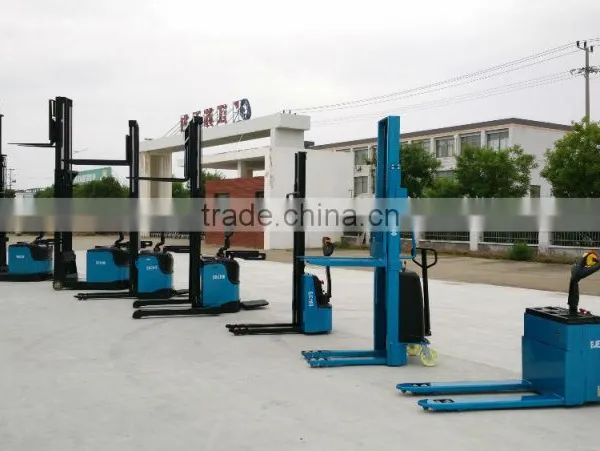

1.2-2.0T Full Electric Stacker(AC/DC Power)
Negotiable
/ Unit
1 Unit(Min.Order)
- 5000 Unit / Units per Month
- Shanghai
- T/T
You May Like
-
BENE 45 ton reach stacker 45ton container lift truck with Cummins VOLVO engine DANA transmission
-
45ton Container reach stacker provider vs Linde Hyster 45ton container stacker price
-
Chinese 40ton forklift BENE 40 ton container tippler for 20ft container loading and unloading material
-
Fanuc robot M-20iA range 1811mm load 20kg cutting manipulator intelligent sorting machine
-
Chinese BENE 40ton to 42ton fork loader for 24ft container lifting 42ton container tippler
-
Chinese container reach stacker manufacturer vs Sany 45ton container lift truck Hyster 45 ton container stacker price
Product Details
| Brand Name: | GP | Model Number: | ERC | Certification: | CE, ISO9001 & UL,SGS |
| Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Advantage:
Configuration and Performance
l Electronic power steering system,light and low noise.
l Two-way magnetic valve,three drop speed mode.
l Drive unit floating bodies with patent design.
l AC driving system,no carbon brush,maintenance free.
l USA CURTIS controller
l Electromagnetic ,regenerative braking system.
l Automatic lifting limit,proximity switch,long life.
Safety
l Curve automatic deceleration devices,more safe.
l Stepless speed control system,safe and quiet.
l Controller with multiple automatic protection.
l Emergency reversing device /Emergency brake switch.
l Options of high position automatic reduction device.
| FULL ELECTRIC STACKER | Model | |||||||
| Item | Specification | Unit | ERC112 | ERC115 | ERC116 | ERC118 | ERC120 | |
| 1 | General | Rated capacity | Kg | 1200 | 1500 | 1600 | 1800 | 2000 |
| 2 | Load center | mm | 600 | 600 | 600 | 600 | 600 | |
| 3 | Drive type | Standed | ||||||
| 4 | Motor brake | Electromagnetic | ||||||
| 5 | Load distance (centerline of front axle to front face of forks) | 716 | 716 | 716 | 716 | 716 | ||
| 6 | Battery weight | Kg | 200 | 200 | 200 | 280 | 280 | |
| 7 | Self weight | Kg | 1080 | 1105 | 1130 | 1250 | 1280 | |
| 8 | Full Load per Axle - Driving side / bearing side | 865/215 | 885/220 | 905/225 | 1000/250 | 1025/255 | ||
| 9 | Empty Load per Axle - Driving side / bearing side | Kg | 970/1310 | 1110/1495 | 1095/1635 | 1300/1750 | 1400/1880 | |
| 10 | Dimensions | Lifting Height (standard) | mm | 3000 | ||||
| 11 | Fork min. ground clearance | mm | 85 | |||||
| 12 | Adjust width of fork (standard) | mm | 570 | |||||
| 13 | Fork size | mm | 60/180/1150 | |||||
| 14 | Minimum ground clearance | mm | 25 | |||||
| 15 | Overall length | mm | 1940 | 1940 | 1940 | 1970 | 1970 | |
| 16 | Overall width | mm | 850 | 1050 | ||||
| 17 | Overall height (including handle ) | mm | 1465 | 1465 | 1465 | 1465 | 1465 | |
| 18 | Bodywork height | mm | 845 | 845 | 845 | 845 | 845 | |
| 19 | Overall height mast raised | mm | 3530 | 3530 | 3530 | 3530 | 3530 | |
| 20 | Overall height mast lowered | mm | 2055 | 2055 | 2055 | 2055 | 2055 | |
| 21 | Front wheel tread | mm | 390 | 390 | 390 | 390 | 390 | |
| 22 | Supporting wheel tread | mm | 708 | 708 | 708 | 800 | 800 | |
| 23 | Minimum turning radius | mm | 1630 | 1630 | 1630 | 1630 | 1630 | |
| 24 | Stacking right angle aisle width | mm | 2236 | 2236 | 2236 | 2270 | 2270 | |
| 25 | Performance | Max. driving speed full/empty | Km/h | 5/6 | 5/6 | 5/6 | 5/5.8 | 5/5.5 |
| 26 | Max. lifting speed full/empty | mm/s | 110/130 | 95/130 | 90/130 | 80/120 | 80/120 | |
| 27 | Max. declining speed full/empty | mm/s | 120/110 | 110/100 | 110/90 | 80/90 | 80/90 | |
| 28 | Grade ability full/empty | % | 5/8 | 5/8 | 5/8 | 5/8 | 5/8 | |
| 29 | Wheel | Wheels material | Polyurethane | |||||
| 30 | Wheel number (front/rear) | 4/3 | ||||||
| 31 | Drive wheel (mm) | φ252x87 | φ252x87 | φ252x87 | φ252x87 | φ252x87 | ||
| 32 | Load wheel (mm) | φ80x70 | φ80x70 | φ80x70 | φ80x70 | φ80x70 | ||
| 33 | Balance wheel (mm) | φ150x48 | φ150x48 | φ150x48 | φ150x48 | φ150x48 | ||
| 34 | Wheelbase | 1295 | 1295 | 1295 | 1295 | 1295 | ||
| 35 | Power and Control | Travel motor | KW | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| 36 | Lift motor | KW | 2.2 | 3 | 3 | 3 | 3 | |
| 37 | Voltage | V | 24 | 24 | 24 | 24 | 24 | |
| 38 | Battery capacity | Ah | 210 | 210 | 210 | 280 | 280 | |
| 39 | Control system | CURTIS / ZAPI / SME | ||||||
| 40 | Sound level at the driver's ear acc. to EN12053 | dB/(A) | 67 | |||||
