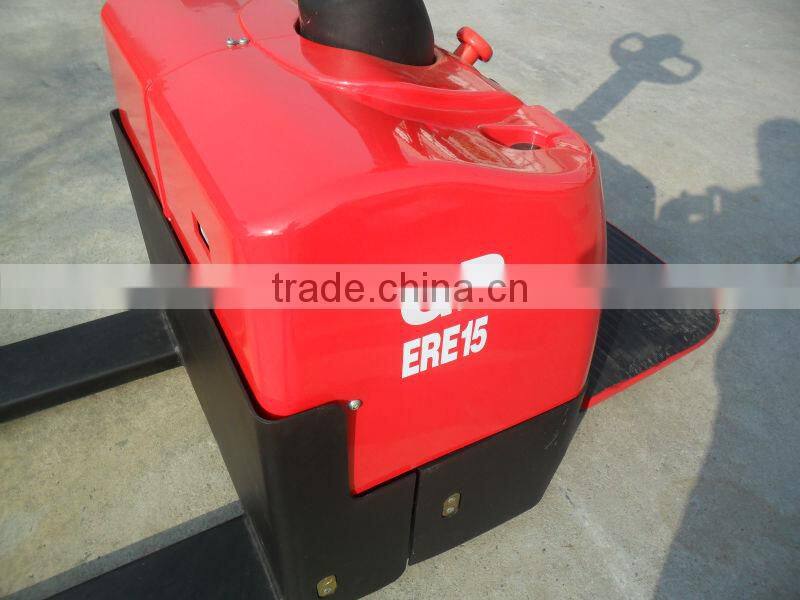

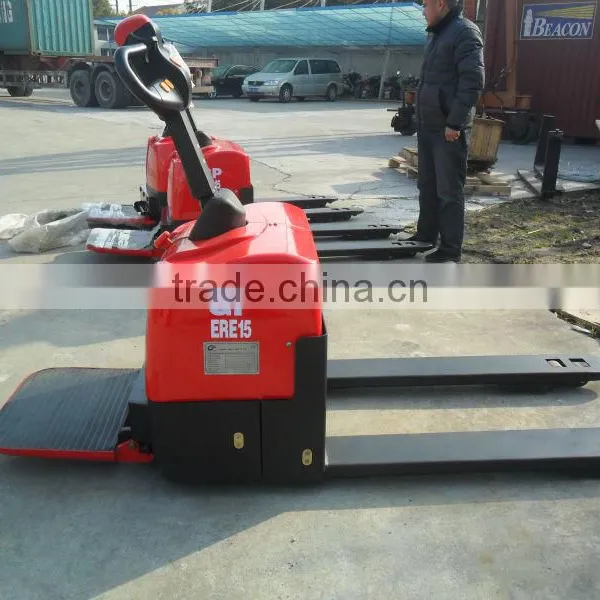

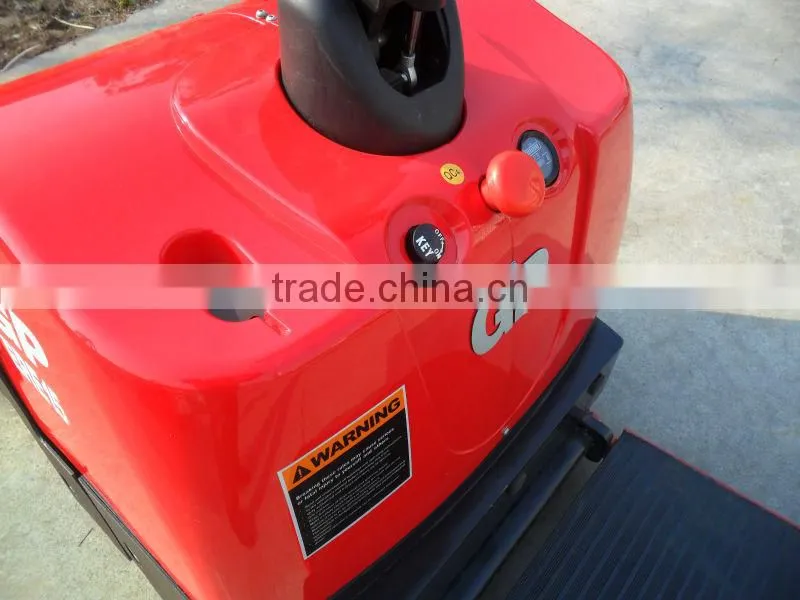

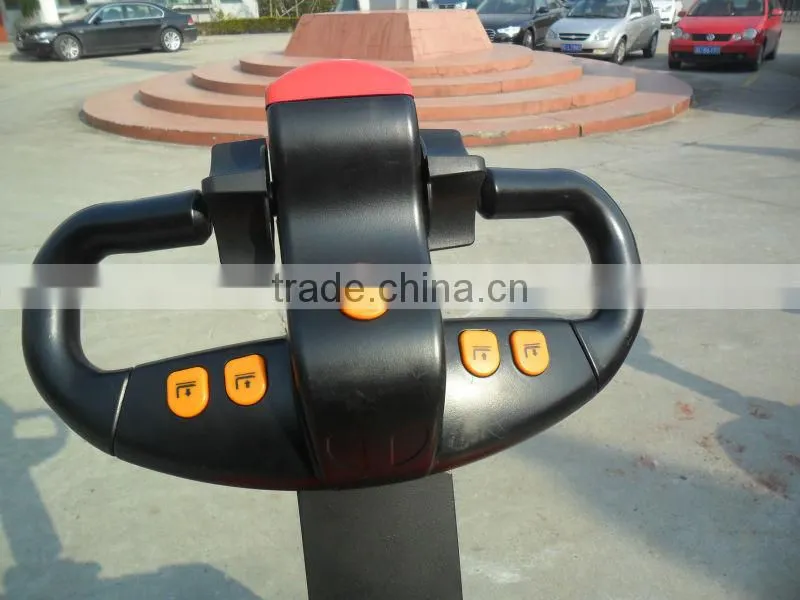

Electric Pallet Truck 1.5 T

Electric Pallet Truck 1.5 T thumbnail-1
Electric Pallet Truck 1.5 T photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
GP
Contact Supplier Request Quote Chat Now
Shanghai Gather Power Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name GP
Model Number ERE15
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 1500KG
Max. Lifting Height 120MM
Min. Lifting Height 85MM
Fork Length 1220MM
Fork Width 160MM
Overall Dimensions 47/160/1220
Certification CE&SGS
After-sales Service Provided Overseas service center available

Specifications

1.Improted hydralic pump station,
pact structure,
lid carriage,large capacity battery



1.Improted hydralic pump station,
pact structure,
lid carriage,large capacity battery

FULL ELECTRIC PALLET TRUCK Model
Item Specification Unit ERE15 ERE20 ERE22 ERE25
1 Rated capacity Kg 1500 2000 2200 2500
2 Load center mm 600 600 600 600
3 Drive type   Standed
4 Motor brake   Electromagnetic
5 Load distance (centerline of front axle to front face of forks) mm 963/1054 963/1033 963/1033 957
6 Battery weight Kg 48 185 185 280
7 Self weight (with battery) Kg 286 520 515 970
8 Full Load per Axle - Driving side / bearing side Kg 675/1115 1040/1480 1085/1630 162/1850
9 Empty Load per Axle - Driving side / bearing side Kg 230/60 405/115 400/115 780/200
10 Lifting Height (standard) mm 120 120 120 130
11 Fork min. ground clearance mm 85 85 85 85
12 Adjust width of fork (standard) mm 520/650 540/685 540/685 560
13 Fork size mm 47/160/1220 60/160/1150 60/160/1150 60/160/1150
14 Minimum ground clearance mm 24 25 25 25
15 Overall length mm 1660 1815/1885 1815/1885 2025
16 Overall width mm 700 726 726 796
17 Overall height (including handle ) mm 1235 1323 1323 1290
18 Bodywork height mm 677 745 745 1196
19 Wheel tread (front/rear) mm 490/490 540/380 540/380 441/380
20 Supporting wheel tread mm 1310 1368 1368 1515
21 Minimum turning radius mm 1976 1640 1640/1710 1865
22 Stacking right angle aisle width (1200mm pallet) mm 1976 2105 2105 2255
23 Max. driving speed (full) Km/h 5 5 5.8 8.7
24 Max. driving speed (empty) Km/h 5.2 5.2 6 9
25 Max. lifting speed (full) mm/s 27 27 19 33.7
26 Max. lifting speed (empty) mm/s 35 35 38 45
27 Max. declining speed (full) mm/s 42 42 30 35.7
28 Max. declining speed (empty) mm/s 27 27 27 18.7
29 Gradeability full/empty % 5/8 10/16 9/15 6.9/14
30 Steering angle ° 205 180 180 180
31 Sound level at the driver's ear dB(A) less70 less70 less70 less70
32 Wheels material   Polyurethane
33 Wheel number (front/rear)   4/3
34 Drive wheel (mm) mm φ252X89 φ230X75 φ230X75 φ254X82
35 Load wheel (mm) mm φ74X70 φ74X70 φ84X70 φ84X70
36 Balance wheel (mm) mm φ100X40 φ100X40 φ100X40 φ149X55
37 Travel motor KW 0.8 1.5 1.5 2.2
38 Lift motor KW 0.6 0.8 0.8 2.2
39 Voltage V 2X12 24 24 24
40 Battery capacity Ah 80 210 210 360
41 Power   Electric

Electric Pallet Truck 1.5 TElectric Pallet Truck 1.5 TElectric Pallet Truck 1.5 T
